Xerox WorkCentre 7132

January 2007
4-167
WorkCentre 7132
REP 16.6.1
Repairs/Adjustments
Reversion 4.0
Figure 2 Removing the arm
4. Remove the Decurler Roll Assembly. (Figure 3)
1. Remove the spring.
2. Remove the E-Clip.
3. Remove the arm.
4. Remove the Decurler Roll Assembly.

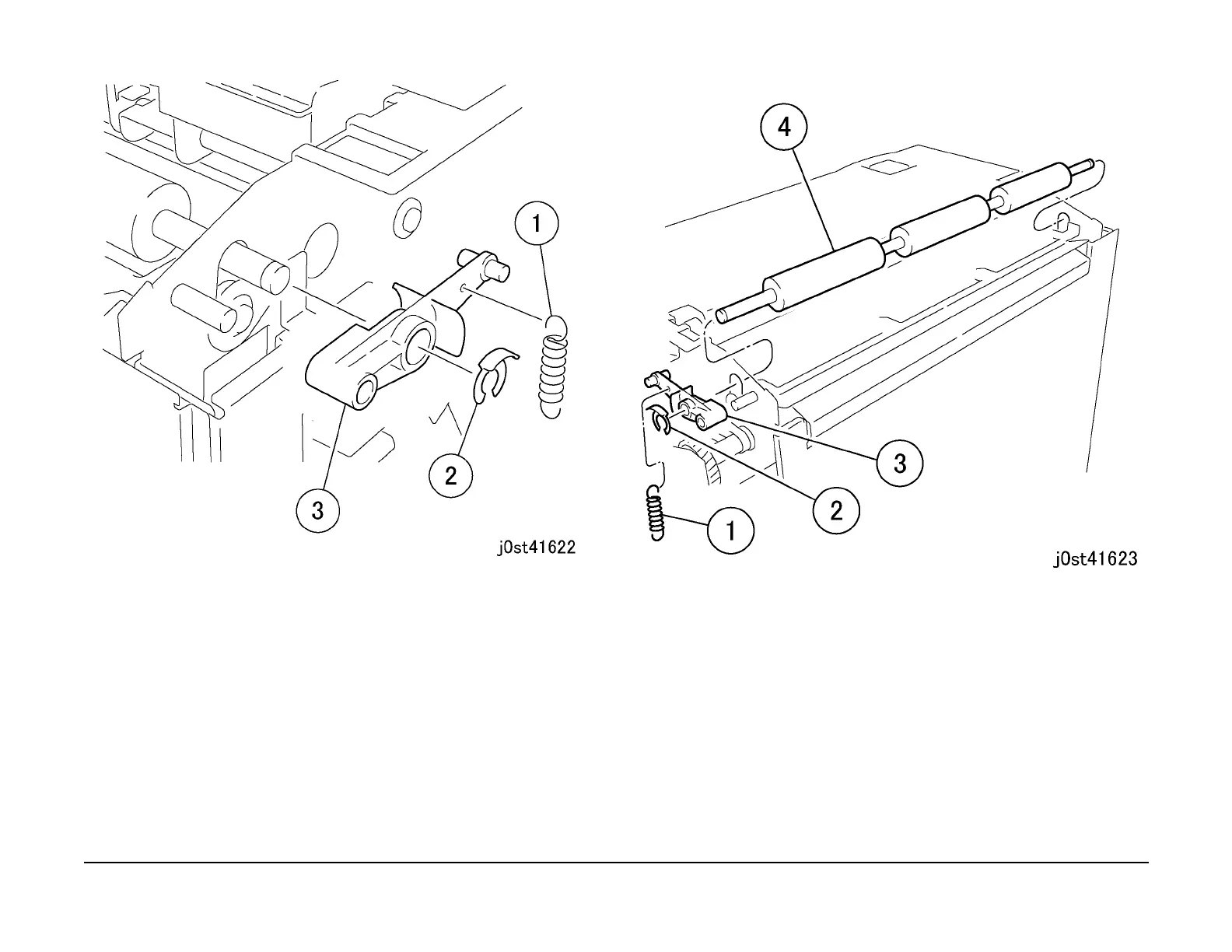

Figure 3 Removing the Decurler Roll Assembly
