January 2007
5-71
WorkCentre 7132
PL 16.8
Parts-list
Reversion 4.0

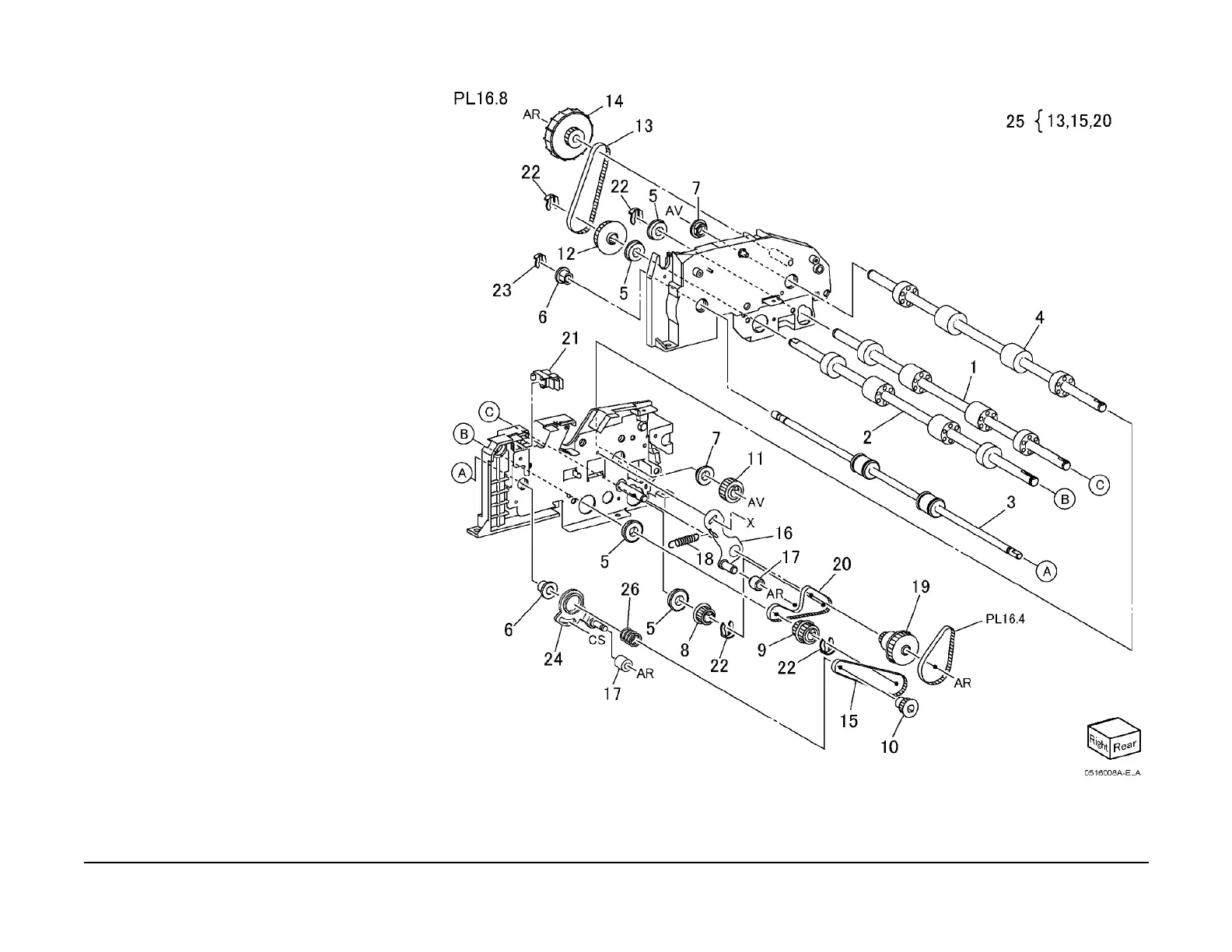

PL 16.8 DADF Feeder-Roll
Item Part Description
1 – Registration Roll (P/O PL 16.4 Item
5) (REP 15.8.1)
2 – Out Roll (P/O PL 16.4 Item 5)
3 – Exit Roll (P/O PL 16.4 Item 5)
4 – Takeaway Roll (P/O PL 16.4 Item 5)
5 – Ball Bearing (P/O PL 16.4 Item 5)
6 – Exit Bearing (P/O PL 16.4 Item 5)
7 – Bearing (P/O PL 16.4 Item 5)
8 – Pulley (Registration) (P/O PL 16.4
Item 5)
9 – Pulley (Out) (P/O PL 16.4 Item 5)
10 – Pulley (Exit) (P/O PL 16.4 Item 5)
11 – Gear (Takeaway) (P/O PL 16.4 Item
5)
12 – Flange Pulley (P/O PL 16.4 Item 5)
13 – Belt (P/O PL 16.4 Item 5)
14 – Handle Pulley (P/O PL 16.4 Item 5)
15 – Belt (P/O PL 16.4 Item 5)
16 – Tension Bracket (P/O PL 16.4 Item
5)
17 – Tension Roller (P/O PL 16.4 Item 5)
18 809E50762 Tension Spring
19 – Idler Pulley (P/O PL 16.4 Item 5)
20 023E25640 Belt
21 930W00111 DADF Document Set Sensor
22 – KL-Clip (P/O PL 16.4 Item 5)
23 028E94260 KL-Clip
24 – Tension Bracket (P/O PL 16.4 Item
5)
25 604K20780 DADF Belt Kit
26 – Exit Spring (P/O PL 16.4 Item 5)
