WorkCentre 7132
PL 14.7
Reversion 4.0
Parts-list

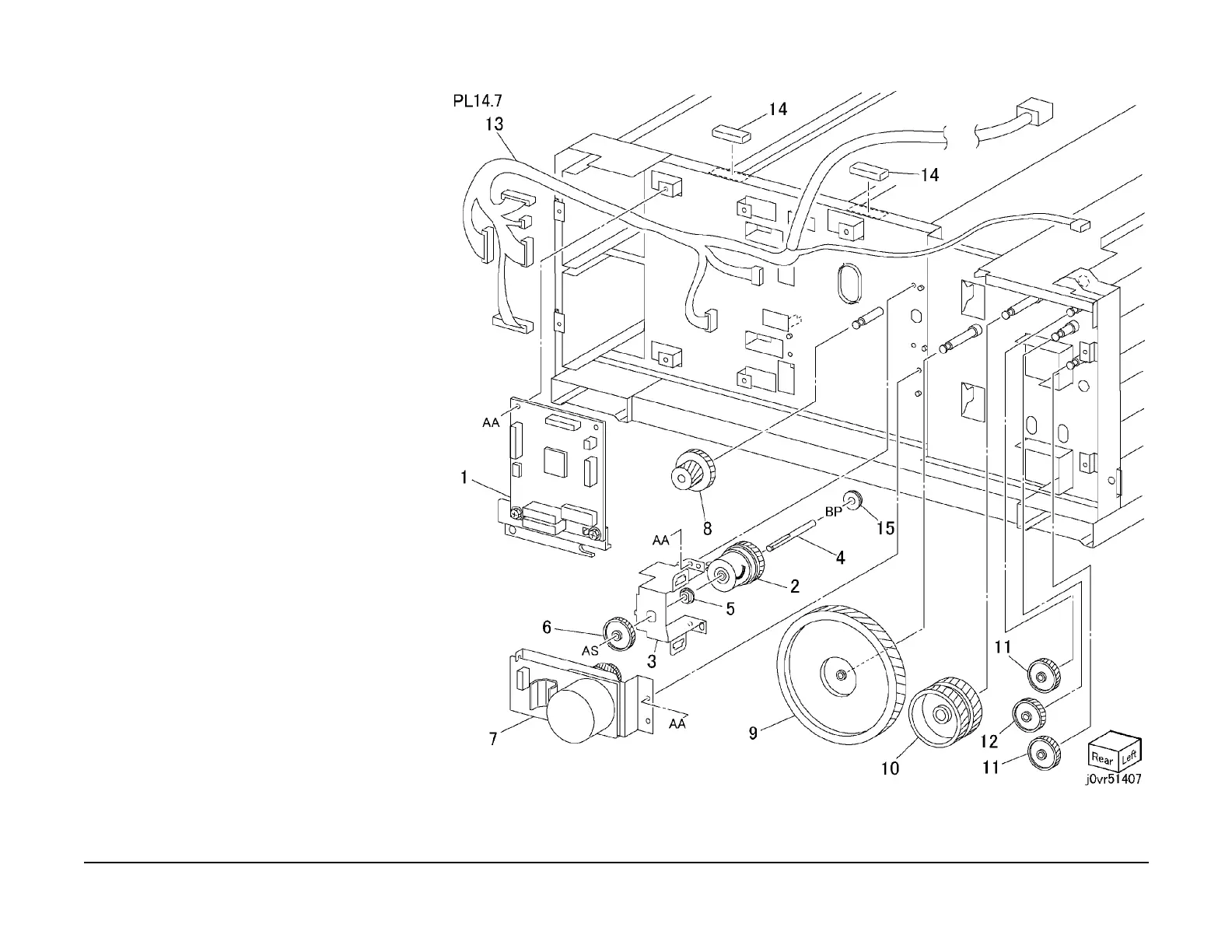

PL 14.7 Electrical-2TM
Item Part Description
1 960K16565 2Tray Module PWB (REP 12.6.1)
2 121K31530 Clutch
3 – Clutch Bracket (Not Spared)
4 – Clutch Shaft (Not Spared)
5 – Bearing (Not Spared)
6 – Gear (38T) (Not Spared)
7 007K93900 Takeaway Motor
8 – Gear (22T/40T) (Not Spared)
9 – Gear (126T) (Not Spared)
10 – Gear (60T) (Not Spared)
11 – Gear (37T) (Not Spared)
12 – Gear (32T) (Not Spared)
13 962K37330 SLC Harness
14 – Gasket (Not Spared)
15 604K20720 Bearing Kit
