Xerox WorkCentre 7132

January 2007
5-17
WorkCentre 7132
PL 4.1
Parts-list
Reversion 4.0

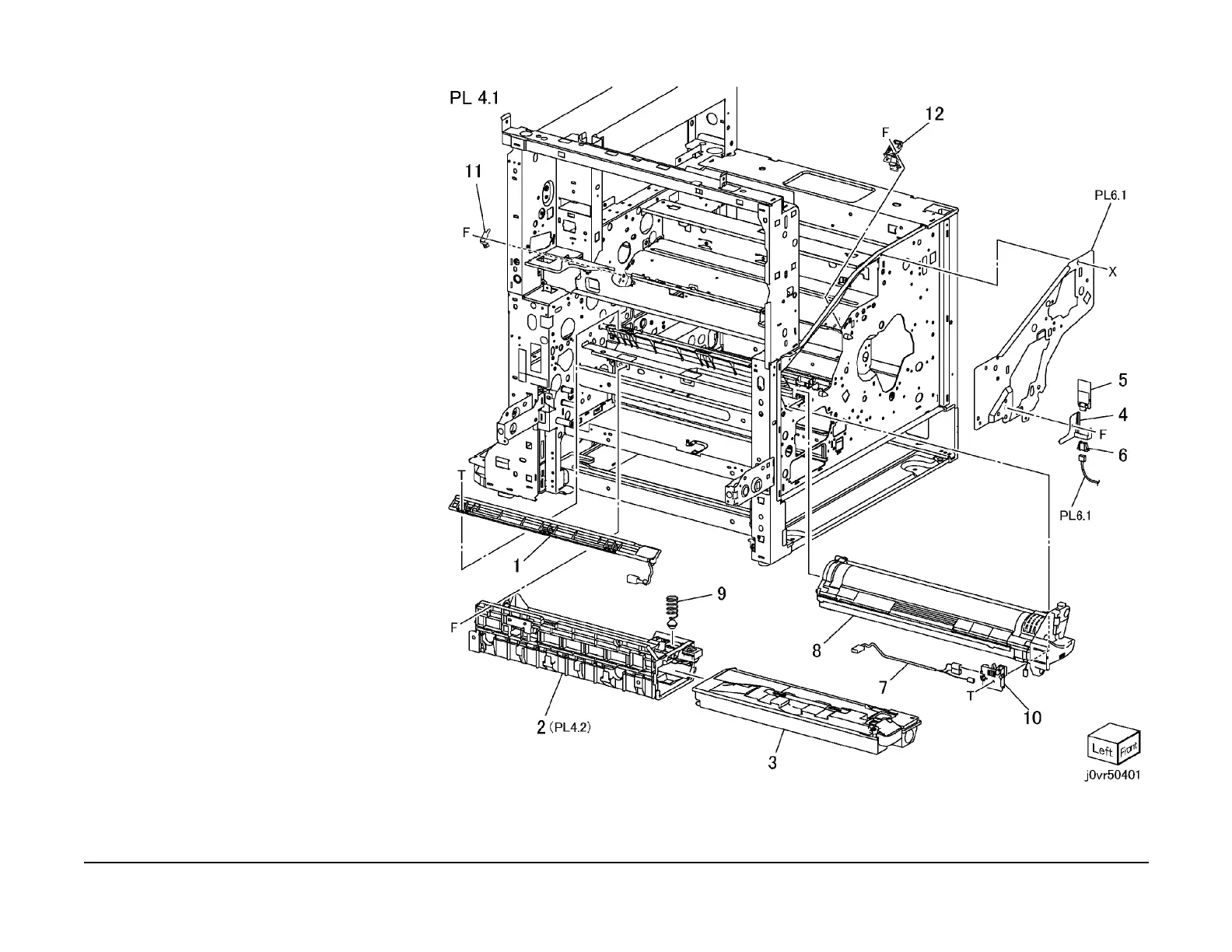

PL 4.1 Drum Assembly, Waste Bottle
Assembly
Item Part Description
1 122K93890 Lamp, Erase Assembly
2 032K98501 Waste Bottle Guide Assembly
3 – Waste Toner Bottle (Not Spared)
4 – Holder PWB Crum (Not Spared)
5 160K95831 Xero Crum PWB (CP1)
6 – Connector (Not Spared)
7 962K36820 Harness
8 – Xerographic Drum Module (Not
Spared) (REP 4.2.3)
9 – Spiral Paddle (Not Spared)
10 110K13041 Xero Interlock Switch
11 – Plate (Not Spared)
12 – Support (Not Spared)
