Xerox WorkCentre 7132 Service Documentation

January 2007
5-80
WorkCentre 7132
PL 17.7
Reversion 4.0
Parts-list

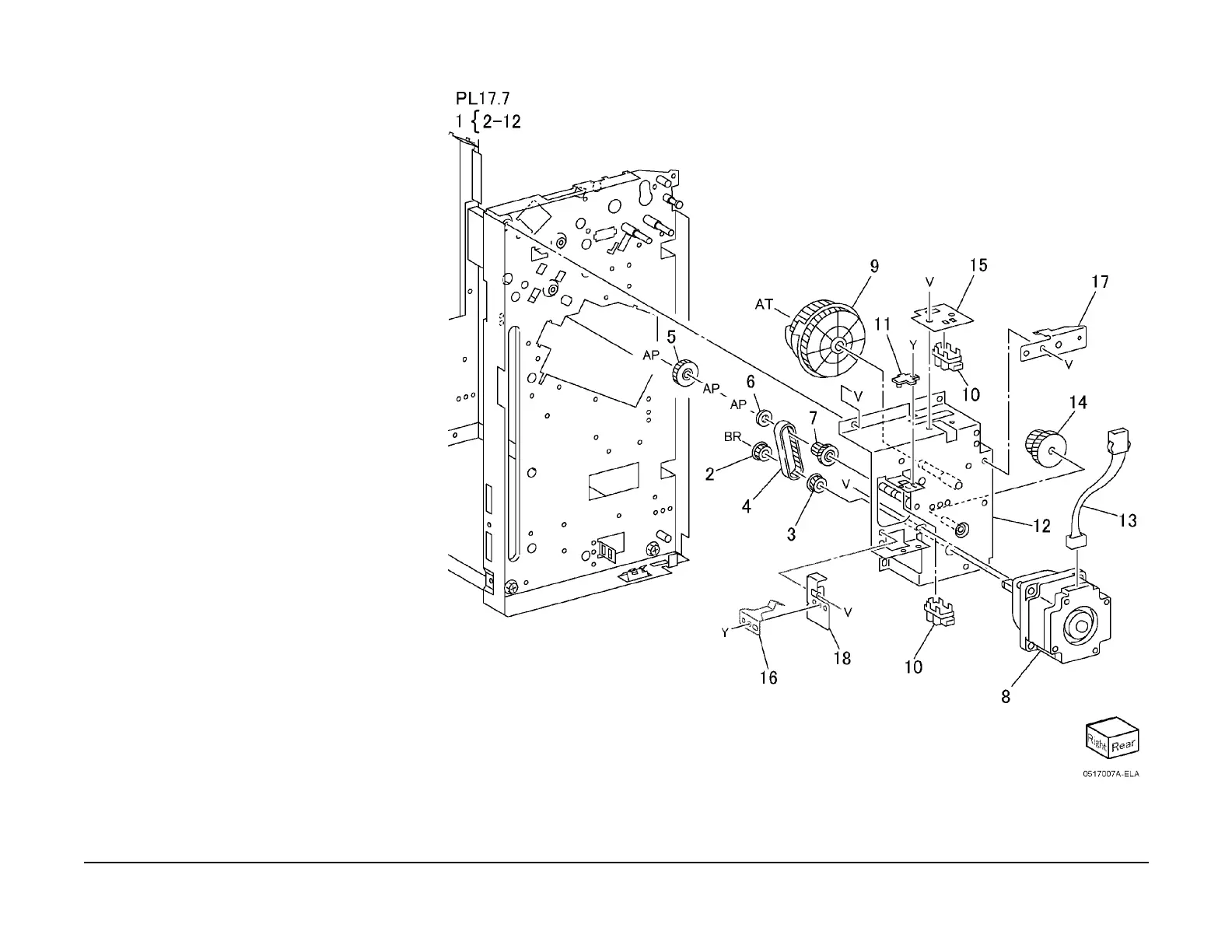

PL 17.7 Paper Transport (2 of 2)
Item Part Description
1 068K49000 Cam Bracket Assembly
2 020E34970 Pulley
3 – Gear (15T) (P/O PL 17.7 Item 1)
4 – Paper Eject Belt (P/O PL 17.6 Item
14) (REP 16.7.1)
5 – Gear (30T) (P/O PL 17.7 Item 1)
6 – Collar (P/O PL 17.7 Item 1)
7 – Gear Pulley (P/O PL 17.7 Item 1)
8 127K39930 Eject Motor
9 007E67800 Cam Gear
10 130K88780 Set Clamp Home Sensor, Eject
Clamp Home Sensor
11 – Stopper (P/O PL 17.7 Item 1)
12 – Bracket (P/O PL 17.7 Item 1)
13 962K45980 Wire Harness
14 – Gear (42/27T) (Not Spared)
15 – Plate (Not Spared)
16 – Spring (Not Spared)
17 – Bracket (Not Spared)
18 – Bracket (Not Spared)
