WorkCentre 7132
PL 15.9
Reversion 4.0
Parts-list

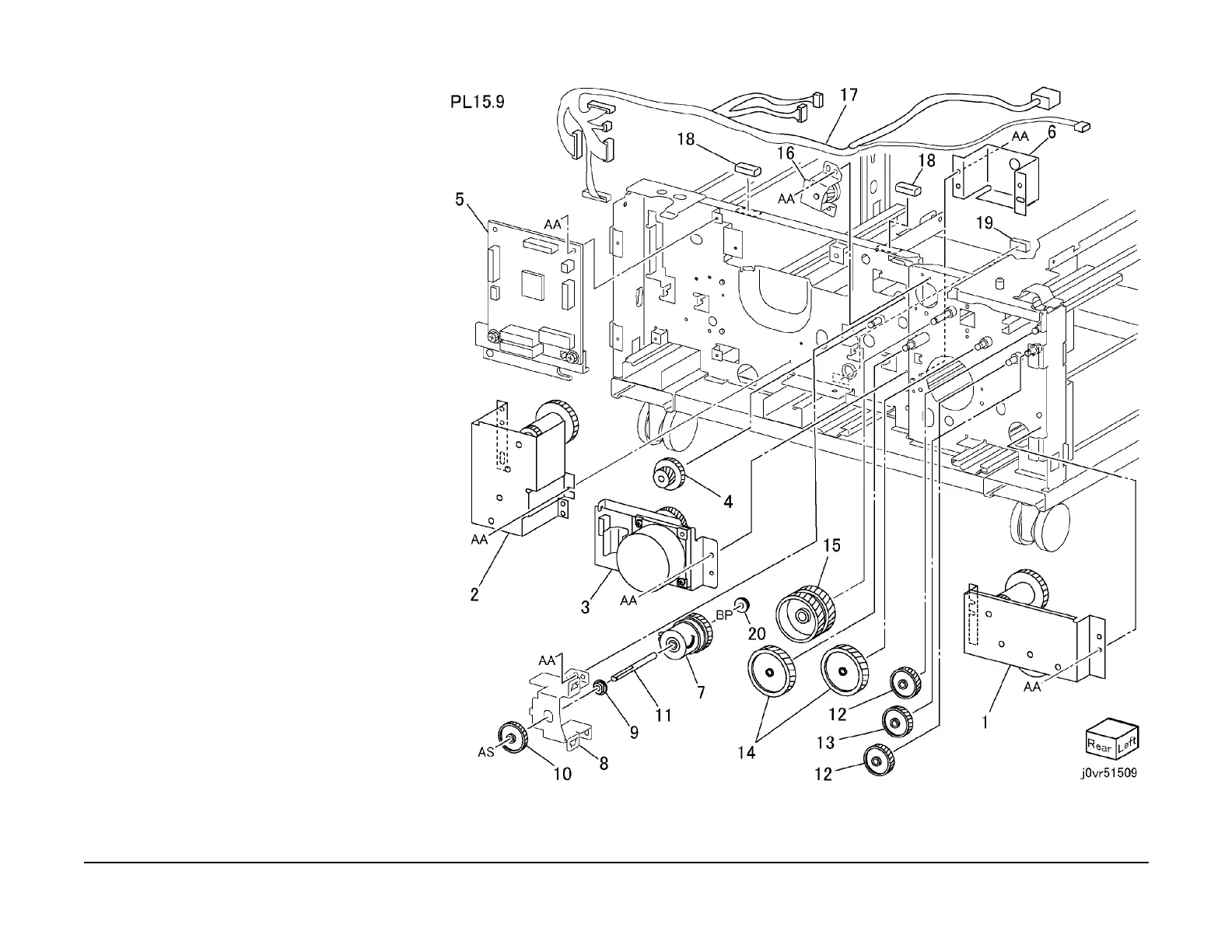

PL 15.9 Electrical-TTM
Item Part Description
1 – Gear Bracket (Not Spared)
2 – Gear Bracket (Not Spared)
3 007K93900 Takeaway Motor
4 – Gear (22T/40T) (Not Spared)
5 960K16565 Tray Module PWB
6 – Gear Bracket Cover (Not Spared)
7 121K31530 Clutch
8 – Clutch Bracket (Not Spared)
9 – Bearing (Not Spared)
10 – Gear (38T) (Not Spared)
11 – Shaft (Not Spared)
12 – Gear (37T) (Not Spared)
13 – Gear (32T) (Not Spared)
14 – Gear (60T) (Not Spared)
15 – Gear (60T) (Not Spared)
16 – Transport Bracket (Not Spared)
17 962K37340 TTM Harness
18 – Gasket (Not Spared)
19 – Gasket (Not Spared)
20 – Bearing (Not Spared)
