January 2007
4-184
WorkCentre 7132
REP 16.11.1, REP 16.12.1
Reversion 4.0
Repairs/Adjustments

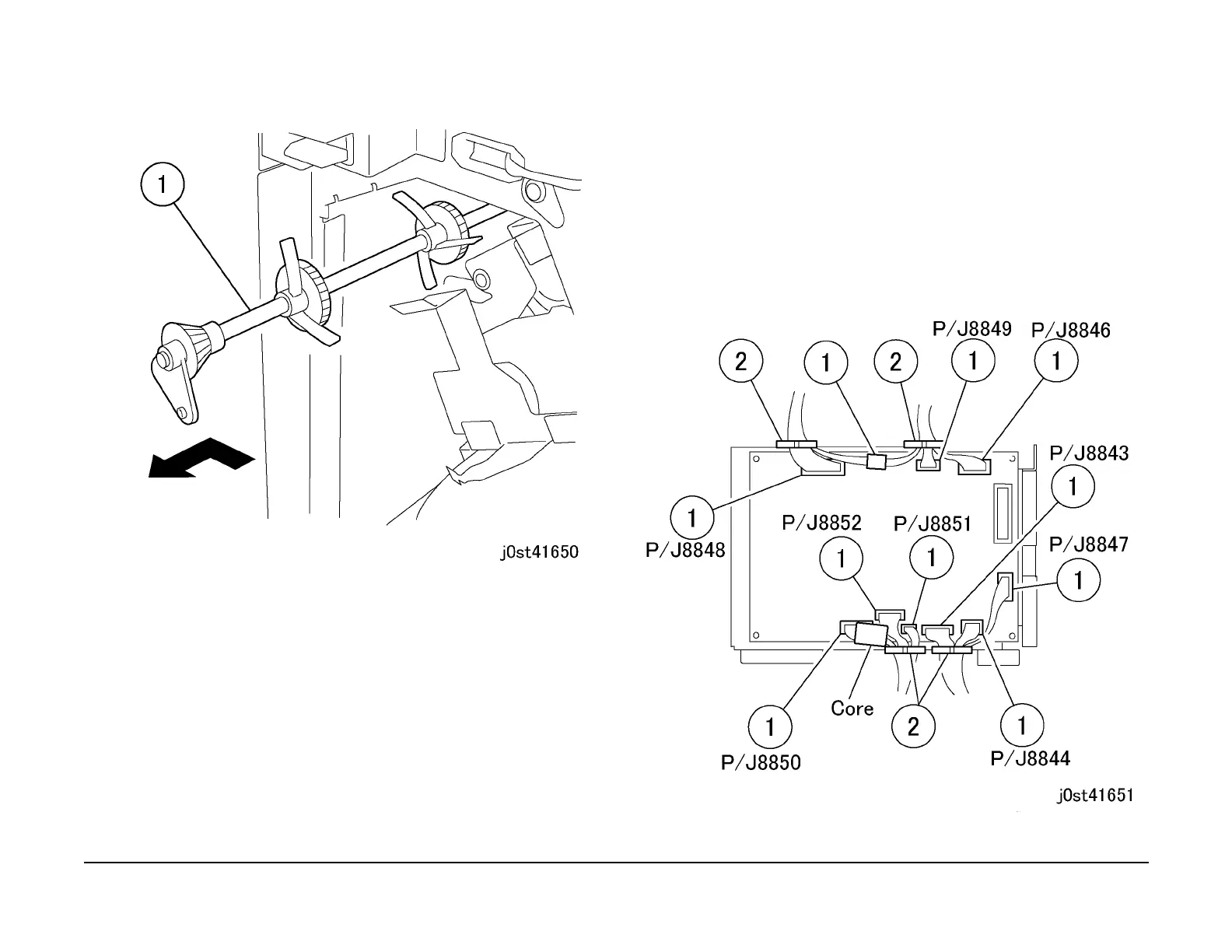

Figure 3 Removing the Paddle Gear Shaft
REP 16.12.1 Finisher PWB
Parts List on PL 17.12
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Remove the Rear Cover. (REP 16.4.1)
2. Disconnect the connectors. (Figure 1)
1. Disconnect the connectors (x10).
2. Release the Edge Saddles (x4) to remove the wire.
Figure 1 Disconnecting the connectors
To Next Page
