January 2007
7-63
WorkCentre 7132
7.3.25 Wire Net +24VDC-4
Wiring-data
Reversion 4.0
7.3.25 Wire Net +24VDC-4

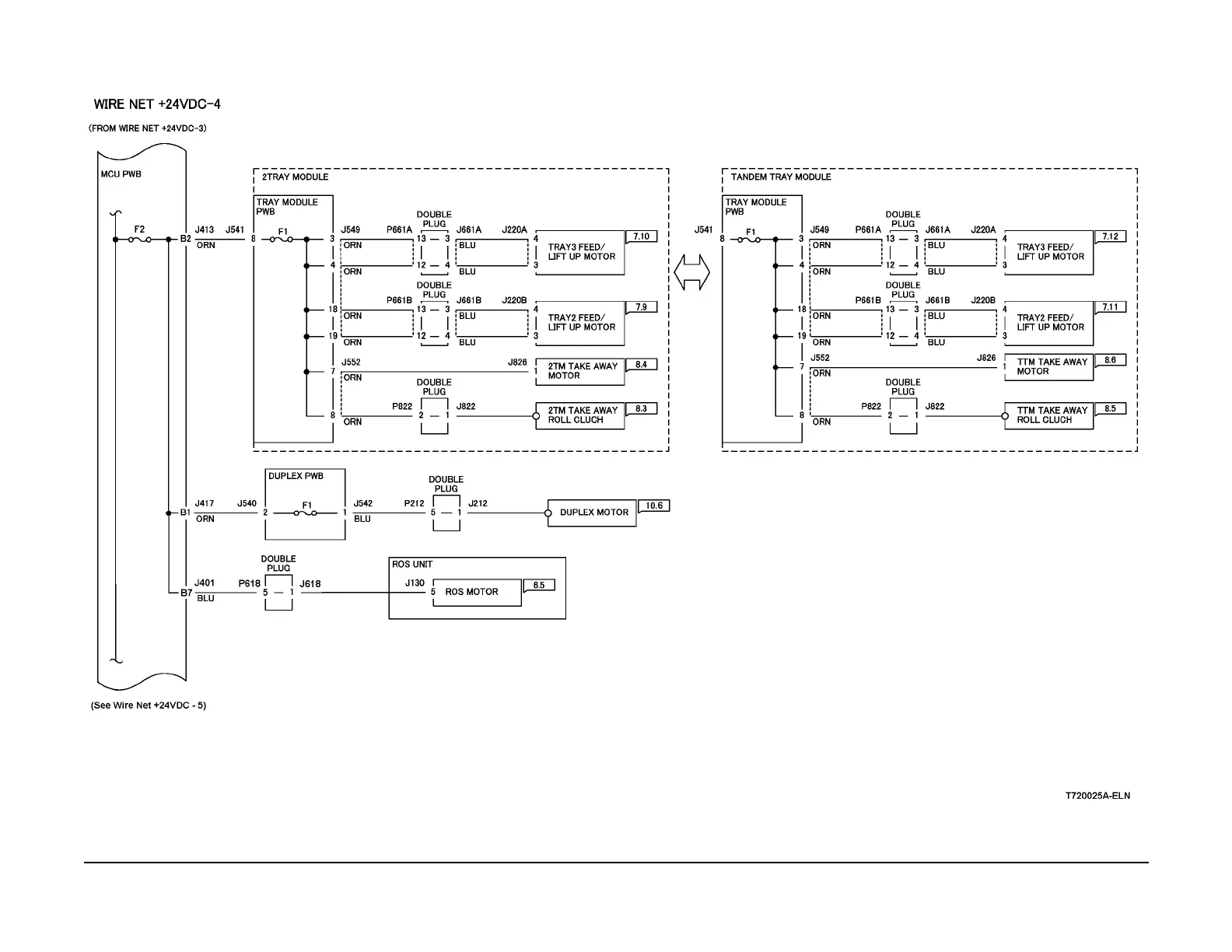

Figure 1 Wire Net +24VDC-4
