WorkCentre 7132
PL 14.2
Parts-list
Reversion 4.0

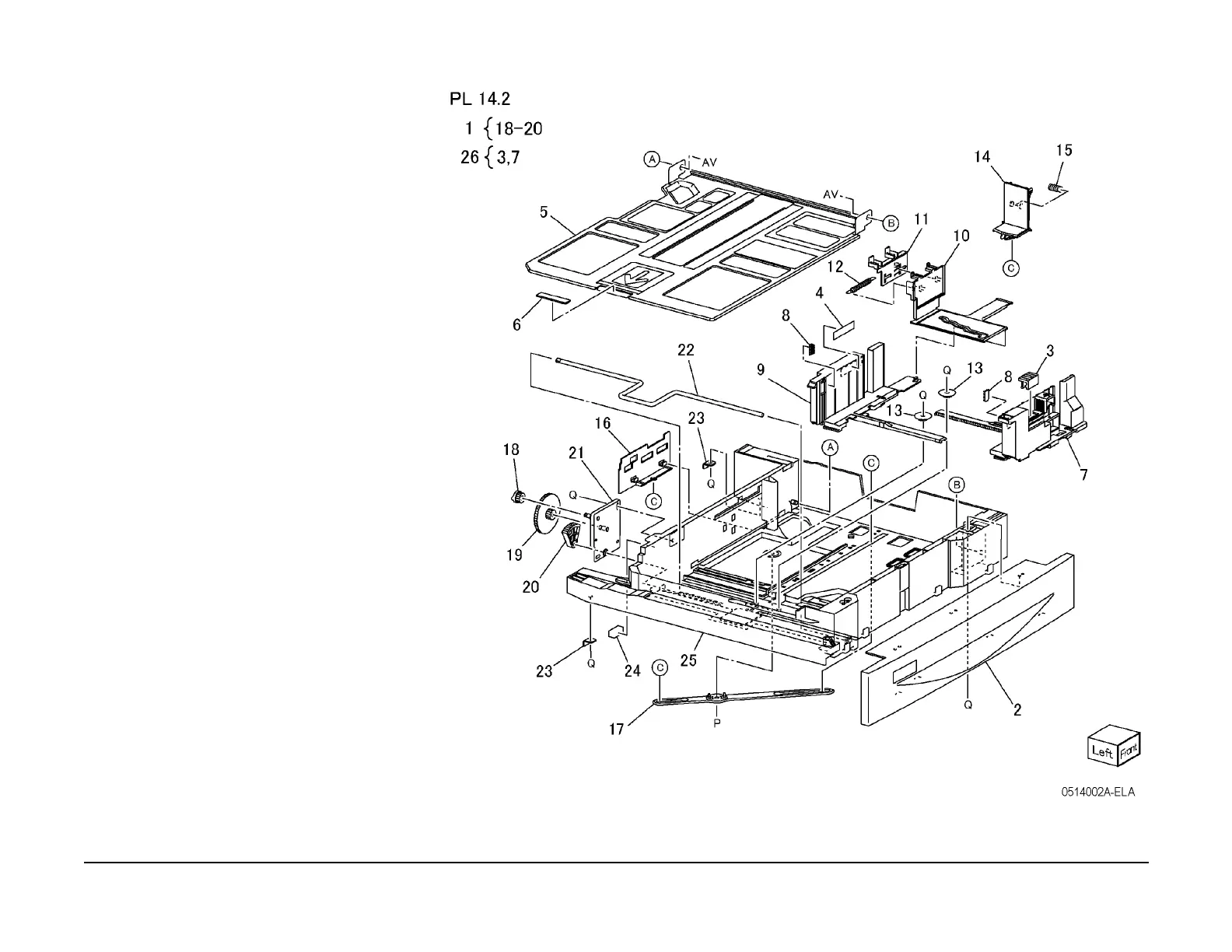

PL 14.2 Tray 2/3 Assembly-2TM
Item Part Description
1 604K20541 Tray Gear Kit
2 – Tray Cover (Not Spared)
3 – Slide Lock (P/O PL 14.2 Item 26)
4 – Label (Max) (Not Spared)
5 – Bottom Plate (P/O PL 14.1 Item 1)
6 – Bottom Pad (P/O PL 14.1 Item 1)
7 – Front Side Guide (P/O PL 14.2 Item
26)
8 – Tray Pad (P/O PL 14.1 Item 1)
9 – Rear Side Guide (P/O PL 14.1 Item
1)
10 – Side Guide Actuator (P/O PL 14.1
Item 1)
11 – Side Actuator (P/O PL 14.1 Item 1)
12 – Spring (P/O PL 14.1 Item 1)
13 – Pinion Gear (P/O PL 14.1 Item 1)
14 – End Guide (P/O PL 14.1 Item 1)
15 – Spring Guide (P/O PL 14.1 Item 1)
16 – End Guide Actuator (P/O PL 14.1
Item 1)
17 – Link (P/O PL 14.1 Item 1)
18 – Coupling Gear (13T) (P/O PL 14.2
Item 1)
19 – Gear (13T/60T) (P/O PL 14.2 Item
1)
20 – Gear (60T) (P/O PL 14.2 Item 1)
21 – Rear Plate (P/O PL 14.1 Item 1)
22 – Lift Up Shaft (P/O PL 14.1 Item 1)
23 – Stopper (P/O PL 14.1 Item 1)
24 – Seal (P/O PL 14.1 Item 1)
25 – Cassette Housing (P/O PL 14.1
Item 1)
26 – Front Side Guide (P/O PL 14.1 Item
1)
