Figure 5 MCU PWB EPROM Location
4. Install the MCU PWB and connect P/Js.
5. Switch on the machine power.
6. If a 041-340 Fault occurs, continue with the following step.
7. Load the current IOT software level on to the MCU PWB and use the Single File down
load.
8. Perform PART 2 of GP 4 Replacing Billing PWBs.
REP 9.1.2 MCU PWB EPROM
Removal
CAUTION
A disabled machine with loss of serialization and billing data occurs if both the ESS PWB with
EPROM and the MCU PWB with EPROM are replaced at the same time.
NOTE: Refer to REP 9.1.1 to remove or replace the MCU PWB EPROM (Figure 1).

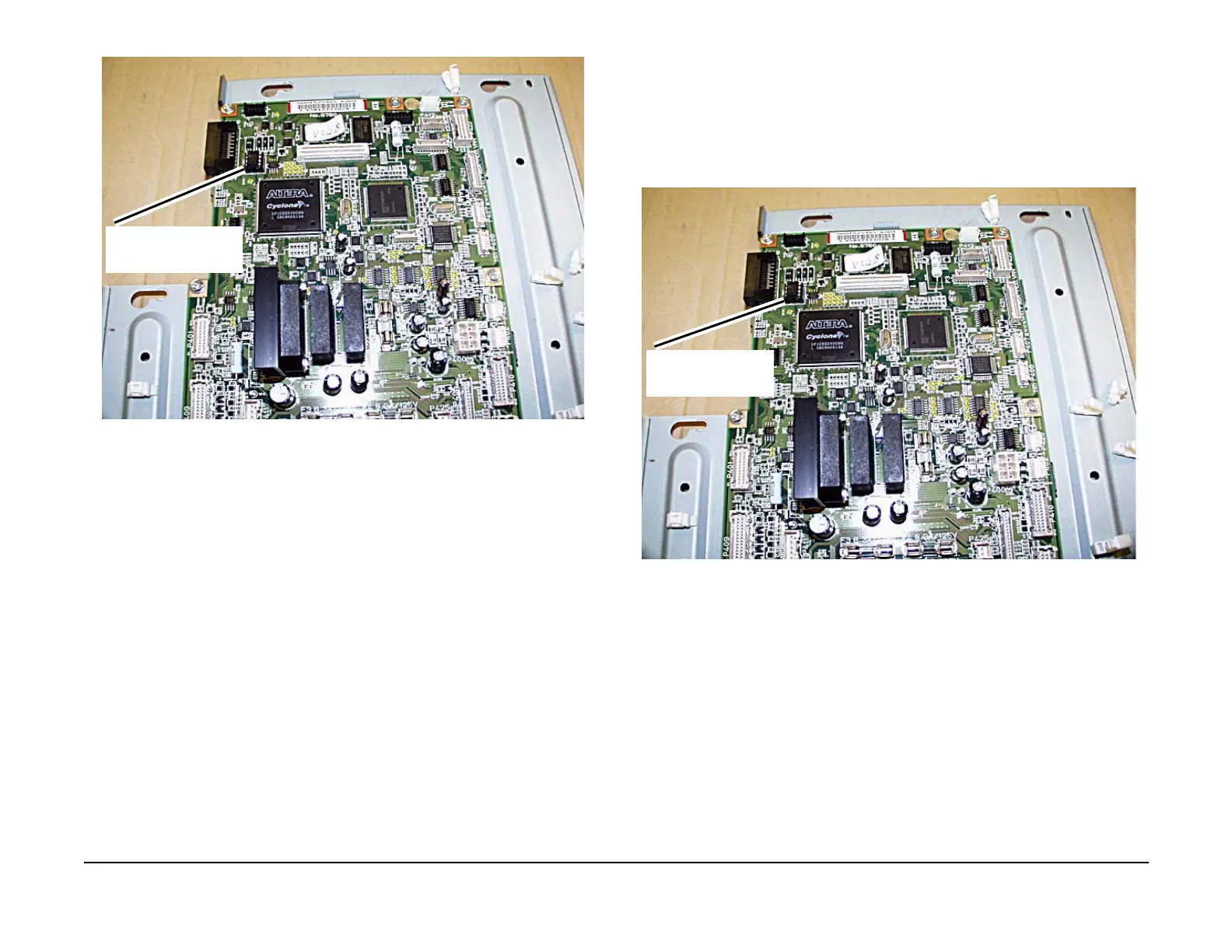

Figure 1 MCU PWB EPROM Location
MCU PWB EPROM
location
MCU PWB EPROM
location
To Next Page
