January 2007
5-59
WorkCentre 7132
PL 15.6
Parts-list
Reversion 4.0

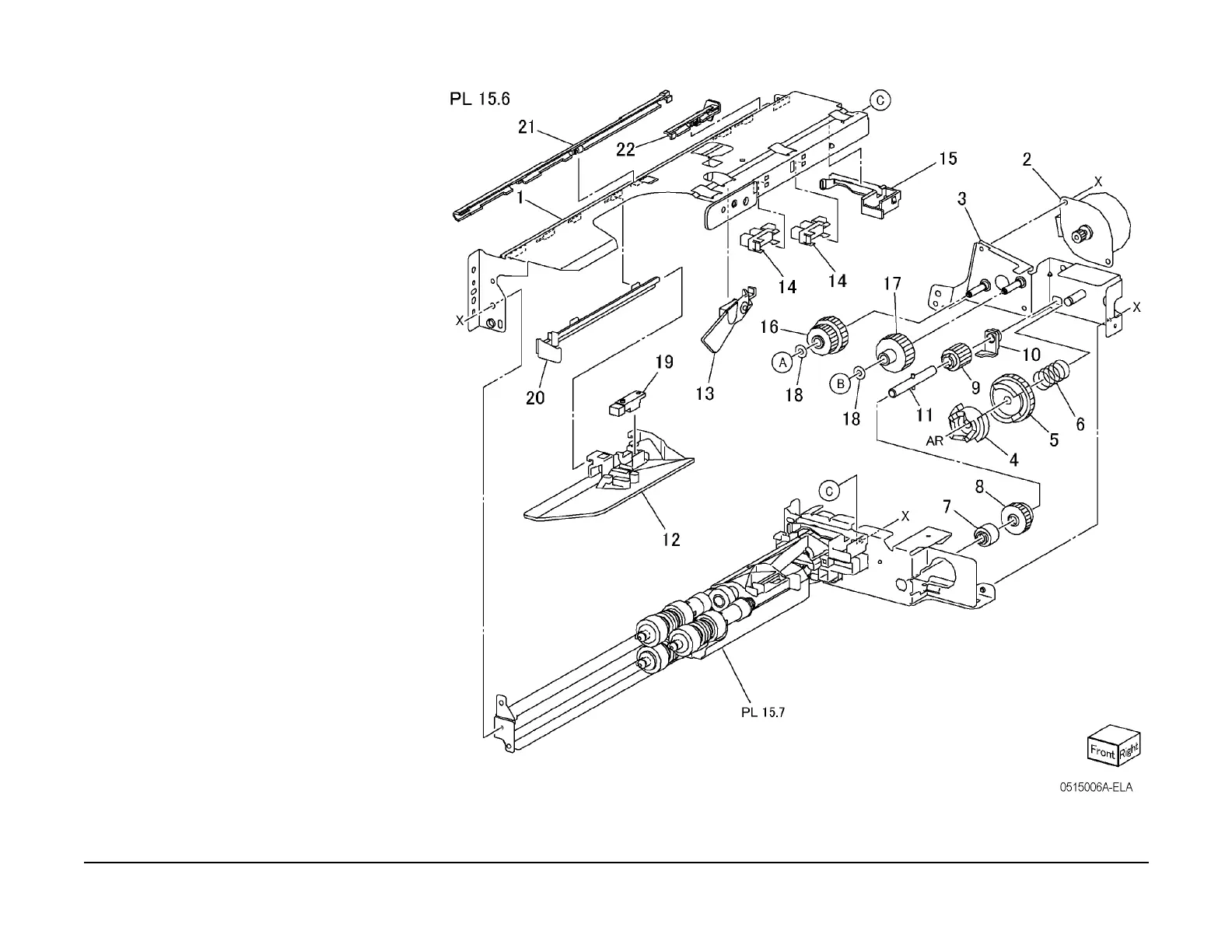

PL 15.6 Feeder 1 Assembly (1 of 2)
Item Part Description
1 – Upper Frame (P/O PL 15.5 Item 1)
2 127K38171 Stepping Motor
3 – Drive Bracket (P/O PL 15.5 Item 1)
4 014E44770 Spacer
5 – Gear (31T) (P/O PL 15.5 Item 1)
6 – Spring (P/O PL 15.5 Item 1)
7 – Oneway Clutch (P/O PL 15.5 Item
1)
8 – Oneway Gear (P/O PL 15.5 Item 1)
9 – Gear (33T) (P/O PL 15.5 Item 1)
10 – Bearing (P/O PL 15.5 Item 1)
11 – Shaft (P/O PL 15.5 Item 1)
12 – Front Chute (P/O PL 15.5 Item 1)
13 120E22481 Actuator
14 930W00113 Photo Level Sensor, Photo No
Paper Sensor
15 – Harness Rear Holder (P/O PL 15.5
Item 1)
16 – Gear (28/21T) (P/O PL 15.5 Item 1)
17 – Gear (29T) (P/O PL 15.5 Item 1)
18 – Washer (P/O PL 15.5 Item 1)
19 930W00211 Reflection Sensor
20 – Rail (P/O PL 15.5 Item 1)
21 – Harness Upper Holder (P/O PL
15.5 Item 1)
22 – Harness Holder (CTR) (P/O PL
15.5 Item 1)
To Next Page
