Xerox WorkCentre 7132 Service Documentation

January 2007
4-114
WorkCentre 7132
REP 13.3.1, REP 13.4.1
Reversion 4.0
Repairs/Adjustments
Figure 3 Removing the Left Shaft Assembly to remove the Tray Cable
Replacement
1. To install, carry out the removal steps in reverse order.
REP 13.4.1 Tray 3 Feeder (TTM)
Parts List on PL 15.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Tray 2 Assembly. (REP 13.1.1)
2. Remove the Tray 3 Assembly. (REP 13.1.2)
3. Remove the Tray 3 Transport Assembly. (Figure 1)
1. Remove the Tray 3 Transport Assembly.

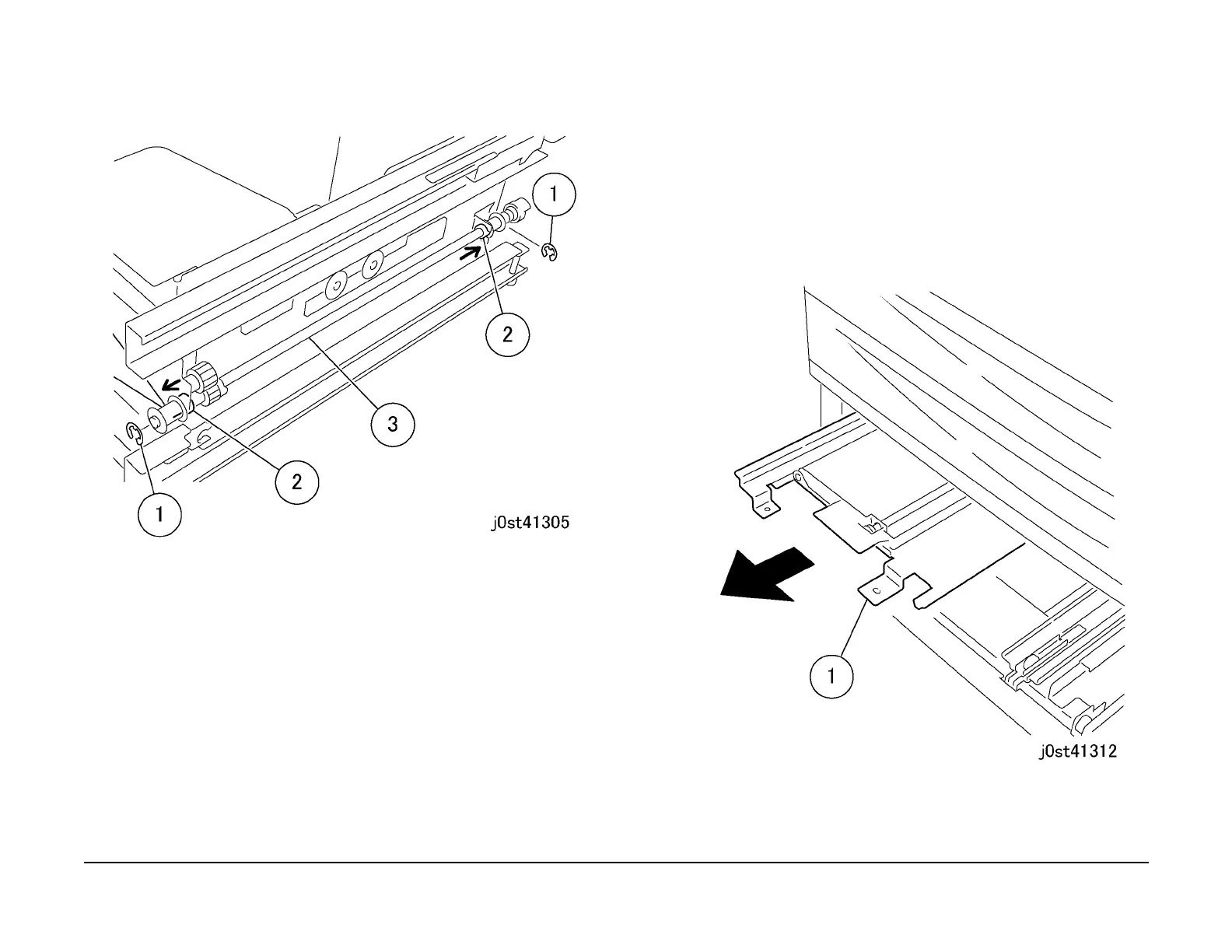

Figure 1 Removing the Tray 3 Transport Assembly
4. Remove the Stud Bracket. (Figure 2)
1. Remove the screw.
