Xerox WorkCentre 7132 Service Documentation

January 2007
5-82
WorkCentre 7132
PL 17.9
Reversion 4.0
Parts-list

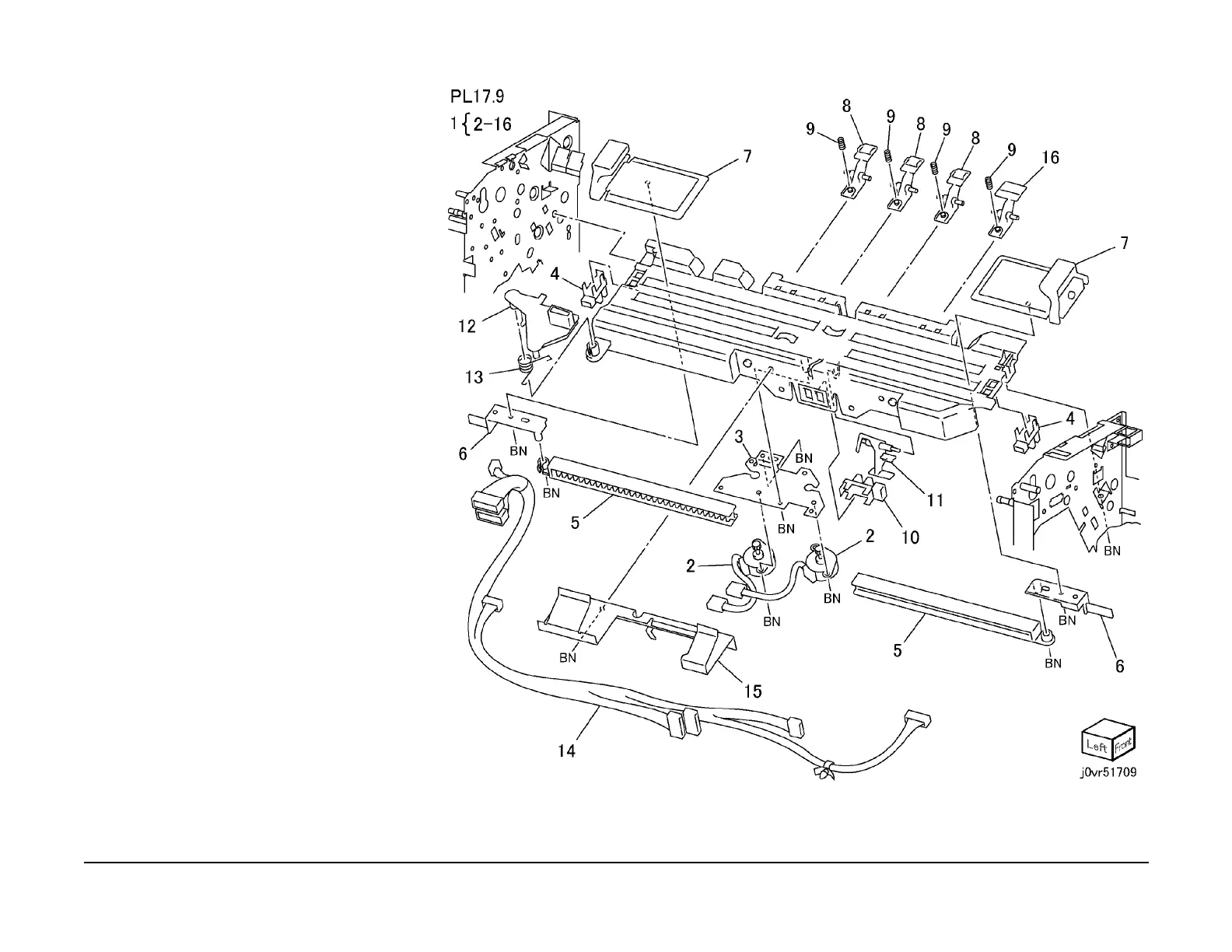

PL 17.9 Compiler Tray Assembly
Item Part Description
1 050K56691 Compiler Tray Assembly (REP
16.9.1)
2 127K39920 Front/Rear Tamper Motor
3 – Plate (P/O PL 17.9 Item 1)
4 130K88770 Front/Rear Tamper Home Sensor
5 – Rack (P/O PL 17.9 Item 1)
6 – Actuator (P/O PL 17.9 Item 1)
7 – Tamper Assembly (P/O PL 17.9
Item 1)
8 – Finger (P/O PL 17.9 Item 1)
9 – Spring (P/O PL 17.9 Item 1)
10 130K88780 Compiler Paper Sensor
11 120E24490 Actuator
12 – Paper Guide (P/O PL 17.9 Item 1)
13 – Spring (P/O PL 17.9 Item 1)
14 – Wire Harness (P/O PL 17.9 Item 1)
15 – End Guide (P/O PL 17.9 Item 1)
16 – Finger (P/O PL 17.9 Item 1)
