January 2007
5-37
WorkCentre 7132
PL 11.4
Parts-list
Reversion 4.0

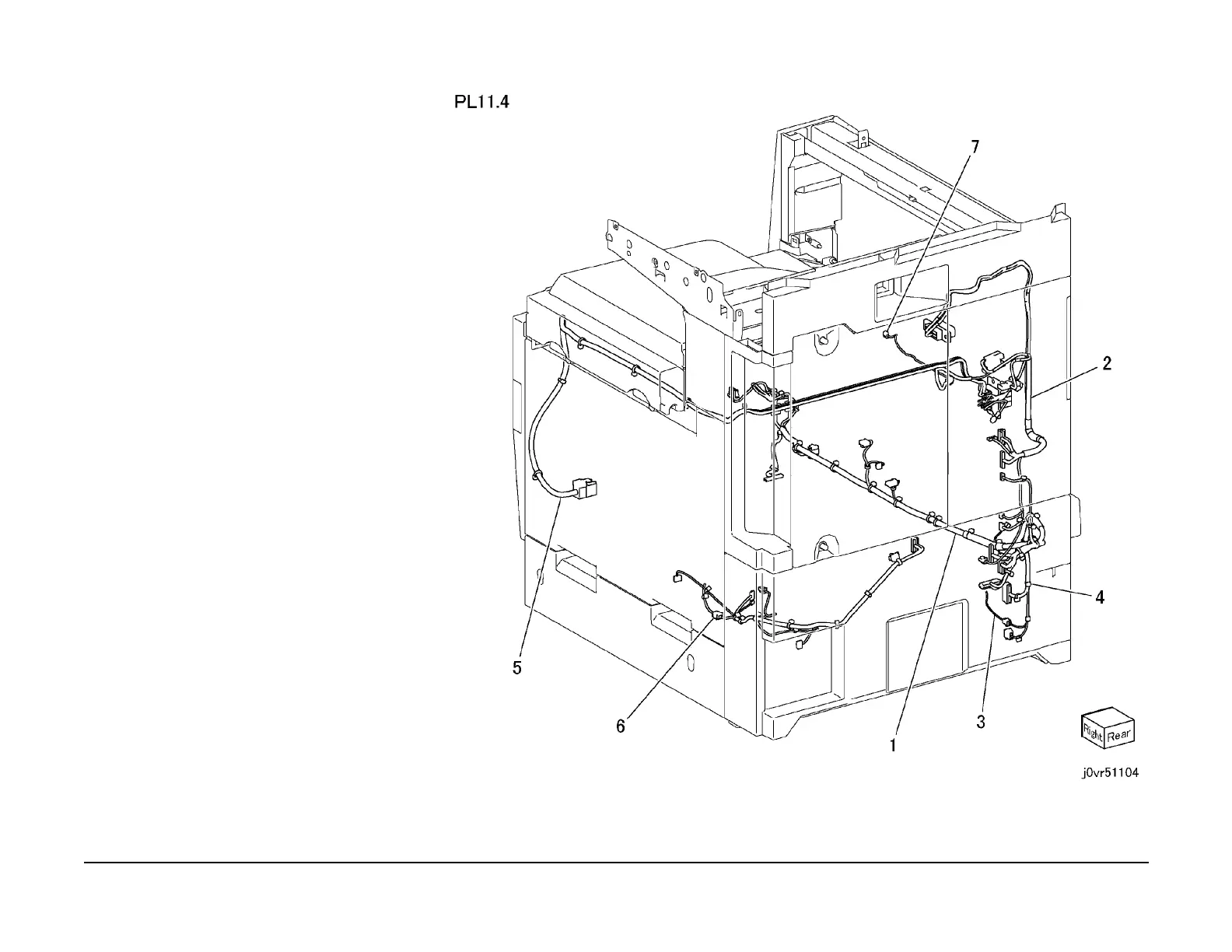

PL 11.4 Wire Harnesses
Item Part Description
1 – Front Harness (Not Spared)
2 – Exit Harness (Not Spared)
3 – Switch Harness (Not Spared)
4 – P/H Harness (Not Spared)
5 – Fuser AC Harness (Not Spared)
6 – ROS Harness (Not Spared)
7 – Exit Sensor Harness (Not Spared)
