January 2007
5-19
WorkCentre 7132
PL 5.1
Parts-list
Reversion 4.0

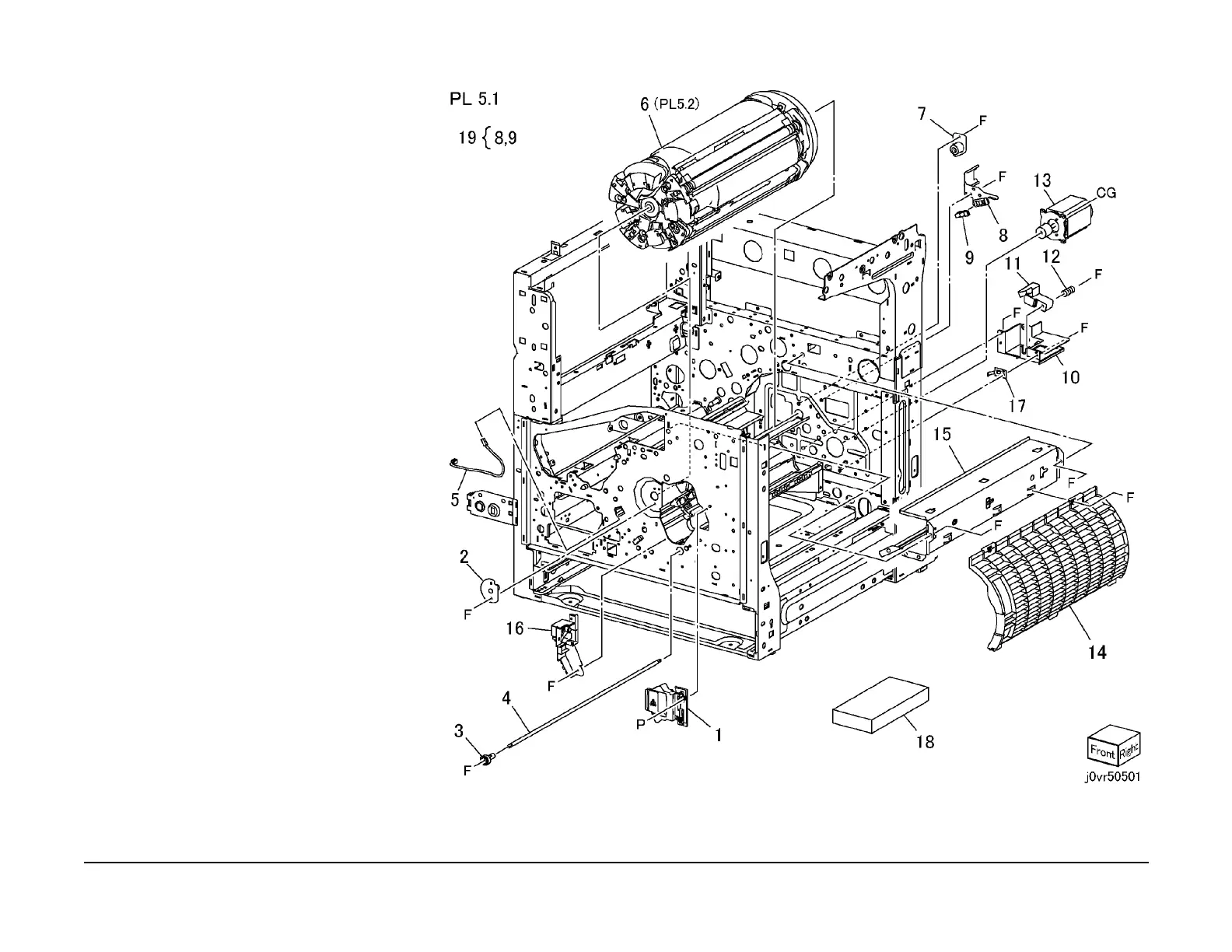

PL 5.1 Developer Component
Item Part Description
1 802K86741 Toner Cartridge Door
2 – Rotary Plate (Not Spared)
3 – Cap Lock (Not Spared)
4 – Shaft Lock (Not Spared)
5 117K37281 Developer Wire
6 – Rotary Assembly (Not Spared)
7 – Rotary Holder (Not Spared)
8 930W00111 Sensor Plate
9 – Rotary House Sensor (P/O PL 5.1
Item 19)
10 – Harness Cover (Not Spared)
11 – Rotary Block (Not Spared)
12 – Lock Spring (Not Spared)
13 127K48861 Rotary Motor (REP 4.2.6)
14 – Rotary Cover (Not Spared) (REP
4.1.1)
15 – IBT Tie Cleaner Plate (Not Spared)
16 014K82501 Toner Cartridge Door Lock
17 – Ground Plate (Not Spared)
18 675K38910 Developer K (REP 4.2.7)
– 675K38920 Developer C (REP 4.2.7)
– 675K38940 Developer Y (REP 4.2.7)
– 675K38930 Developer M (REP 4.2.7)
19 130K69210 Rotary Sensor Assembly
