January 2007
4-43
WorkCentre 7132
REP 4.2.7
Repairs/Adjustments
Reversion 4.0

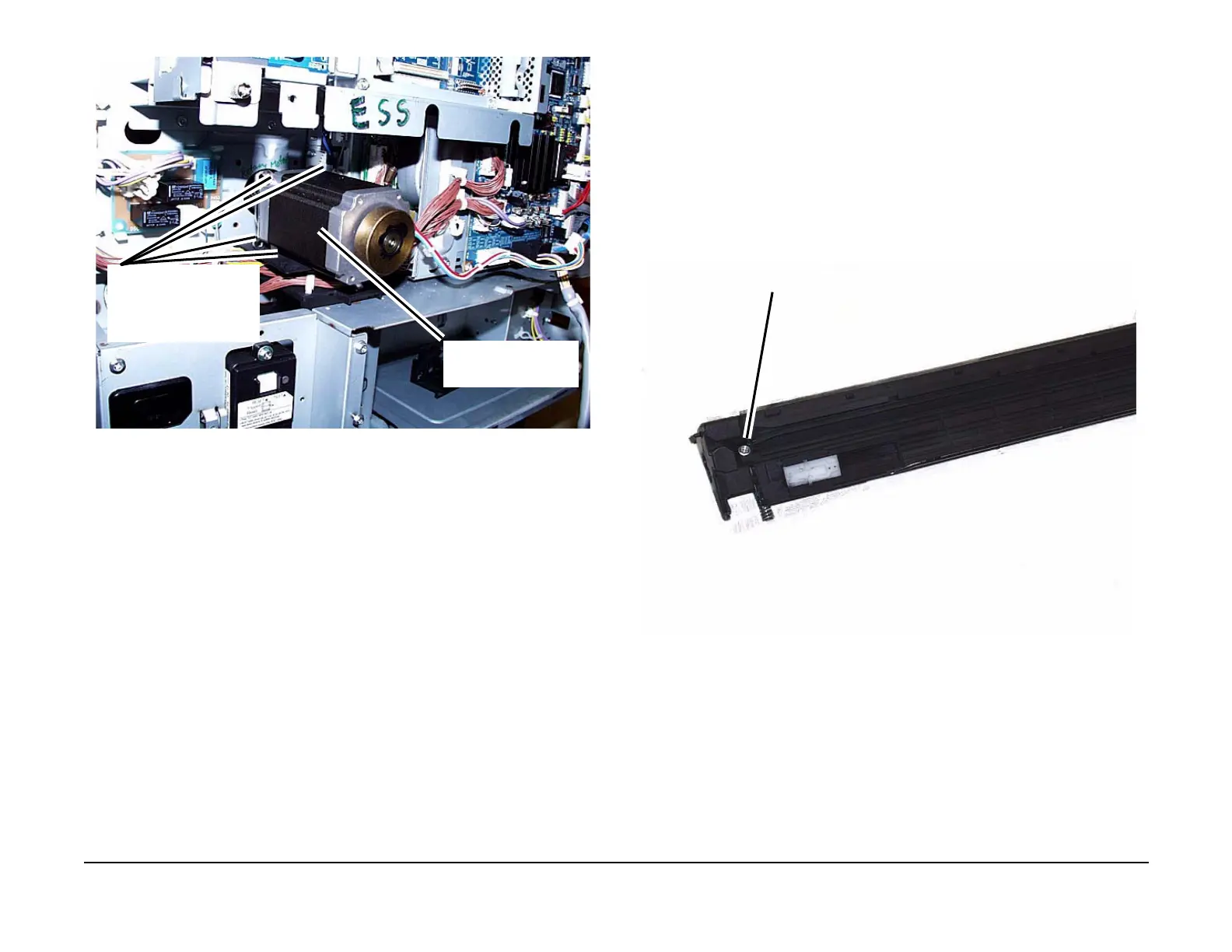

Figure 2 Removing the Rotary Motor
REP 4.2.7 Developer Material
Parts List on PL 5.1
Removal
1. Remove the Developer Housing. (REP 4.1.1)
2. Place several sheets of paper on a work surface and place the Developer Housing on the
paper.
CAUTION
Be careful to avoid getting Developer Material on the Developer Housing drive gears. If some
developer does contaminate the gears, clean the gears and make sure that the gears rotates
smoothly.
3. Remove the screw from the cover on the Developer Housing. (Figure 1)
Figure 1 Removing the screw from the Developer Housing Cover
4. Unlatch the tabs on the Developer Housing Cover. (Figure 2)
1
Remove the screws (4)
2
Remove the Rotary
Motor
Remove the screw (1)
To Next Page
