8. Remove the Set Clamp Shaft. (Figure 6)
(1)Move Set Clamp Shaft in the direction of the arrow.
(2)Remove Belts (3) from Pulleys (3).
(3)Remove Set Clamp Shaft in the direction of the arrow.

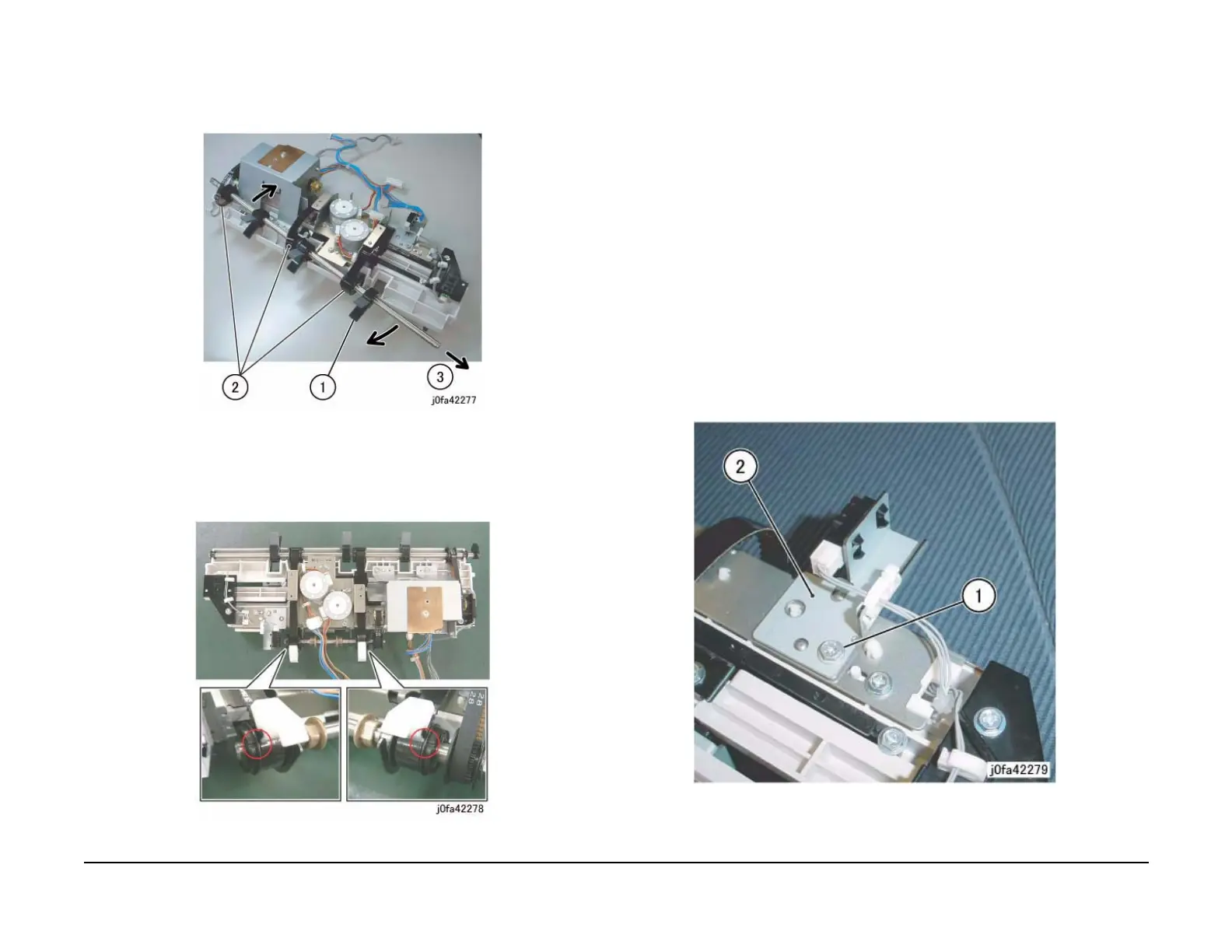

Figure 6 Removing the Set Clamp Shaft (j0fa42277)
Replacement
1. Reverse the removal procedure for replacement.
2. Install and align the Eject Belt with marks on the Pulleys. (Figure 7)
Figure 7 Installing the Eject Belt (j0fa42278)
REP 22.9.3 Eject Belt
Parts List on PL 22.9
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Before turning OFF the power switch, note the following to prevent loss of customer data.
[with the FAX function]
Check that the “Job in Memory” lamp is off. Press the “Job Status” button and check that no job
is in progress.
[with the Printer function]
Check that “Ready to print/send” is displayed on the Control Panel.
1. Remove the A-Finisher from the machine.
2. Remove the Compile Assembly. (REP 22.9.1)
3. Remove the Front/Rear Tamper Motor Assembly. (REP 22.10.1)
4. Move the Eject Home Sensor Assembly. (Figure 1)
(1)Remove Screw.
(2)Move Eject Home Sensor Assembly.
Figure 1 Moving the Eject Home Sensor Assembly (j0fa42279)
