January 2007
4-218
WorkCentre 7132
REP 22.8.2
Reversion 4.0
Repairs/Adjustments

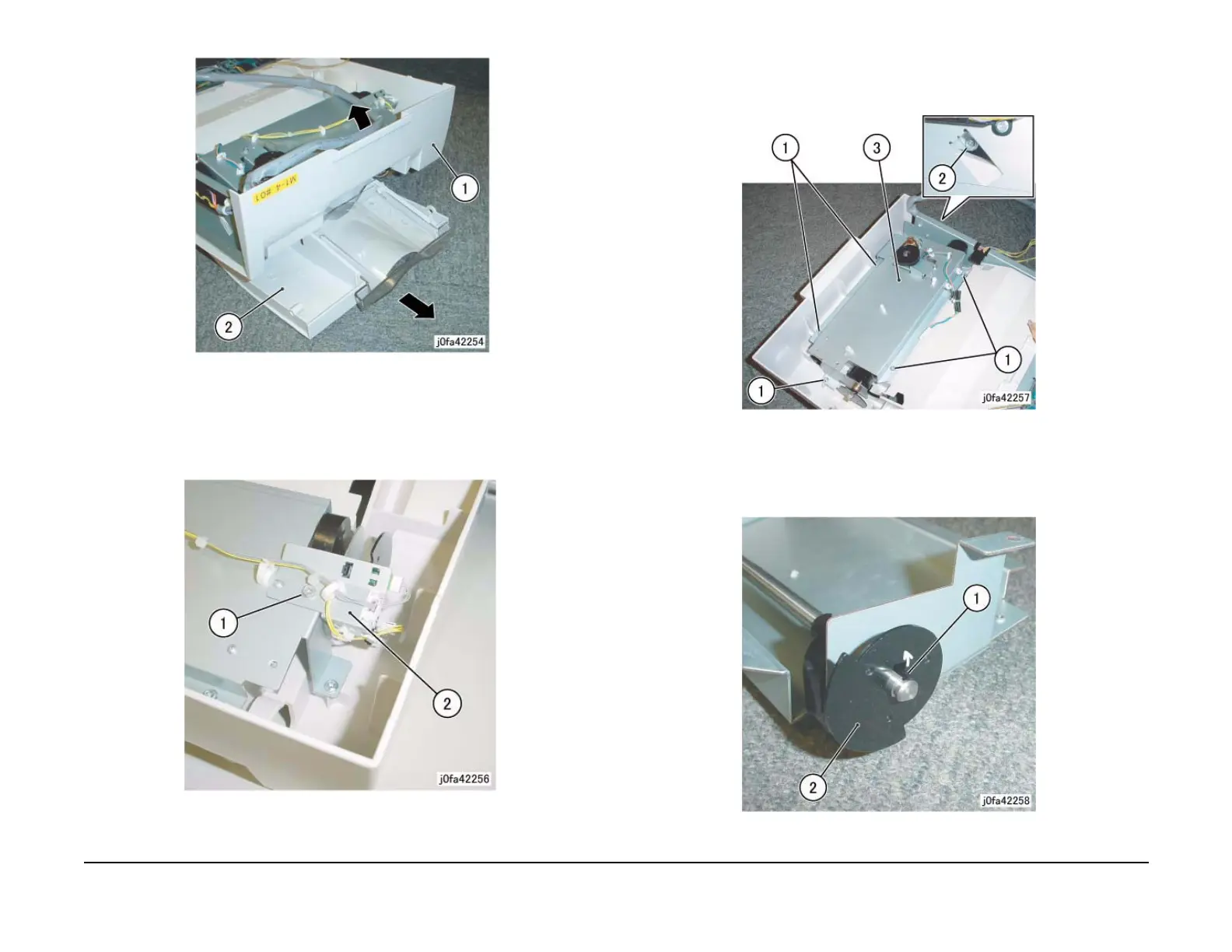

Figure 4 Disconnecting the Connector (j0fa42255)
9. Remove the Stacker Stack Sensor Assembly. (Figure 5)
(1)Remove Screw.
(2)Remove Stacker Stack Sensor Assembly.
(3)Remove Wire from Clamps (5)
Figure 5 Removing the Stacker Stack Sensor Assembly (j0fa42256)
10. Remove the Stacker Assembly. (Figure 6)
(1)Remove Tapping Screws (5).
(2)Remove Screw.
(3)Remove Stacker Assembly.
Figure 6 Removing the Stacker Assembly (j0fa42257)
11. Remove the Actuator. (Figure 7)
(1)Unhook.
(2)Remove Actuator.
Figure 7 Removing the Actuator (j0fa42258)
