WorkCentre 7132
PL 15.3
Reversion 4.0
Parts-list

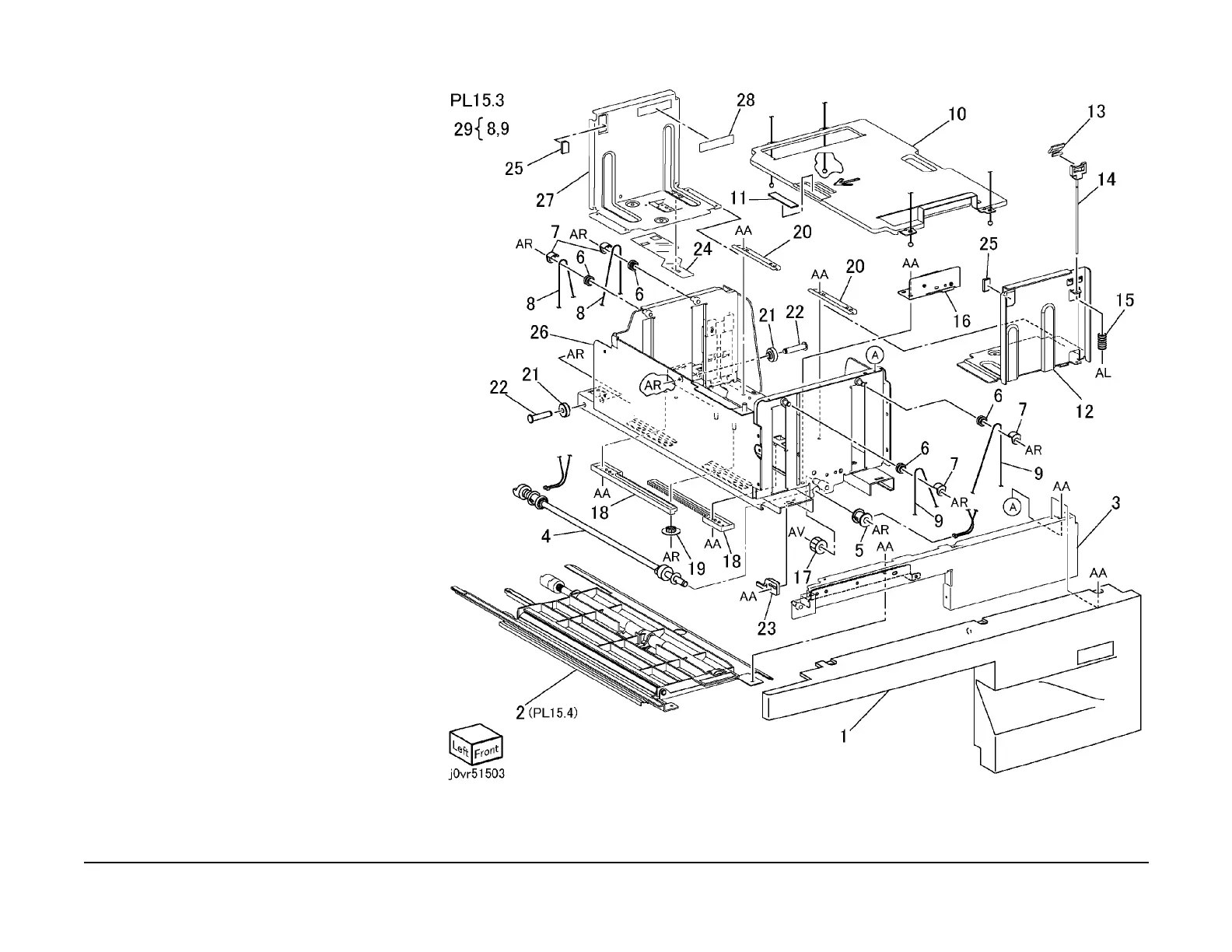

PL 15.3 Tray 3 Assembly-TTM
Item Part Description
1 – Tray Cover (P/O PL 15.1 Item 3)
2 059K26340 Transport Assembly
3 – Frame (P/O PL 15.1 Item 3)
4 006K23014 Shaft
5 020E36821 Pulley
6 – Pulley (P/O PL 15.1 Item 3)
7 – Cable Guide (P/O PL 15.1 Item 3)
8 – Right Rear Cable (P/O PL 15.2
Item 30) (REP 13.3.1)
9 – Right Front Cable (P/O PL 15.2
Item 30) (REP 13.3.1)
10 – Bottom Plate (P/O PL 15.1 Item 3)
11 – Pad (P/O PL 15.1 Item 3)
12 – Front Side Guide (P/O PL 15.1 Item
3)
13 – Knob (P/O PL 15.1 Item 3)
14 – Knob (P/O PL 15.1 Item 3)
15 – Spring (P/O PL 15.1 Item 3)
16 – Brake Bracket (P/O PL 15.1 Item 3)
17 007E78390 Gear
18 – Rack Gear (P/O PL 15.1 Item 3)
19 – Pinion (P/O PL 15.1 Item 3)
20 – Bracket (P/O PL 15.1 Item 3)
21 – Rail Roll (P/O PL 15.1 Item 3)
22 – Shaft (P/O PL 15.1 Item 3)
23 003E49861 Stopper
24 – Actuator (P/O PL 15.1 Item 3)
25 – Pad (P/O PL 15.1 Item 3)
26 – Tray Base (P/O PL 15.1 Item 3)
27 – Rear Side Guide (P/O PL 15.1 Item
3)
28 – Label (Max) (P/O PL 15.1 Item 3)
29 604K20750 Tray Cable Kit
To Next Page
