January 2007
4-71
WorkCentre 7132
REP 10.1.1
Repairs/Adjustments
Reversion 4.0
REP 10.1.1 Top Cover Assembly
Parts List on PL 12.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Remove the Toner Cartridge. (REP 4.1.2)

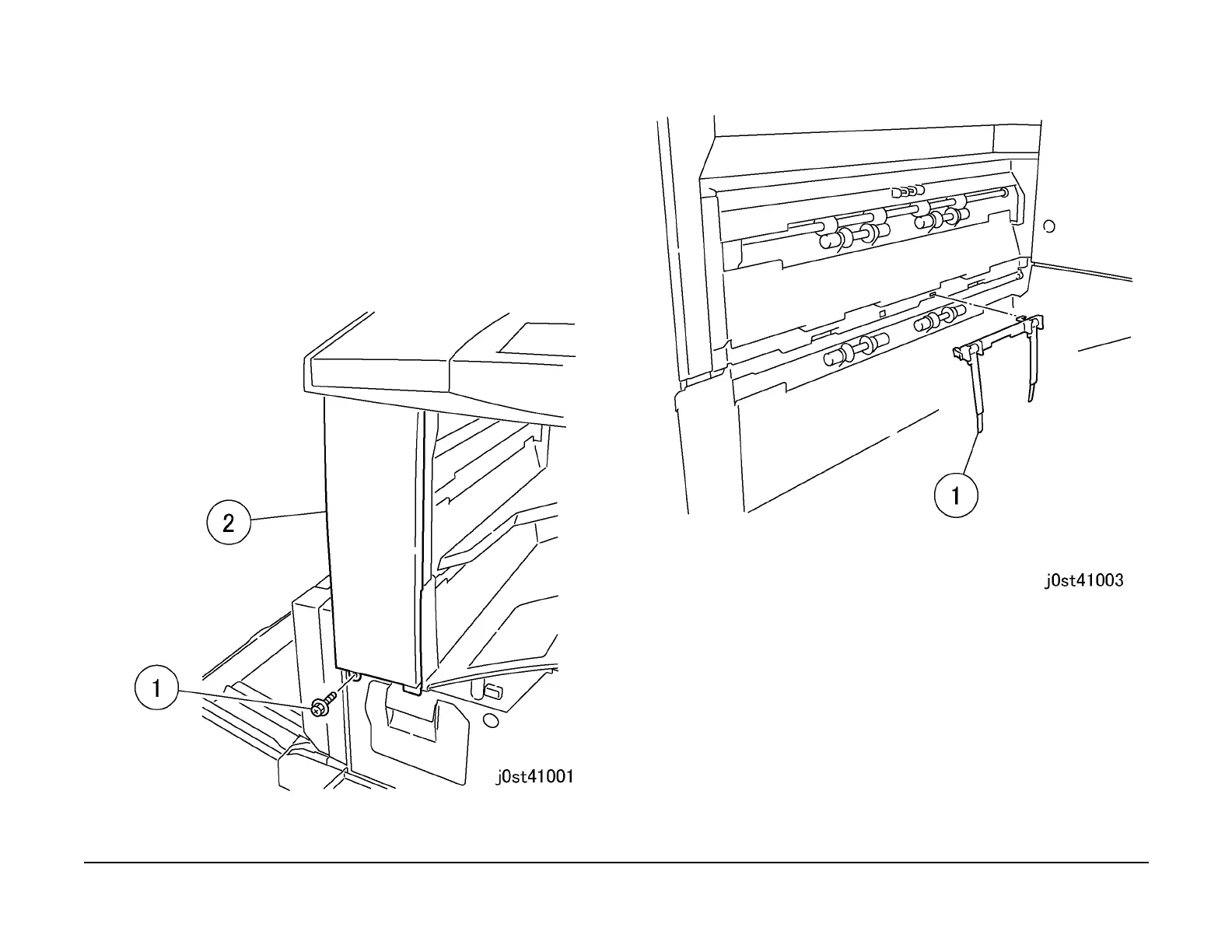

2. Remove the Front Left Cover. (Figure 1)
1. Remove the screw.
2. Remove the Front Left Cover.
Figure 1 Removing the Front Left Cover
3. Remove the Paper Weight Assembly. (Figure 2)
1. Remove the Paper Weight Assembly.
Figure 2 Removing the Paper Weight Assembly
4. Remove the Top Cover Assembly. (Figure 3)
1. Remove the screws (x2).
2. Remove the Top Cover Assembly.
To Next Page
