GP 12 Elan Boot Sequence

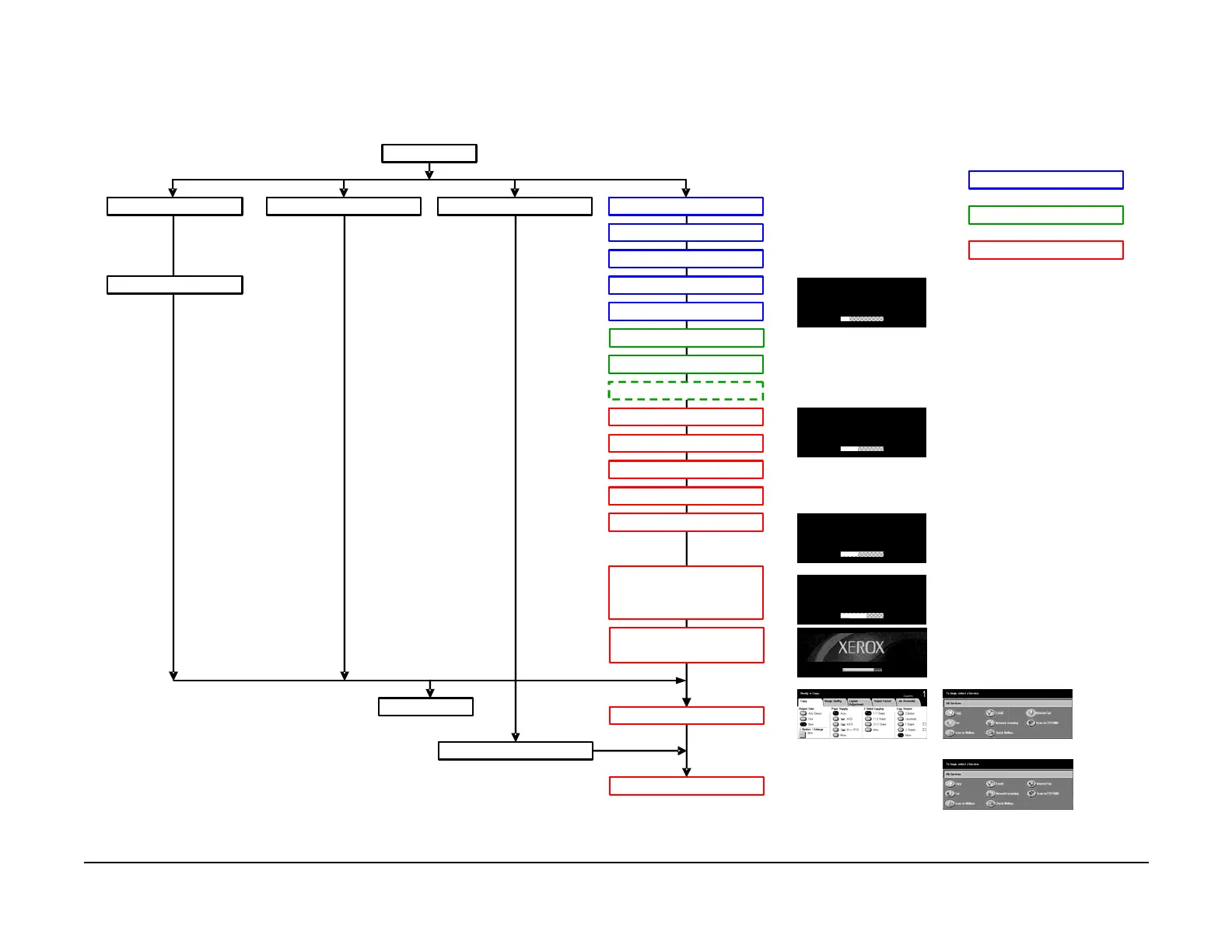

Figure 1 Elan Boot Sequence
Elan
Elan
Boot Sequence
Boot Sequence
Power on
Initialize IOT Initialize IIT Initialize Fax Mother Initialize CPU
Initialize memory
Initialize PCI device
Pre-greeting screen
Get key state
Activate OS
Boot Diag
Get key state
Greeting screen
Initialize Sys
Activate SysCont
Activate UI task
Please wait screen
NVM initialization
completed (start reading
values from NVMs of UI)
Fax enabling
Operation enabling notice
Fuser On
Ready
Processing by mini OS
Processing by OS
Processing by PFLite
Reading values from NVMS
completed
Menu/Copy screen
Please wait…
WORKCENTRE
Please wait…
WORKCENTRE
Please wait…Please wait…
Please wait…Please wait…
