January 2007
4-177
WorkCentre 7132
REP 16.8.2, REP 16.9.1
Repairs/Adjustments
Reversion 4.0
Replacement
1. To install, carry out the removal steps in reverse order taking note of the following:

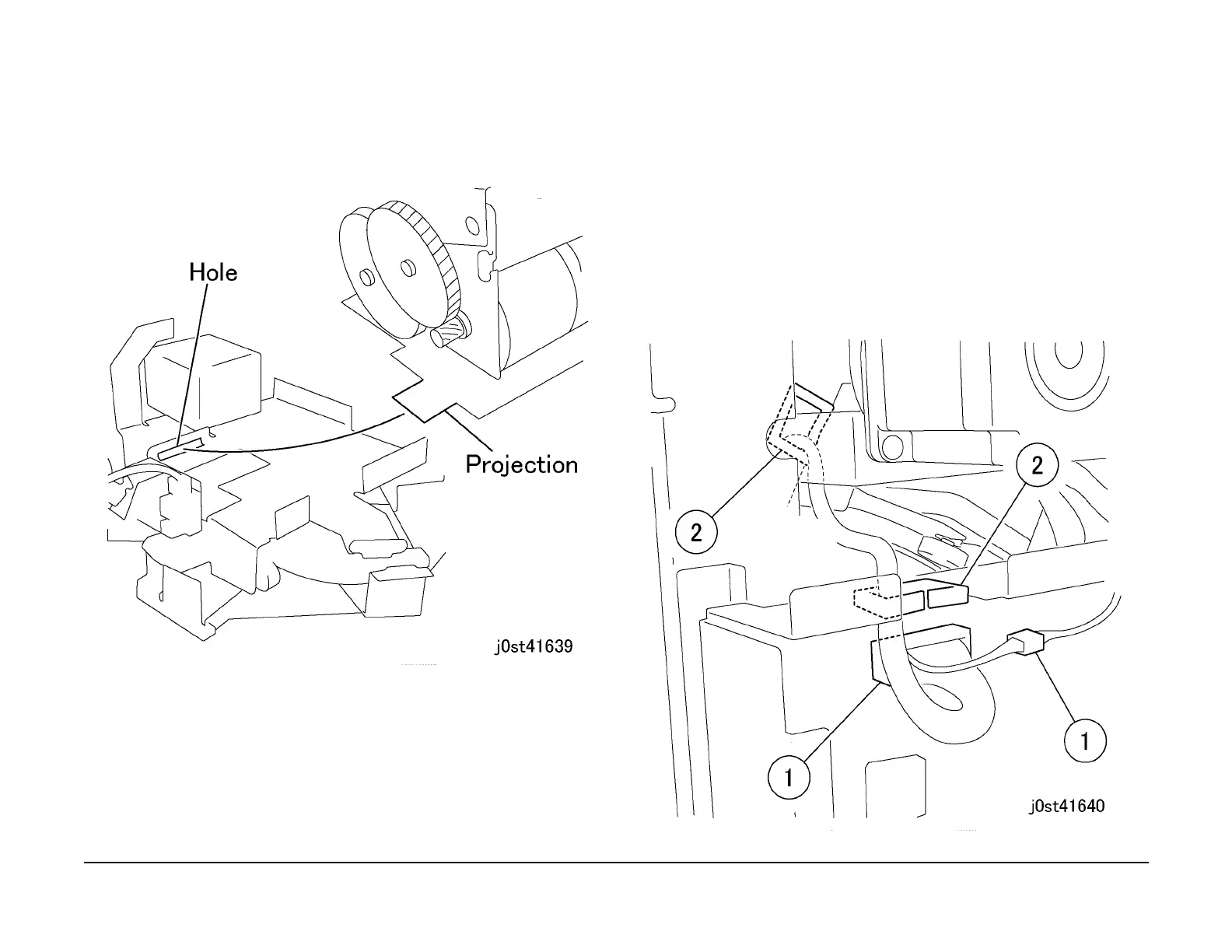

NOTE: Ensure the tip of the Staple Assembly is inserted into the hole in the bracket. (Fig-
ure 3)
Figure 3 Installing the Staple Assembly
REP 16.9.1 Compiler Tray Assembly
Parts List on PL 17.9
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Remove the Staple Assembly (REP 16.8.2).
2. Remove the Tray Guide (Perform REP 16.5.2 up to Step 5.)
3. Release the clamp to remove the wire. (Figure 1)
1. Disconnect the connectors (x2).
2. Release the Edge Saddles (x2) to remove the wire.
Figure 1 Disconnecting the connectors
To Next Page
