Xerox WorkCentre 7132

January 2007
4-178
WorkCentre 7132
REP 16.9.1
Reversion 4.0
Repairs/Adjustments
4. Remove the screws. (Figure 2)
1. Remove the screws (x2).

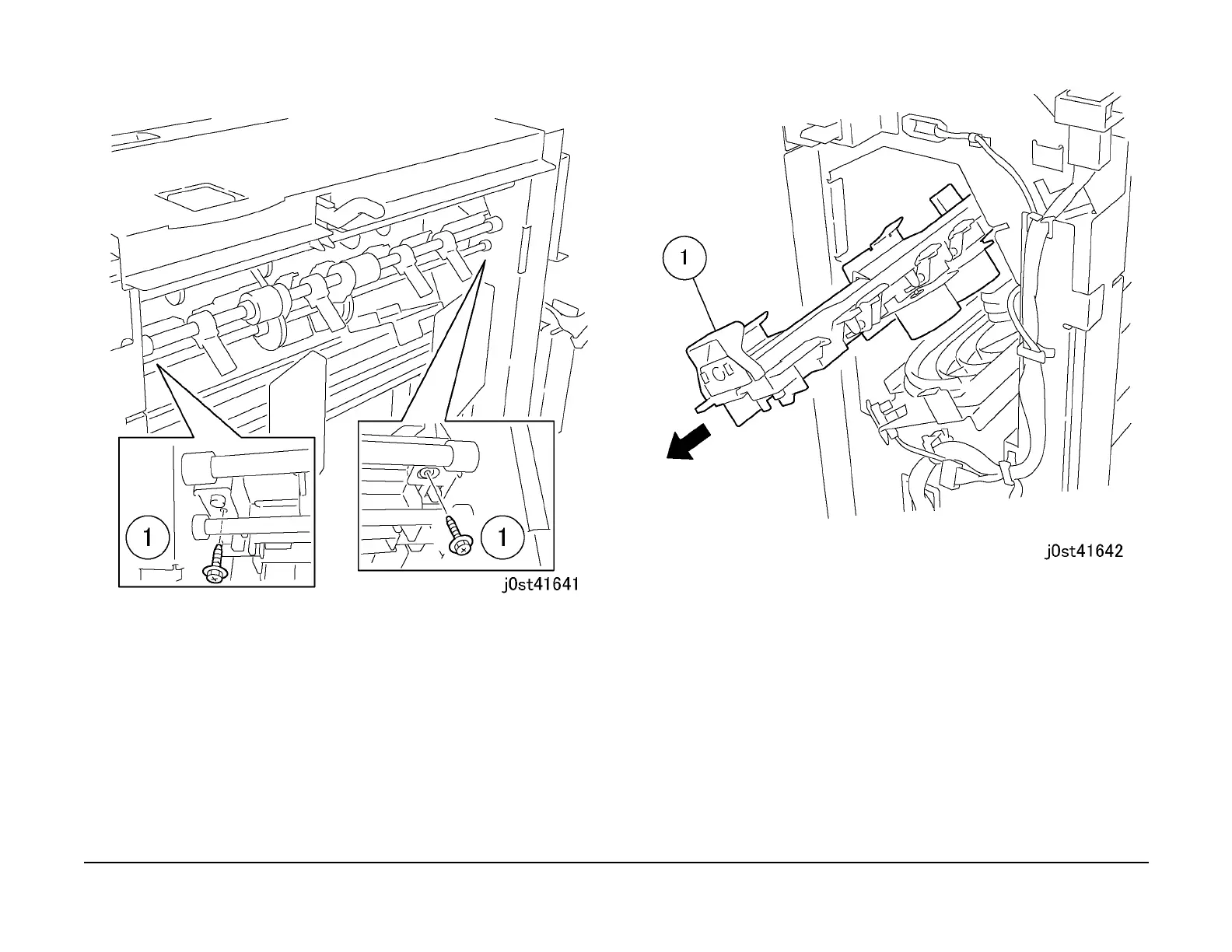

Figure 2 Removing the screws
5. Remove the Compiler Assembly (item 1) (Figure 3).
Figure 3 Removing the Compiler Assembly
