January 2007
4-132
WorkCentre 7132
REP 15.3.1
Reversion 4.0
Repairs/Adjustments
REP 15.3.1 DADF PWB
Parts List on PL 16.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the DADF Rear Cover. (REP 15.2.4)
2. Disconnect the DADF PWB connectors. (Figure 1)
1. Disconnect the connectors (13).

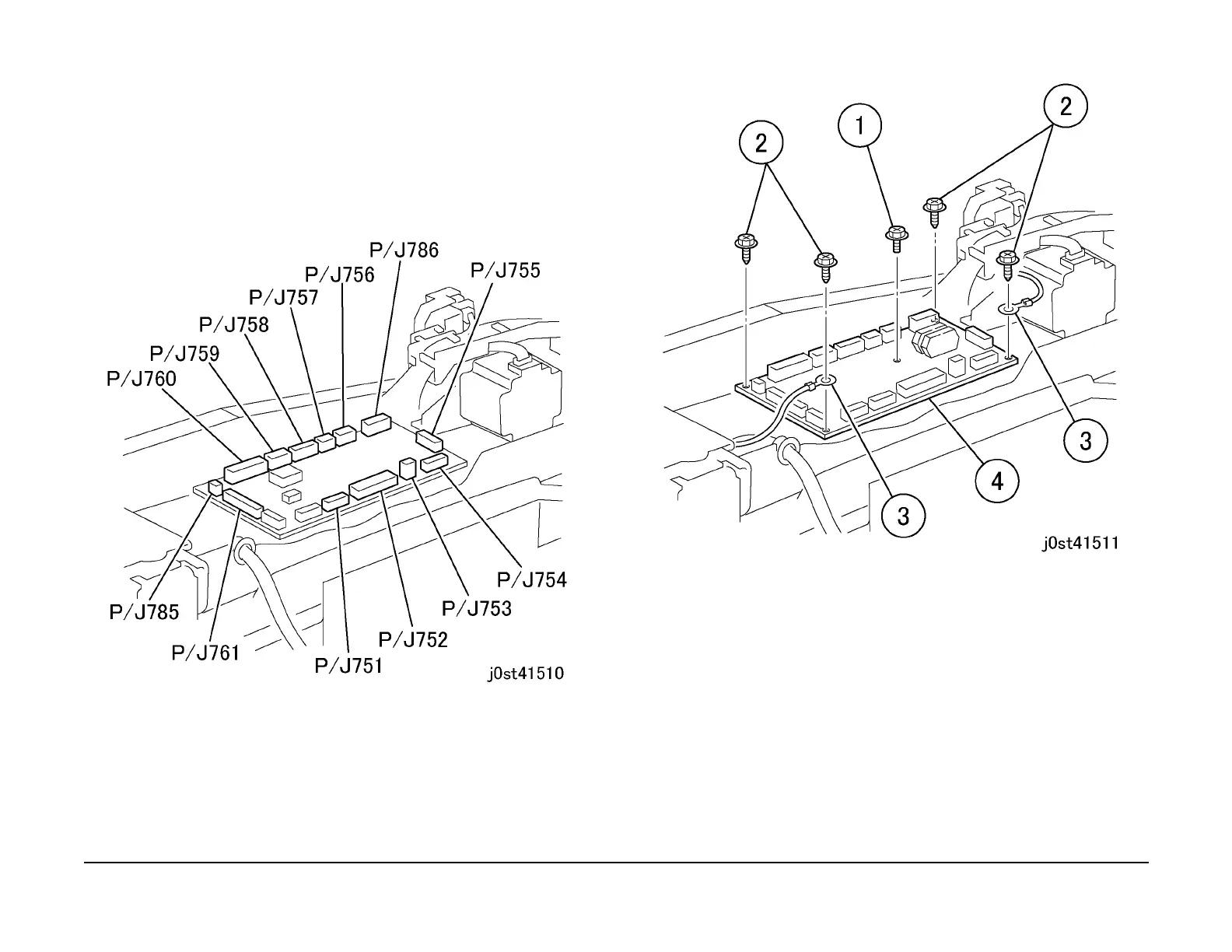

Figure 1 Disconnecting the DADF PWB connectors
3. Remove the DADF PWB. (Figure 2)
1. Remove the screws (1).
2. Remove the Tapping Screws (4).
3. Remove the Earth Wires (x2).
4. Remove the DADF PWB.
Figure 2 Removing the DADF PWB
Replacement
1. To install, carry out the removal steps in reverse order.
2. Check the S/W version and upgrade if necessary.
