WorkCentre 7132
REP 15.2.4
Repairs/Adjustments
Reversion 4.0

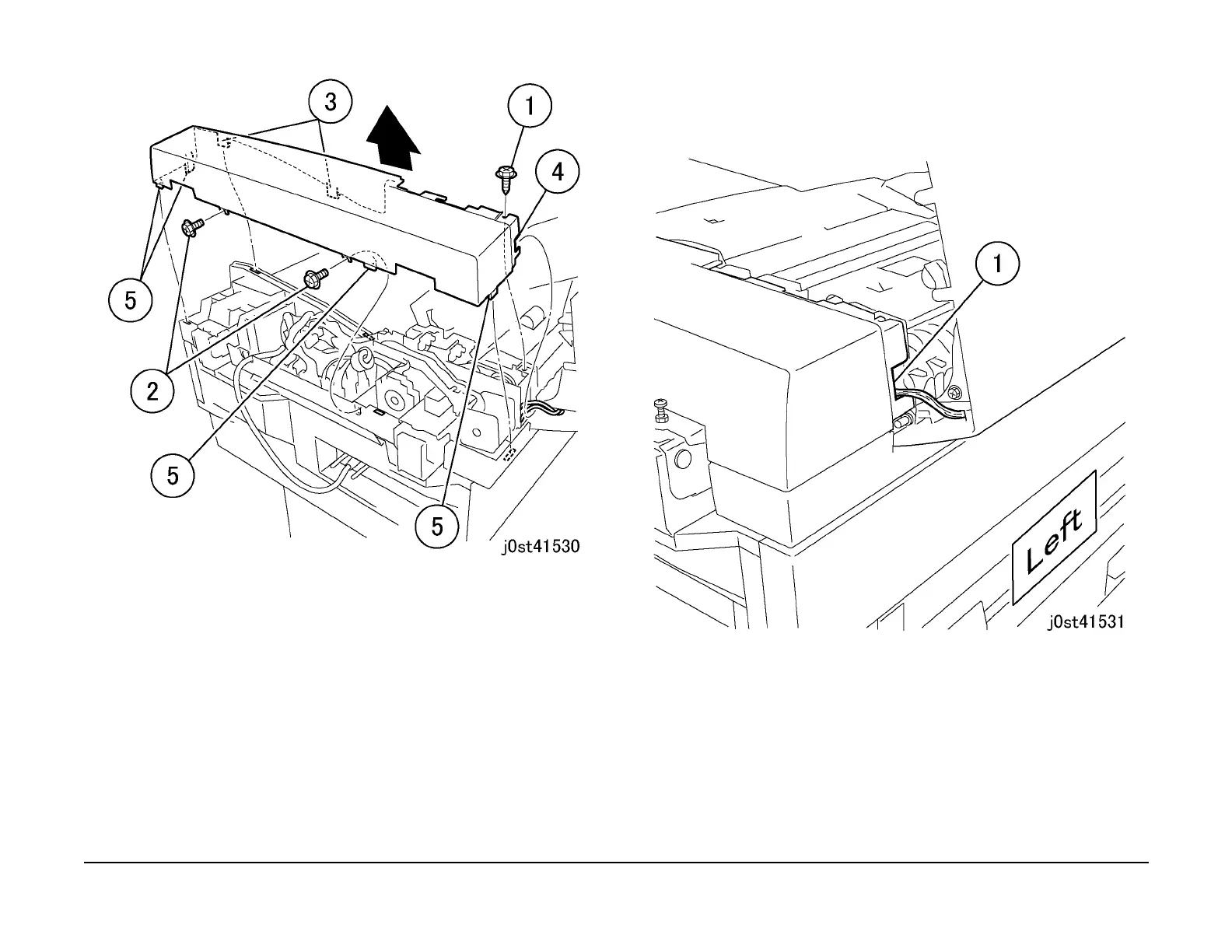

Figure 1 Removing the DADF Rear Cover
Replacement
1. Pull the harness to the notch of the DADF Rear Cover when installing the DADF Rear
Cover. (Figure 2)
1. Pull the harness to the notch of DADF Rear Cover.
Figure 2 Installing the DADF Rear Cover
