Xerox WorkCentre 7132 Service Documentation

January 2007
5-68
WorkCentre 7132
PL 16.5
Reversion 4.0
Parts-list

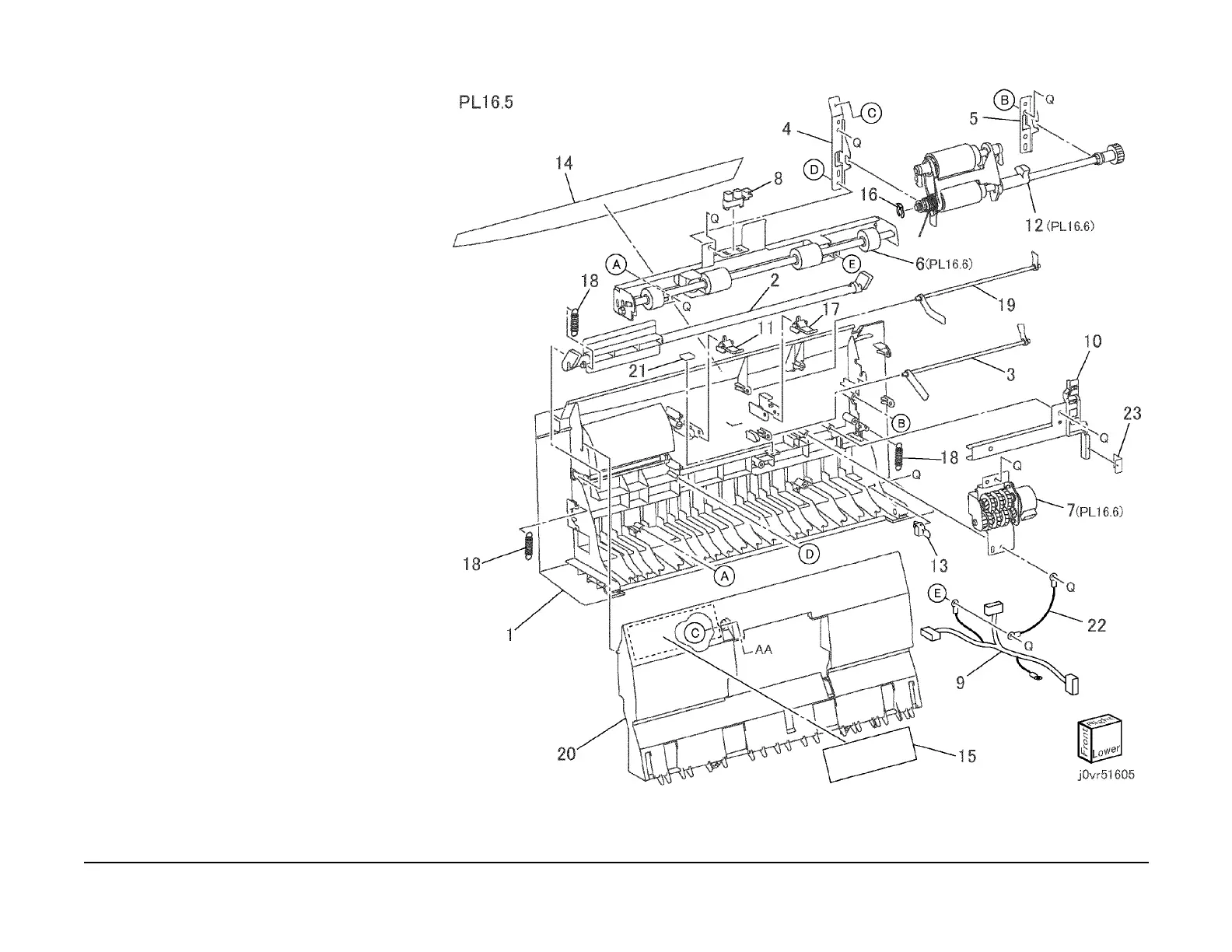

PL 16.5 Top Cover Component
Item Part Description
1 – Cover (P/O PL 16.4 Item 4) (REP
15.4.2)
2 – Handle Lever (P/O PL 16.4 Item 4)
3 – Actuator (Feed Out) (P/O PL 16.4
Item 4)
4 – Feeder Bracket (Front) (P/O PL
16.4 Item 4)
5 – Feeder Bracket (Rear) (P/O PL
16.4 Item 4)
6 059K31291 Takeaway Pinch Roll
7 127K38411 DADF Nudger Motor
8 – DADF Nudger Sensor (P/O PL 16.4
Item 4)
9 – Nudger Harness (P/O PL 16.4 Item
4)
10 – Harness Guide (P/O PL 16.4 Item
4)
11 – Front Guide-Set (P/O PL 16.4 Item
4)
12 059K45220 Feeder Assembly
13 – Harness Guide (P/O PL 16.4 Item
4)
14 – Label (Size) (P/O PL 16.4 Item 4)
15 – Label (Jam Clear) (P/O PL 16.4
Item 4)
16 028E94260 KL-Clip
17 – Rear Guide Set (P/O PL 16.4 Item
4)
18 – Exit Spring (P/O PL 16.4 Item 4)
19 – Actuator (Set) (P/O PL 16.4 Item 4)
20 – Chute (P/O PL 16.4 Item 4)
21 – Actuator Pad (P/O PL 16.4 Item 4)
22 – Ground Wire (P/O PL 16.4 Item 4)
23 – Harness Seal (P/O PL 16.4 Item 4)
