January 2007
5-70
WorkCentre 7132
PL 16.7
Reversion 4.0
Parts-list

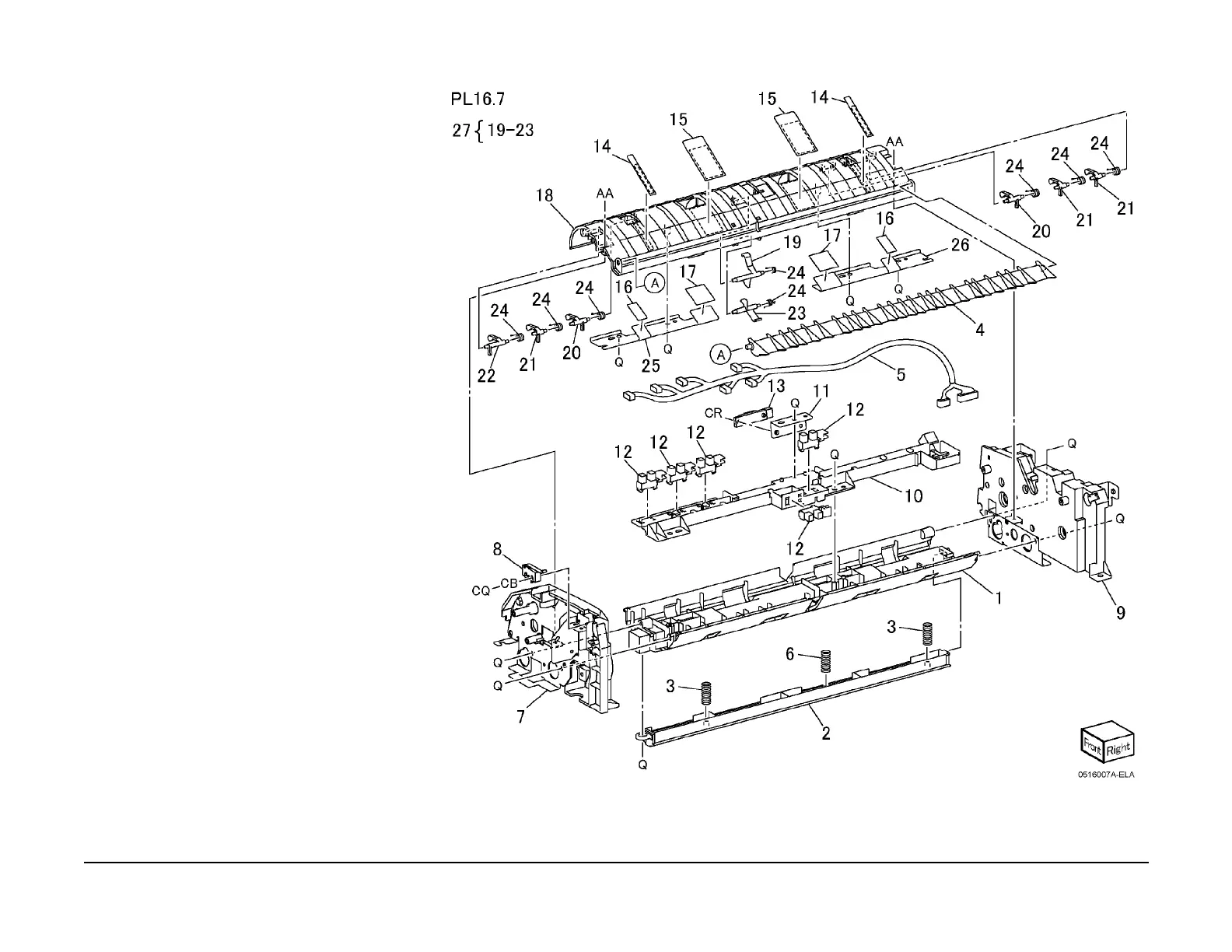

PL 16.7 DADF Feeder-Chute
Item Part Description
1 – Lower Chute (P/O PL 16.4 Item 5)
2 – Chute (Scan Position) (P/O PL 16.4
Item 5)
3 – Spring (P/O PL 16.4 Item 5)
4 – Invert Guide (P/O PL 16.4 Item 5)
5 962K19722 FE Harness
6 – CVT Spring (P/O PL 16.4 Item 5)
7 – Feed Frame (Front) (P/O PL 16.4
Item 5)
8 110K11981 DADF Interlock Switch
9 – Feed Frame (Rear) (P/O PL 16.4
Item 5)
10 – Guide Sensor (P/O PL 16.4 Item 5)
11 – Registration Sensor Bracket (P/O
PL 16.4 Item 5)
12 930W00111 DADF APS 1 Sensor, DADF APS 2
Sensor, DADF APS 3 Sensor,
DADF Preregistration Sensor,
DADF Invert Sensor
13 930W00211 Registration Sensor
14 – Seal (P/O PL 16.4 Item 5)
15 – Seal (P/O PL 16.4 Item 5)
16 – Eliminator (P/O PL 16.4 Item 5)
17 – Eliminator (P/O PL 16.4 Item 5)
18 – Feeder Chute (P/O PL 16.4 Item 5)
19 – Actuator (Preregistation) (P/O PL
16.7 Item 27)
20 – Actuator (APS 1) (P/O PL 16.7 Item
27)
21 – Actuator (APS 2) (P/O PL 16.7 Item
27)
22 – Actuator (APS3) (P/O PL 16.7 Item
27)
23 – Actuator (Invert) (P/O PL 16.7 Item
27)
24 – Torsion Spring (P/O PL 16.4 Item 5)
25 – Front Chute Bracket (P/O PL 16.4
Item 5)
26 – Chute Bracket (Rear) (P/O PL 16.4
Item 5)
27 604K20770 DADF Actuator Kit
