7. Remove the Bottom Plate. (Figure 2)
(1)Release Clamps (5) and remove the wire.
(2)Disconnect Connectors (8).
(3)Remove Wire from Hook.
(4)Remove Screws (4).
(5)Remove Bottom Plate.

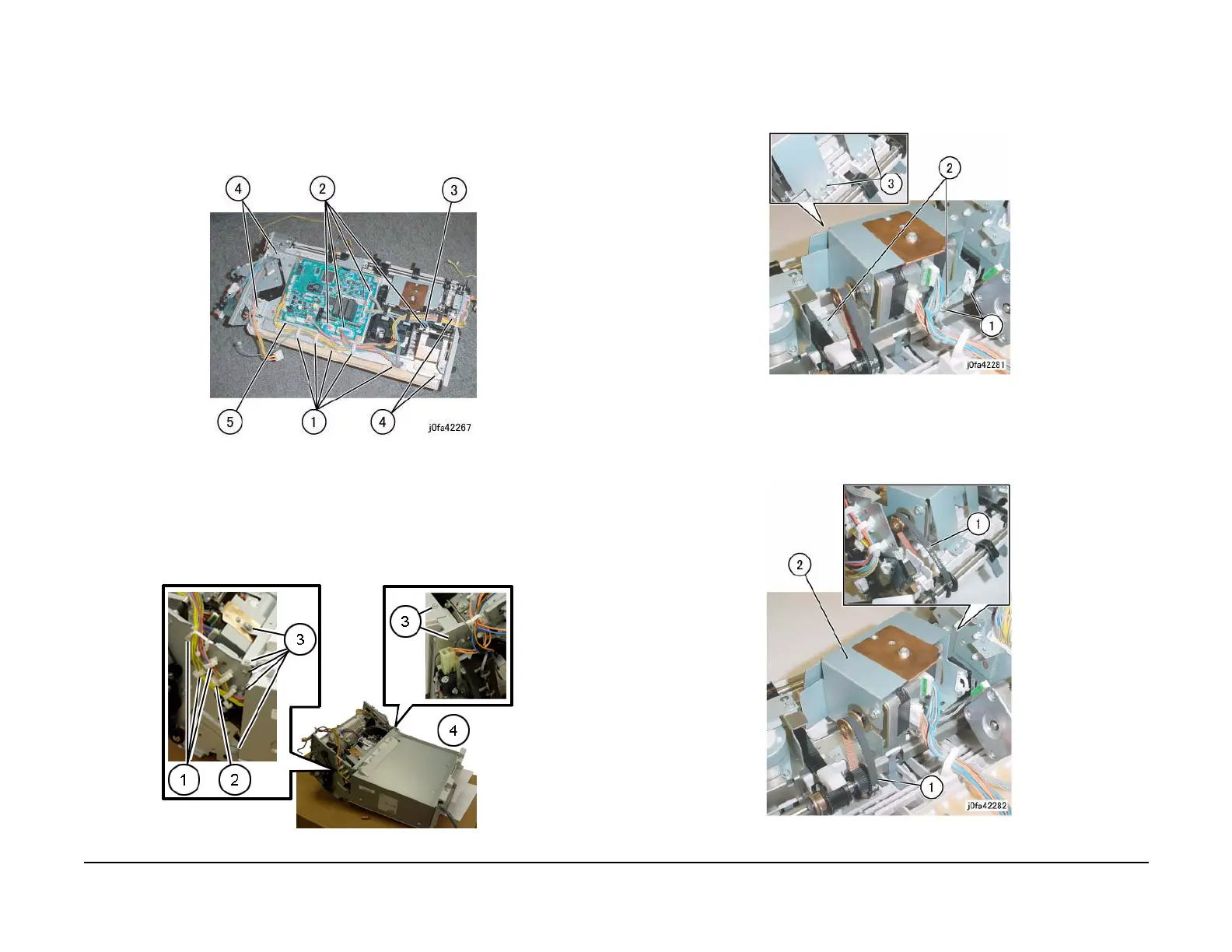

Figure 2 Removing the Bottom Plate (j0fa42267)
8. Remove the Stacker Tray (Figure 3)
(1)Release wires from Clamps (5)
(2)Disconnect the Connector
(3)Remove Screws (7)
(4)Remove the Stacker Tray
Figure 3 Removing the Stacker Tray (af422107)
9. Remove the screws securing the Eject/Set Clamp Motor Assembly. (Figure 4)
(1)Release Clamps (2) and remove the wire.
(2)Remove Screws (2).
(3)Remove Tapping Screws (2).
Figure 4 Removing Screws (j0fa42281)
10. Remove the Eject/Set Clamp Motor Assembly. (Figure 5)
(1)Remove Belts (2) from Pulley.
(2)Remove Eject/Set Clamp Motor Assembly.
Figure 5 Removing the Eject/Set Clamp Motor Assembly (j0fa42282)
