January 2007
5-67
WorkCentre 7132
PL 16.4
Parts-list
Reversion 4.0

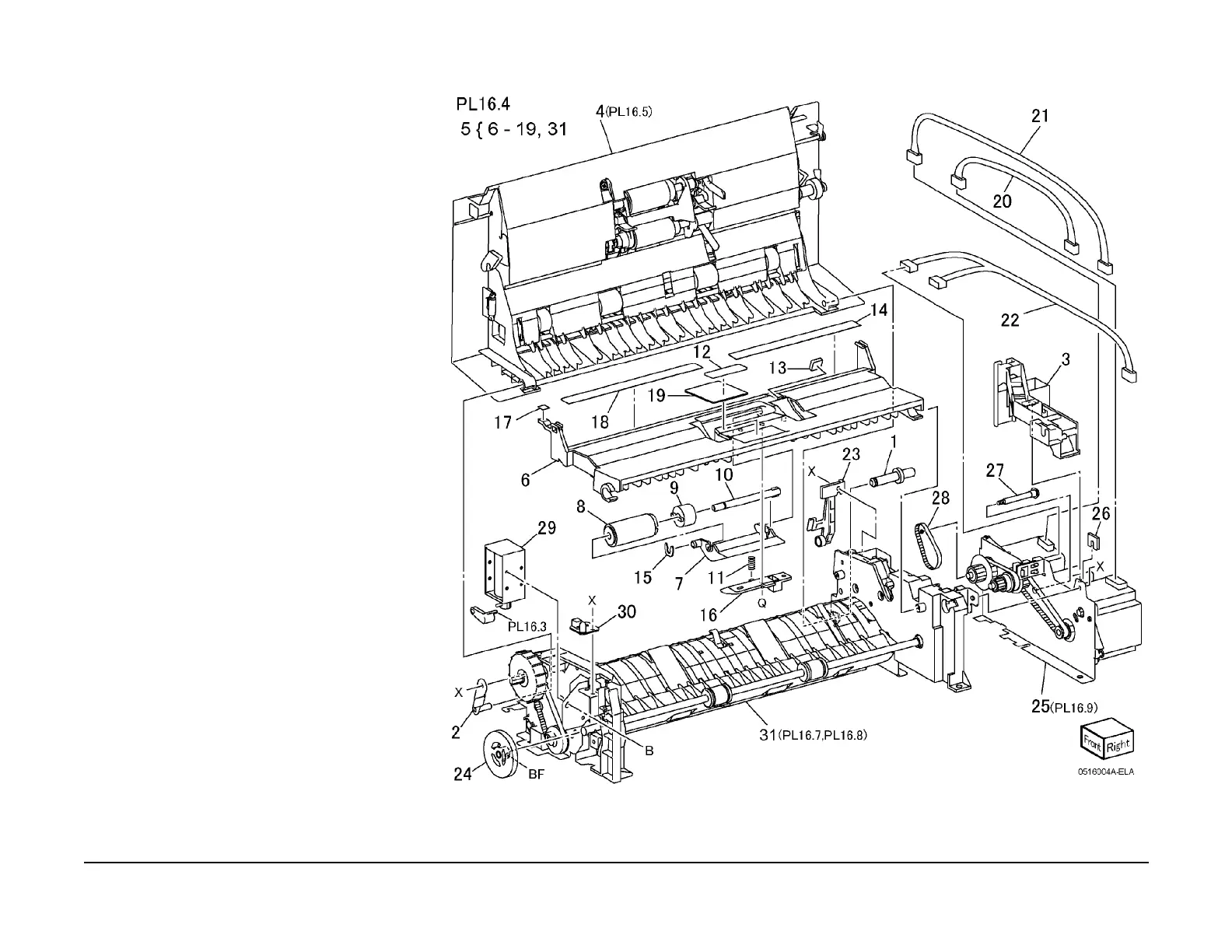

PL 16.4 DADF Feeder Component
Item Part Description
1 – Hinge Stud (P/O PL 16.2 Item 2)
2 – Bracket (P/O PL 16.4 Item 4)
3 – Harness Guide (P/O PL 16.4 Item
4)
4 059K45213 Upper Feed Assembly
5 059K45231 DADF Feeder Assembly
6 – Retard Chute (P/O PL 16.4 Item 5)
7 – Retard Housing (P/O PL 16.4 Item
5)
8 059K44920 Retard Roll (REP 15.4.1)
9 019K98770 Brake
10 – Retard Shaft (P/O PL 16.4 Item 5)
11 – Retard Spring (P/O PL 16.4 Item 5)
12 – Pad (P/O PL 16.4 Item 5)
13 019K99070 Actuator Pad
14 – Seal (P/O PL 16.4 Item 5)
15 – C-Clip (P/O PL 16.4 Item 5)
16 – Retard Guide (P/O PL 16.4 Item 5)
17 – Label (Retard) (P/O PL 16.4 Item 5)
18 – Front Seal (Not Spared)
19 – Retard Seal (Not Spared)
20 – FE Harness (Not Spared)
21 – Harness (Not Spared)
22 – Harness (Not Spared)
23 – Harness Guide (Not Spared)
24 – Damper Roll (Not Spared)
25 – Motor Assembly (Not Spared)
26 – Harness Guide (Not Spared)
27 – Screw (Not Spared)
28 604K20780 DADF Belt Kit
29 121K31912 Solenoid
30 160K97600 LED PWB
31 – DADF Feeder (P/O PL 16.4 Item 5)
