January 2007
4-111
WorkCentre 7132
REP 13.1.1
Repairs/Adjustments
Reversion 4.0
REP 13.1.1 Tray 2 Assembly (TTM)
Parts List on PL 15.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Pull out Tray 2.
2. Remove the paper from Tray 2.
3. Open the Left Cover Assembly.

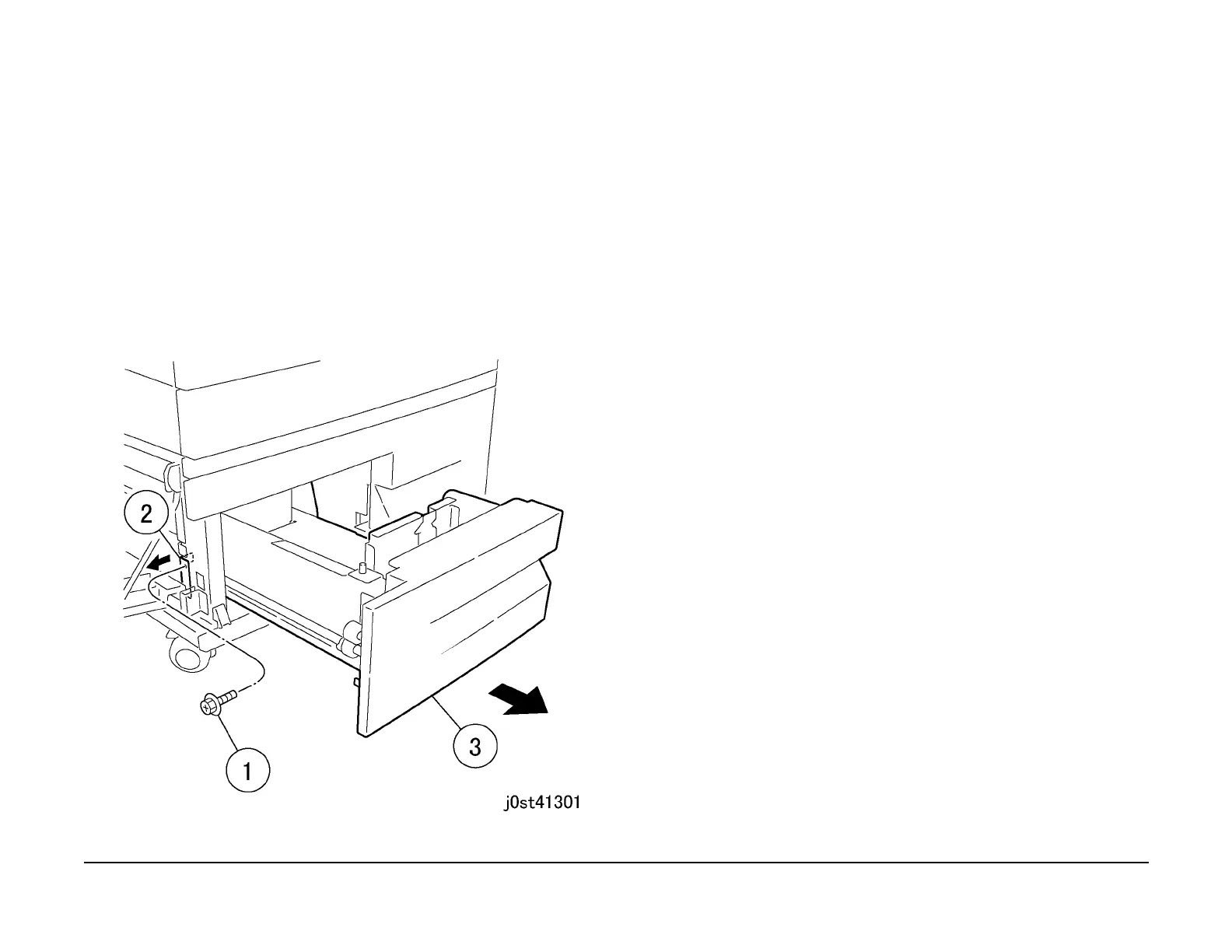

4. Remove the Tray 2 Assembly. (Figure 1)
1. Remove the screw.
2. Slide the stopper.
3. Remove the Tray 2 Assembly.
Figure 1 Removing the Tray 2 Assembly
Replacement
1. To install, carry out the removal steps in reverse order.
