WorkCentre 7132

PL 14.1

Reversion 4.0

Parts-list

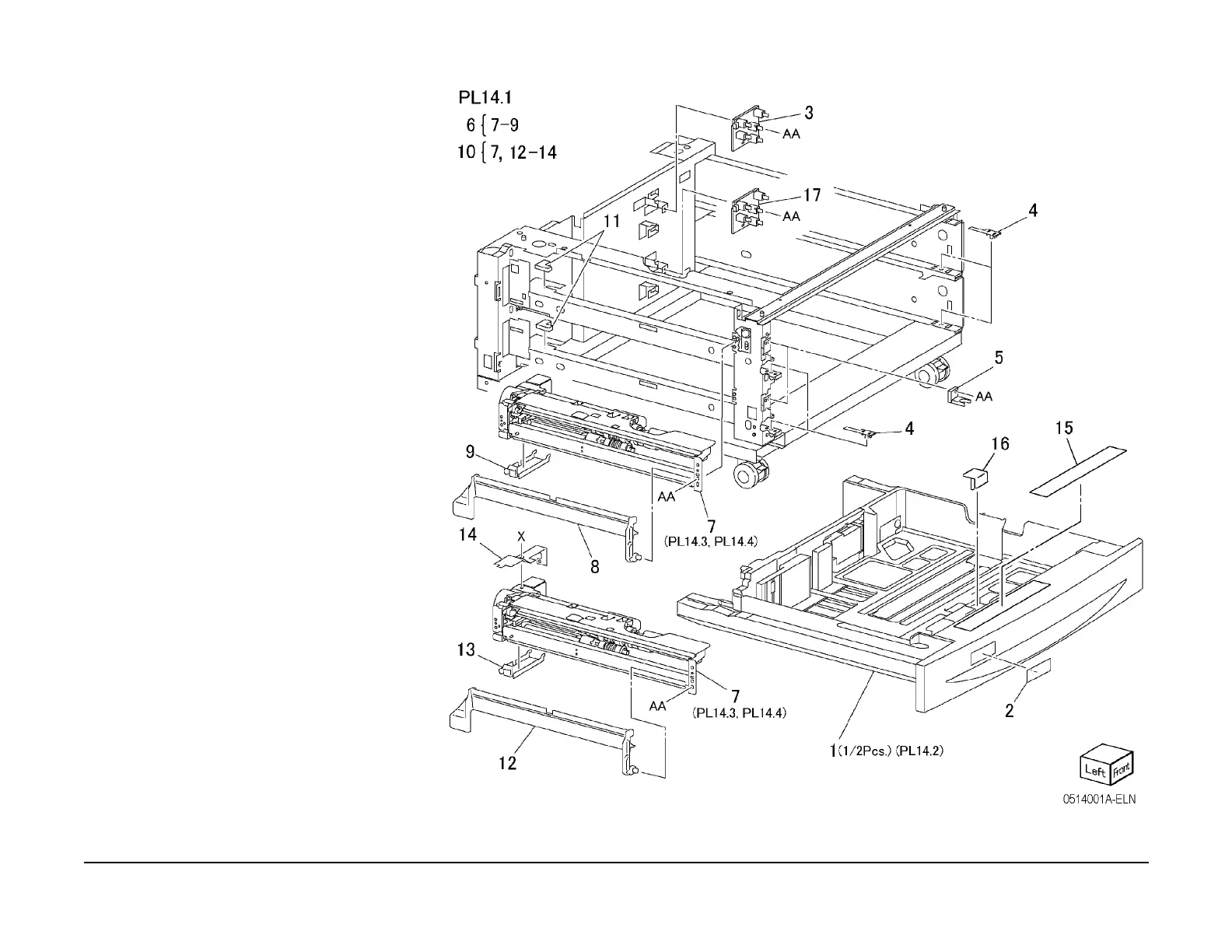

PL 14.1 Tray 2/3 Assembly, Feeder

Assembly-2TM

Item Part Description

1 – Tray 2/3 Assembly (Not Spared)

2 604K20550 Kit Tray Label

3 – Paper Size Switch (Not Spared)

(REP 12.6.1)

4 014E51110 Tray Spacer

5 003E61510 Tray Stopper

6 059K42930 Feeder Assembly

7 059K42524 Tray 2 Feeder (REP 12.1.1), Tray 3

Feeder (REP 12.1.2)

8 054E22622 Chute

9 – Sensor Cover (P/O PL 14.1 Item 6)

10 059K42940 Final Feeder Assembly

11 – Cushion (Not Spared)

12 – Feeder Out Chute (P/O PL 14.1

Item 10)

13 – Sensor Cover (P/O PL 14.1 Item

10)

14 – Feeder Cover (P/O PL 14.1 Item

10)

15 – Label (Not Spared)

16 – Slide Lock Block (Not Spared)

17 – Paper Size Switch (Not Spared)

(REP 12.6.1)
