Xerox WorkCentre 7132 Service Documentation

January 2007
4-205
WorkCentre 7132
REP 22.5.2
Repairs/Adjustments
Reversion 4.0
(1)Release Clamps (5) and remove the wire.
(2)Disconnect Connectors (8).
(3)Remove Wire from Hook.
(4)Remove Screws (4).
(5)Remove Bottom Plate.

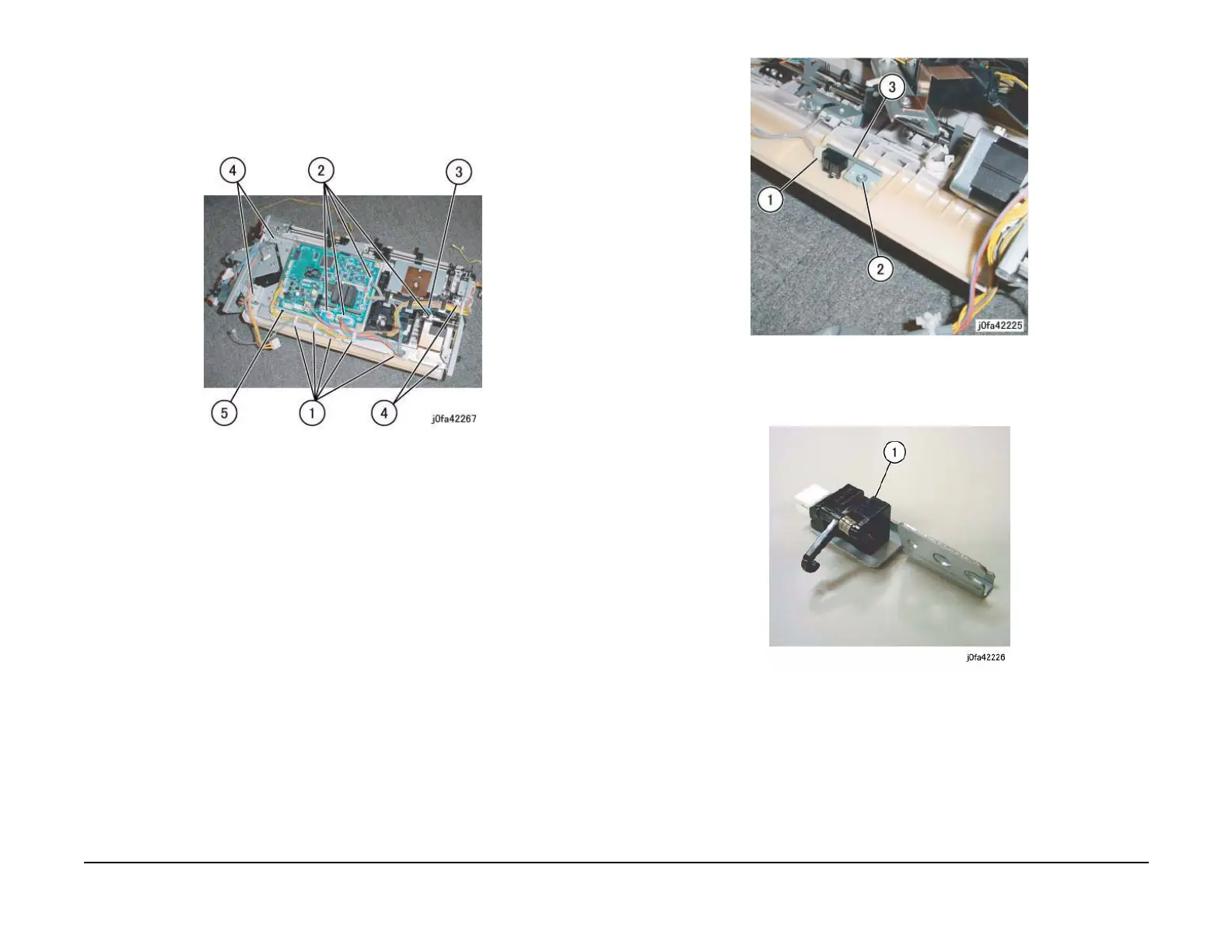

Figure 2 Removing the Bottom Plate (j0fa42267)
6. Remove the Finisher Entrance Sensor Assembly. (Figure 3)
(1)Disconnect Connector.
(2)Remove Tapping Screw.
(3)Remove Finisher Entrance Sensor Assembly.
Figure 3 Removing the Finisher Entrance Sensor Assembly (j0fa42225)
7. Remove the Finisher Entrance Sensor. (Figure 4)
(1)Remove Finisher Entrance Sensor from Bracket.
Figure 4 Removing the Finisher Entrance Sensor (j0fa42226)
Replacement
1. Reverse the removal procedure for replacement.
