Xerox WorkCentre 7132 Service Documentation

January 2007
4-104
WorkCentre 7132
REP 12.1.2
Reversion 4.0
Repairs/Adjustments
REP 12.1.2 Tray 3 Feeder (2TM)
Parts List on PL 14.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Pull out Tray 2/3.

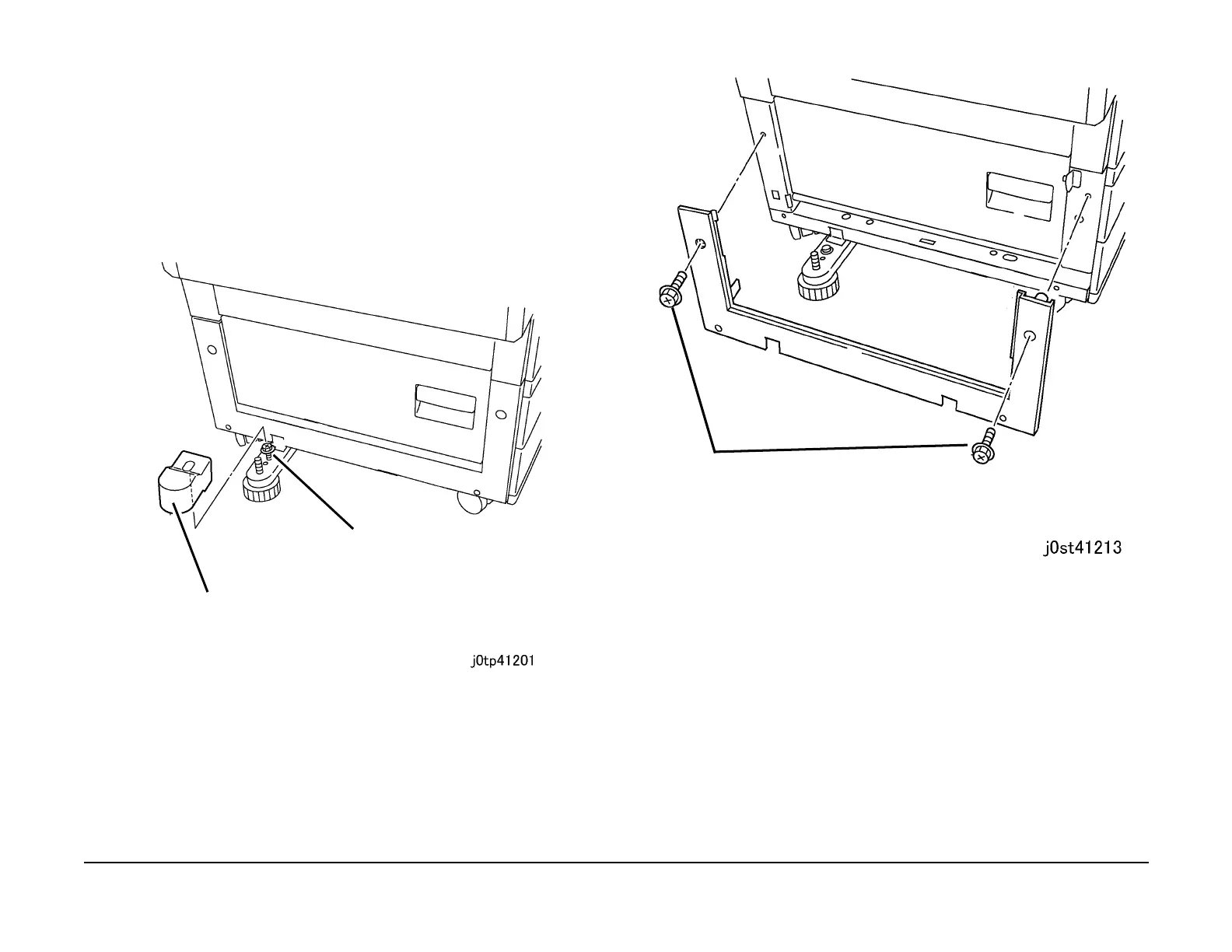

2. Remove the Foot Covers. (Figure 1)
Figure 1 Removing the Foot Covers
3. Remove the Left Lower Cover. (Figure 2)
Figure 2 Removing the Left Lower Cover
4. Open the Left Cover Assembly.
5. Remove the screws. (Figure 3)
1. Remove the screws.
1
Loosen the screw (1)
2
Remove the Cover
1
Remove the screws (2)
