WorkCentre 7132
REP 2.1.1, REP 2.3.1
Repairs/Adjustments
Reversion 4.0
Figure 5 Installing the sensor bracket
REP 2.3.1 Tray 1 Feed/Nudger/Retard Roll
Parts List on PL 2.3
Removal
NOTE: Only the replacement procedure for the Tray 1 Feed/Nudger/Retard Roll is described
here.
NOTE: When replacing the Tray 1 Feed/Nudger/Retard Roll, enter Diag. mode and clear the
counter for the Tray 1 Feed counter.
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
NOTE: The Feed, Nudger and Retard Roll must be replaced at the same time.
1. Remove Tray 1.
2. Slide the guide toward the front. (Figure 1)
1. Slide the guide.

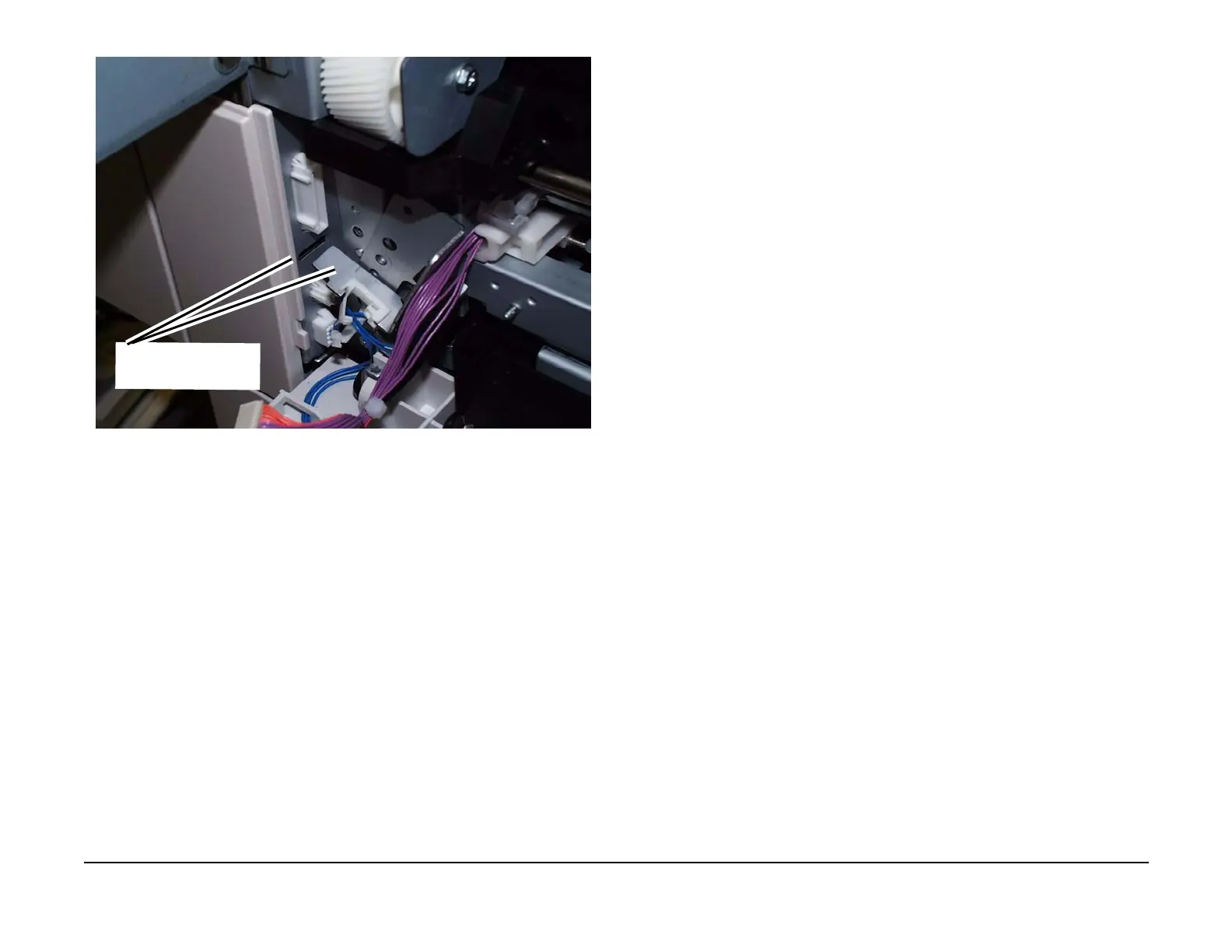

Be sure to insert the sen-
sor bracket tab into the
slot in the frame
