Xerox WorkCentre 7132 Service Documentation

January 2007
4-14
WorkCentre 7132
REP 2.1.1
Reversion 4.0
Repairs/Adjustments

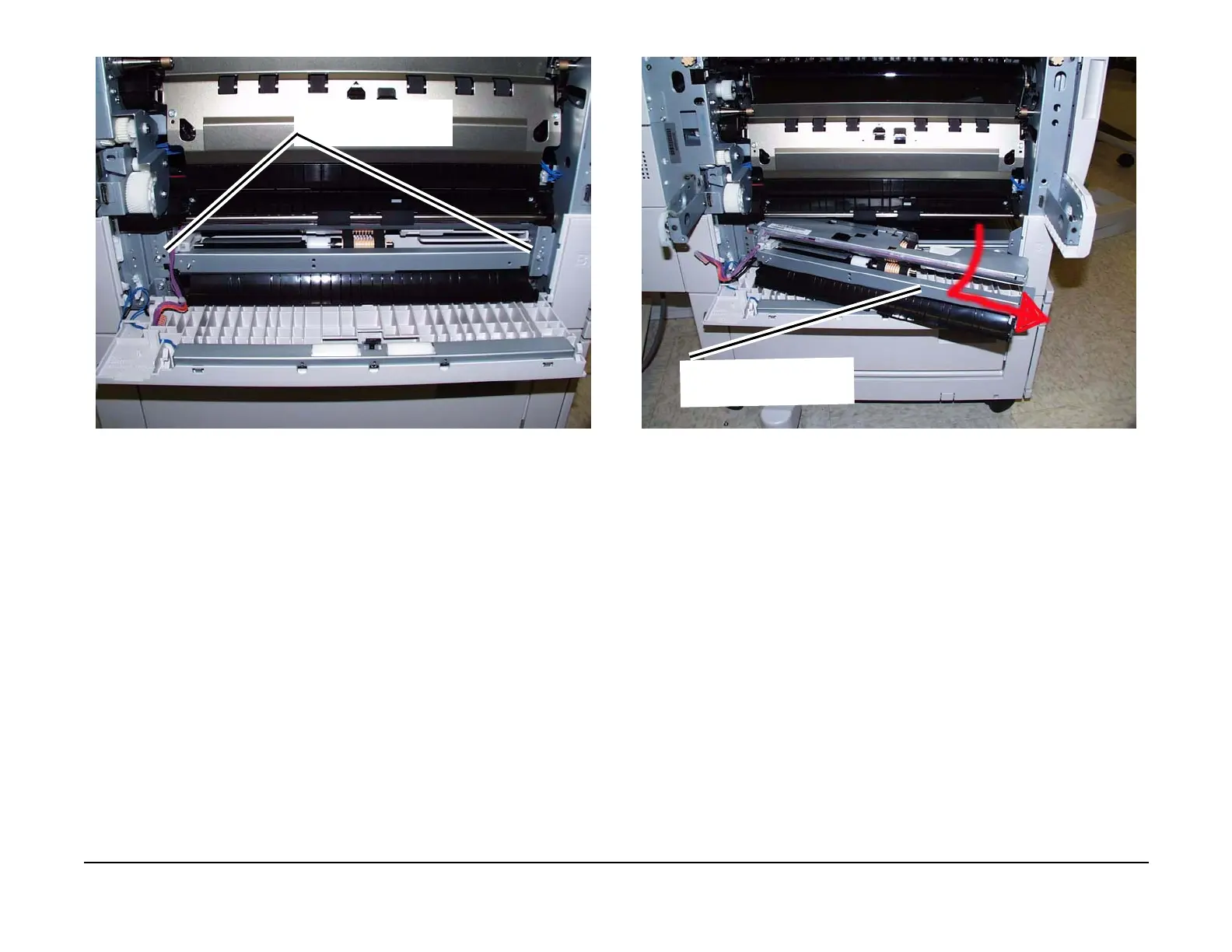

Figure 3 Preparing to remove the Tray 1 Feeder
9. Move the outboard end of the Tray 1 Feeder toward the left of the machine. Remove the
Tray 1 Feeder from the machine. (Figure 4)
Figure 4 Removing the Tray 1 Feeder
Replacement
When installing the sensor bracket, be sure to insert the bracket tab into the cut out in the
frame before installing the screw. (Figure 5)
1
Remove the screws (2)
Slide out the outboard end and
move toward the outboard end
to remove the Tray 1 Feeder
