January 2007
4-130
WorkCentre 7132
REP 15.2.3, REP 15.2.4
Reversion 4.0
Repairs/Adjustments
REP 15.2.3 DADF Front Cover
Parts List on PL 16.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Open the Top Cover Assembly.
2. Remove the DADF Front Cover. (Figure 1)
1. Remove the Tapping Screw (1).
2. Remove the tabs (x2) from the Tab Slot and remove the DADF Front Cover.

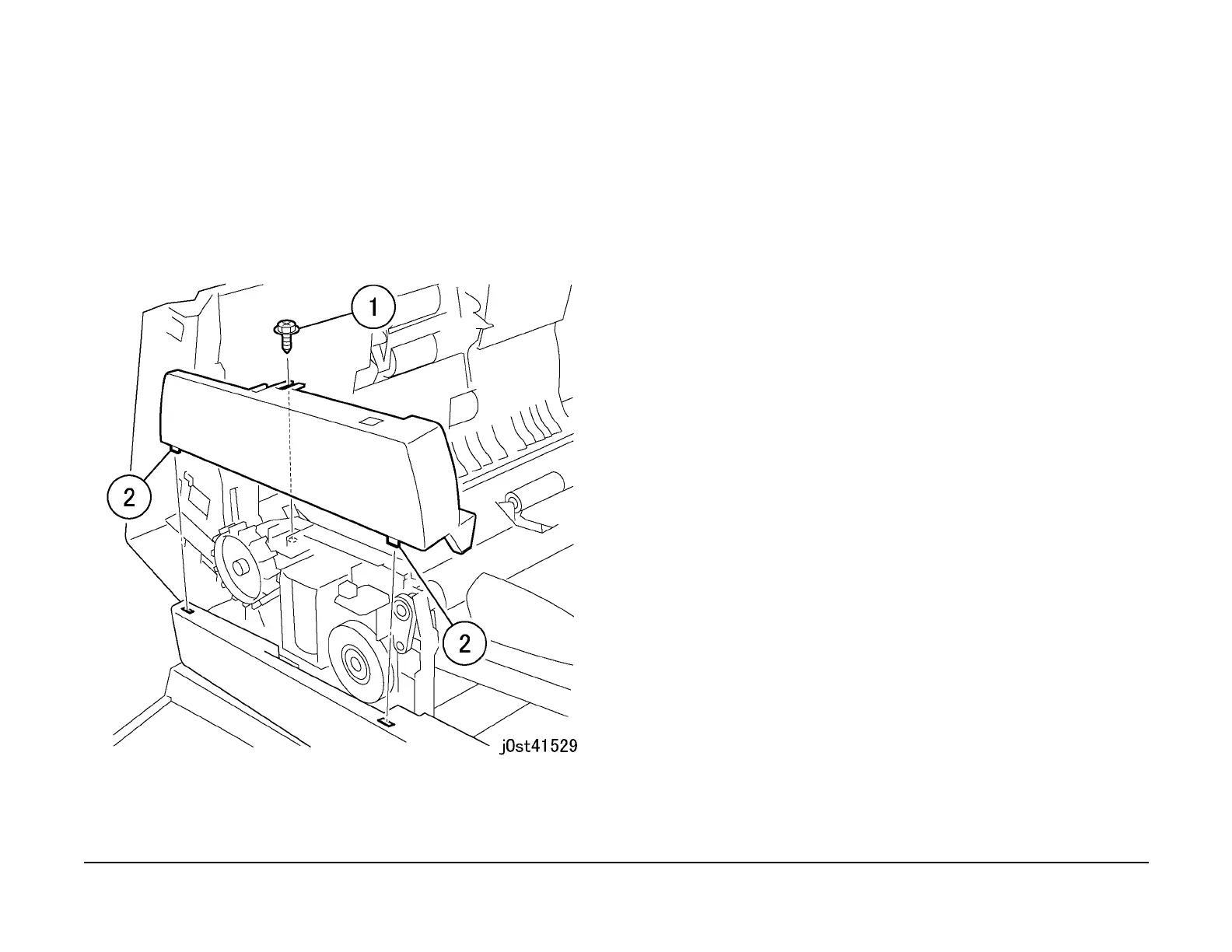

Figure 1 Removing the DADF Front Cover
Replacement
1. To install, carry out the removal steps in reverse order.
REP 15.2.4 DADF Rear Cover
Parts List on PL 16.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Open the Top Cover.
2. Open the DADF Document Tray.
3. Remove the DADF Rear Cover. (Figure 1)
1. Remove the Tapping Screw (1).
2. Remove the screw (2).
3. Release the hooks (x2).
4. Remove the harness from the notch of the DADF Rear Cover.
5. Remove the tabs (x4) from the Tab Slot and remove the Data Rear Cover.
To Next Page
