January 2007
4-129
WorkCentre 7132
REP 15.2.2
Repairs/Adjustments
Reversion 4.0

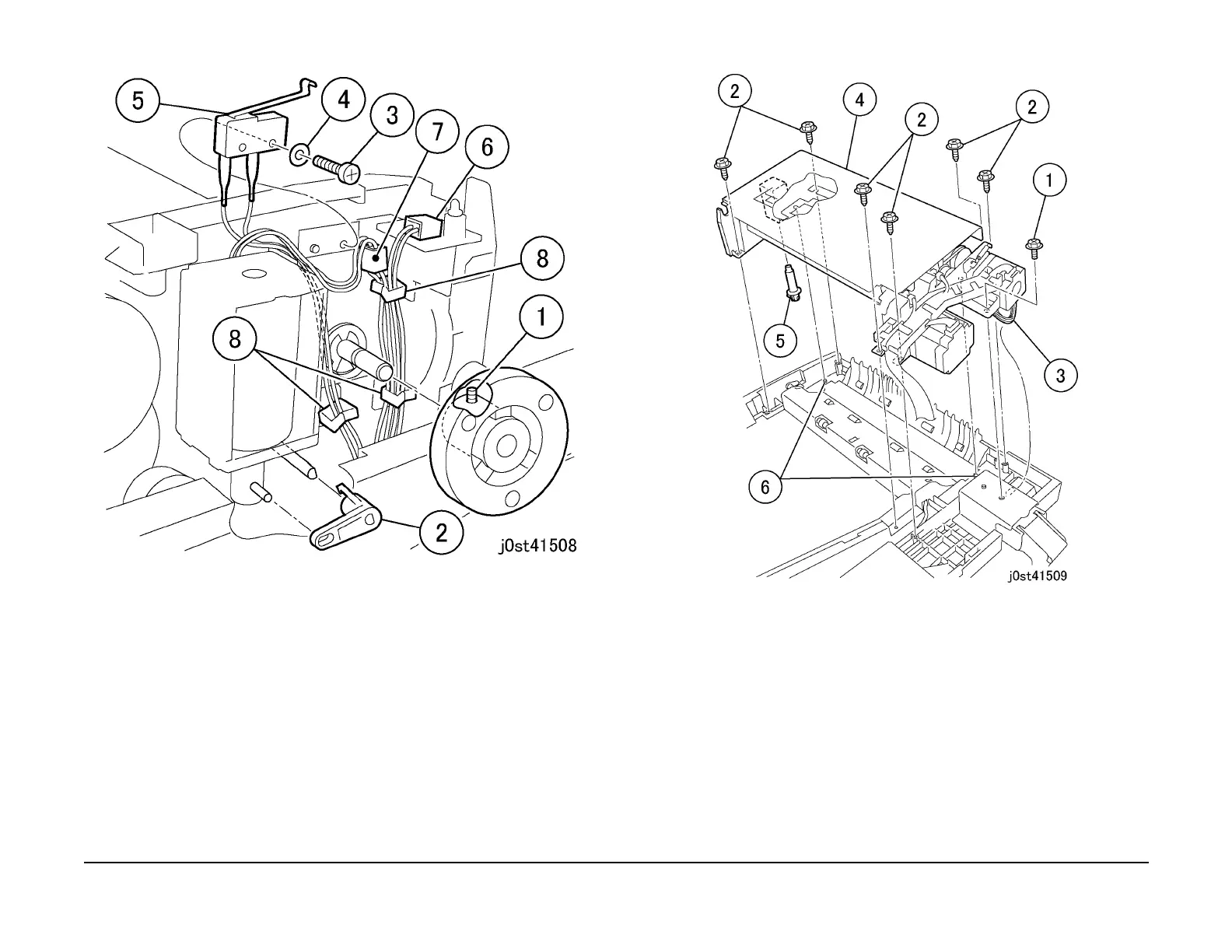

Figure 2 Removing the Lever and Wire Harness
7. Remove the DADF Feeder Assembly. (Figure 3)
1. Remove the screws (1).
2. Remove the Tapping Screws (6).
3. Release the wire harness from clamp.
4. Remove the DADF Feeder Assembly.
5. Remove the plunger.
6. When installing: Align the boss with the boss hole.
Figure 3 Removing the DADF Feeder Assembly
Replacement
1. To install, carry out the removal steps in reverse order.
2. When replacing, enter Diag. mode. Clear the [HFSI] counter.
To Next Page
