Repairs/Adjustments

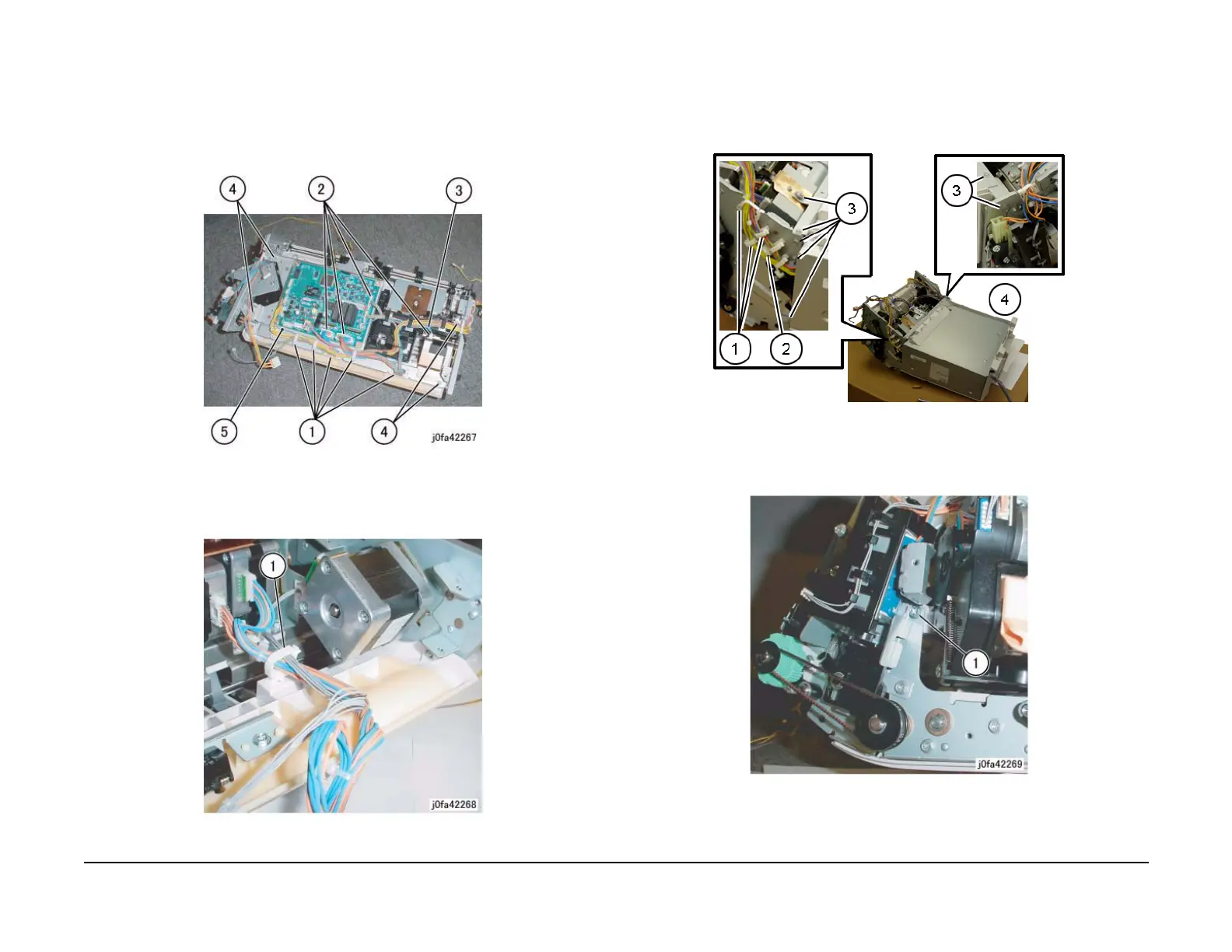

8. Remove the Bottom Plate. (Figure 2)
(1)Release Clamps (5) and remove the wire.
(2)Disconnect Connectors (8).
(3)Remove Wire from Hook.
(4)Remove Screws (4).
(5)Remove Bottom Plate.
Figure 2 Removing the Bottom Plate (j0fa42267)
9. Release the Clamp from the wire. (Figure 3)
(1)Release Clamp and remove the wire.
Figure 3 Releasing the Clamp (j0fa42268)
10. Remove the Stacker Tray (Figure 4)
(1)Release wires from Clamps (5)
(2)Disconnect the Connector
(3)Remove Screws (7)
(4)Remove the Stacker Tray
Figure 4 Removing the Stacker Tray (af422107)
11. Remove the front Tapping Screw. (Figure 5)
(1)Remove Tapping Screw.
Figure 5 Removing the Tapping Screw (j0fa42269)
12. Remove the rear Screw. (Figure 5)
(1)Remove Screw.
