January 2007
4-119
WorkCentre 7132
REP 13.6.1
Repairs/Adjustments
Reversion 4.0
REP 13.6.1 Feed/Retard/Nudger Roll (TTM)
Parts List on PL 15.7
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
NOTE: The Feed, Retard, and Nudger Roll must be replaced at the same time.
1. Remove the Paper Tray of the Feed Roll, Retard Roll, and Nudger Roll to be removed.
• Tray 2 (REP 13.1.1)
• Tray 3 (REP 13.1.2)
2. Pull out tray and remove paper.

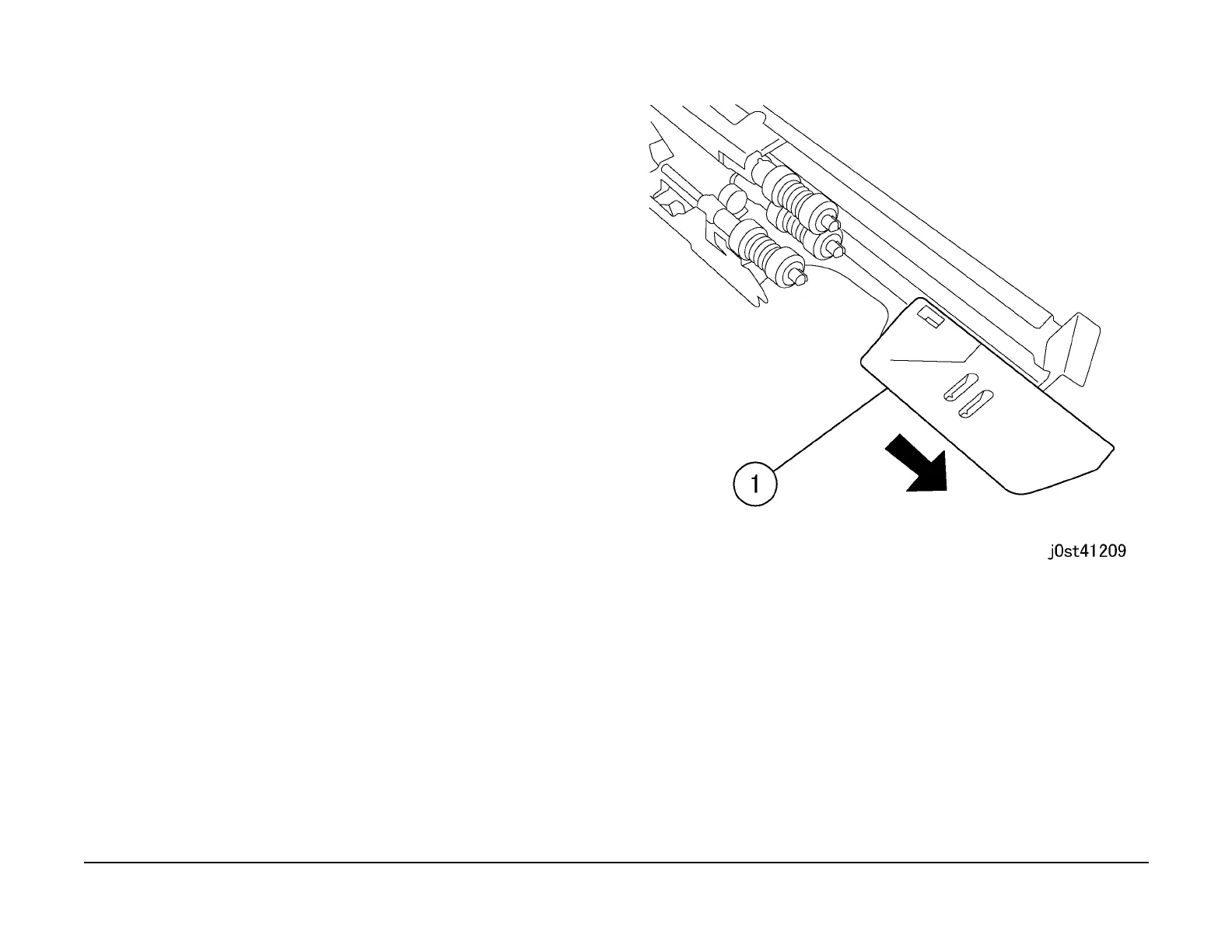

3. Move the Front Chute in the direction of the arrow. (Figure 1)
1. Move the Front Chute.
Figure 1 Moving the Front Chute
4. Remove the Feed/Retard/Nudger Roll. (Figure 2)
1. Release the hooks (3) to remove the Feed Roll/Retard/Nudger Roll.
