Xerox WorkCentre 7132 Service Documentation

January 2007
4-118
WorkCentre 7132
REP 13.5.1
Reversion 4.0
Repairs/Adjustments

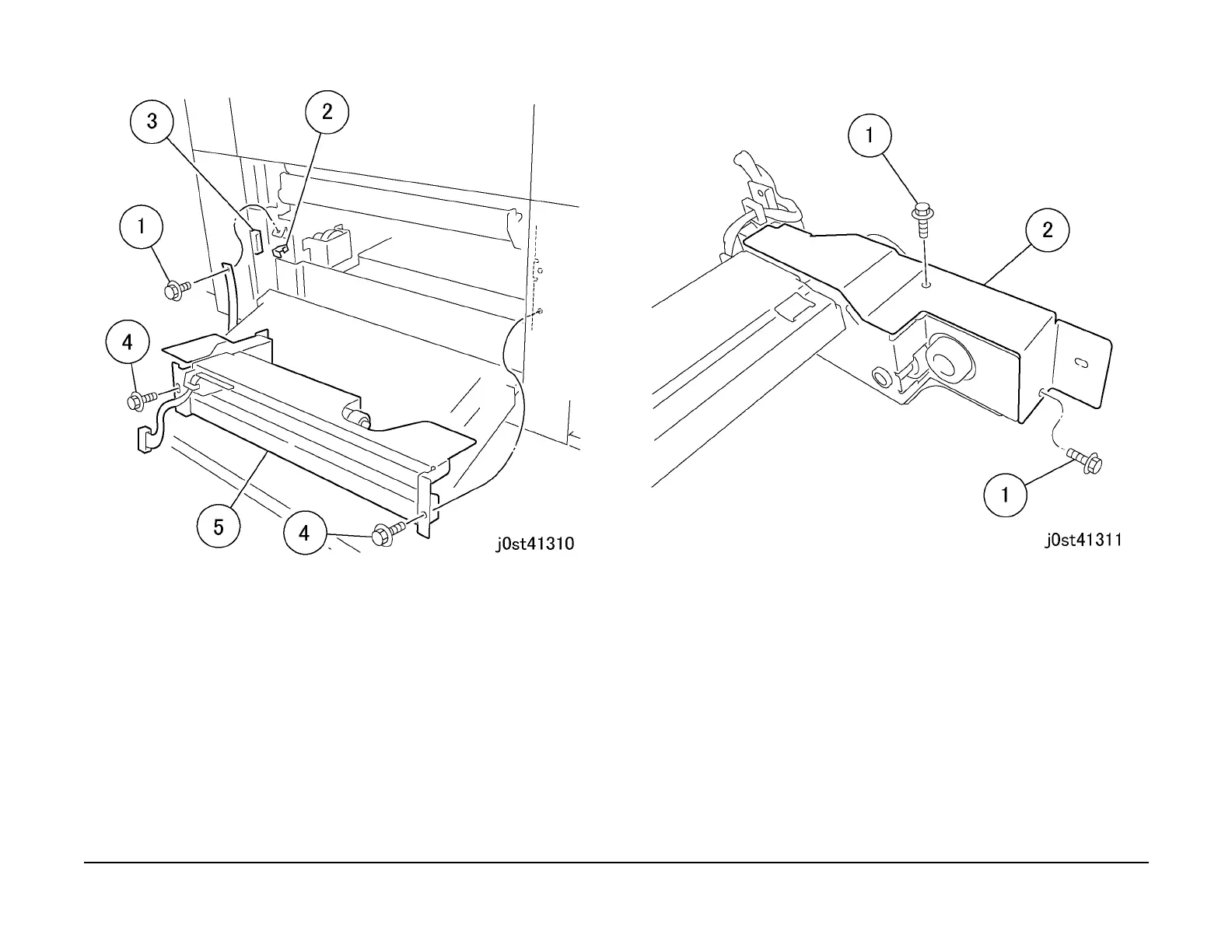

Figure 3 Removing the Tray 2 Assembly
6. Remove the Tray 2 Feeder. (Figure 4)
1. Remove the screws (2).
2. Remove the bracket.
Figure 4 Removing the Tray 2 Feeder
Replacement
1. To install, carry out the removal steps in reverse order.
