January 2007
5-35
WorkCentre 7132
PL 11.2
Parts-list
Reversion 4.0

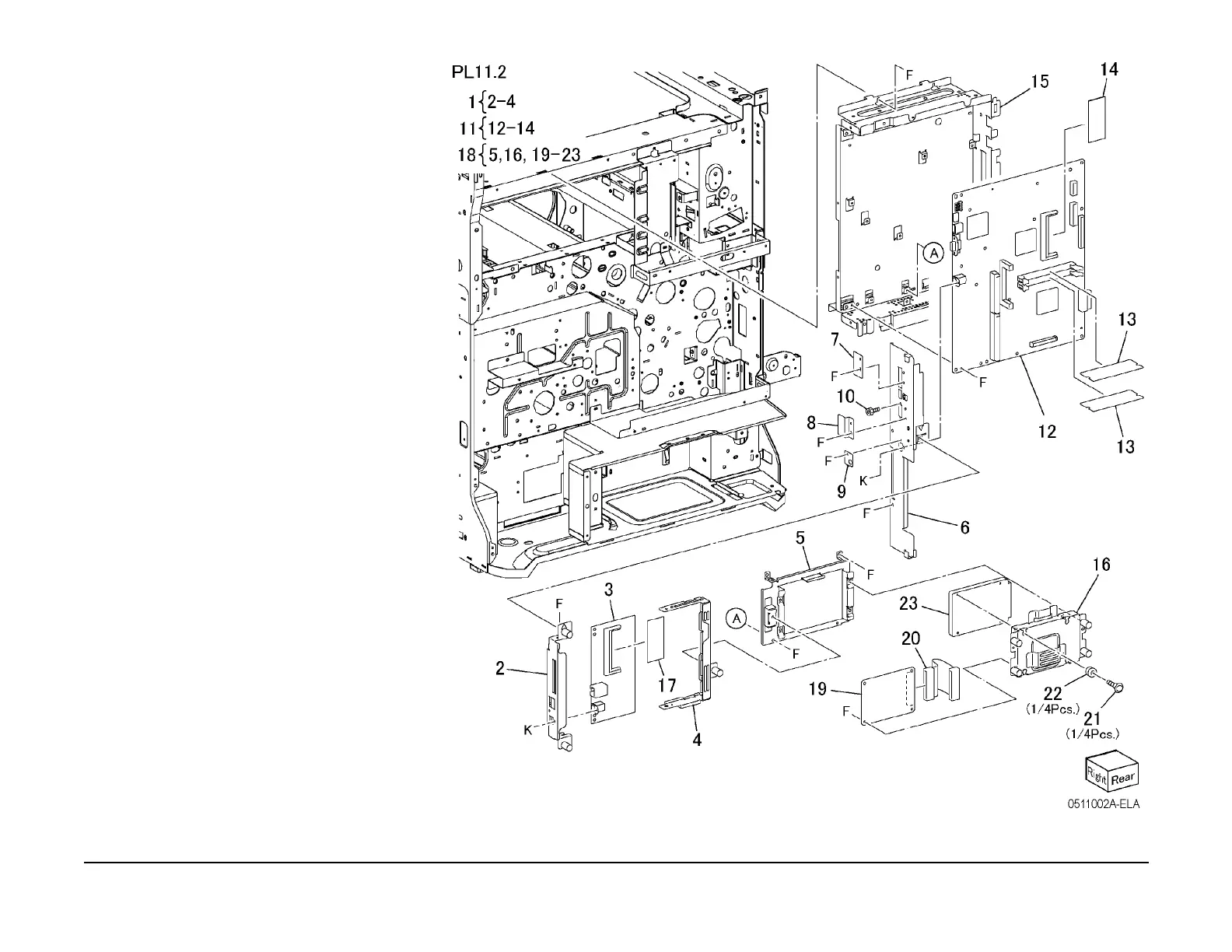

PL 11.2 ESS
Item Part Description
1 101K52632 Printer Chassis Assembly
2 – Printer Panel (P/O PL 11.2 Item 1)
3 – Printer PWB (P/O PL 11.2 Item 1)
4 – Rail Printer Bracket (P/O PL 11.2
Item 1)
5 – Base Chassis (Not Spared)
6 – Panel (Not Spared)
7 – Blind Chassis Bracket (Not Spared)
8 – Blind Dsub Bracket
9 – Blind PSW Bracket (Not Spared)
10 – Lock Screw (Not Spared)
11 – EVE Color PWB Assembly (Not
Spared) (REP 9.2.1)
12 960K18345 ESS PWB
13 133K24720 DDR DIMM 256mb
14 133K24740 PC133 So-0DIMM (128MB)
15 – ESS Chassis (Not Spared)
16 – HDD Bracket (P/O PL 11.2 Item 18)
17 540K02665 PS DIMM (Option)
18 960K16132 HDD Chassis Assembly
19 – Eden2 PWB (P/O PL 11.2 Item 18)
20 – IDE Harness (P/O PL 11.2 Item 18)
21 – Screw (P/O PL 11.2 Item 18)
22 – Bumper (P/O PL 11.2 Item 18)
23 – IDE HDD (40gb) (P/O PL 11.2 Item
18)
