January 2007
5-45
WorkCentre 7132
PL 13.6
Parts-list
Reversion 4.0

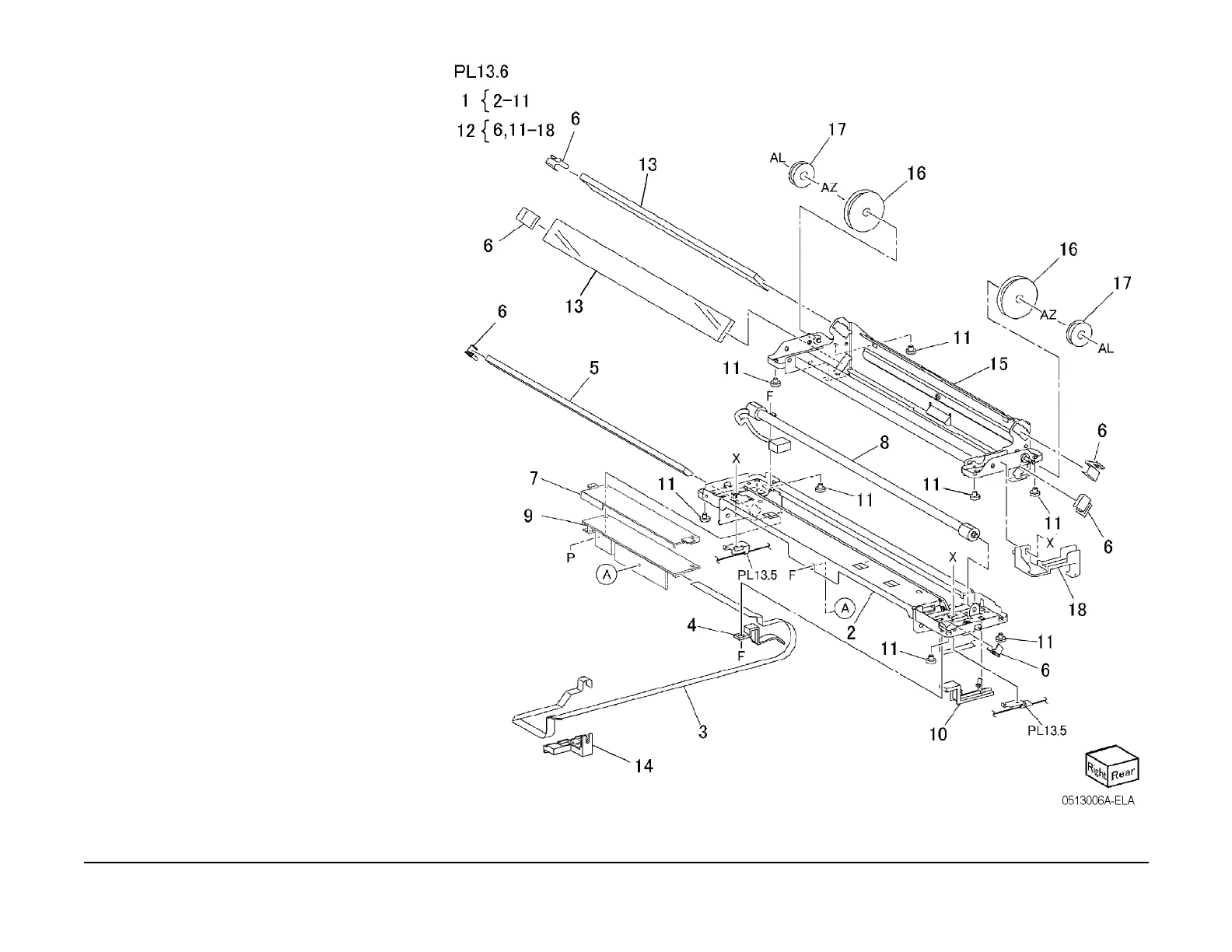

PL 13.6 Full/Half Rate Carriage
Item Part Description
1 041K94830 Full Rate Carriage Assembly
2 – Full Rate Carriage (P/O PL 13.6
Item 1)
3 117E26350 Flat Cable (REP 11.6.2)
4 – Cord Guide (P/O PL 13.6 Item 1)
5 062E10040 Mirror No. 1
6 – Mirror Clip (P/O PL 13.6 Item 1)
7 – Insulator (P/O PL 13.6 Item 1)
8 122K93910 Lamp (REP 11.6.1)
9 105E16700 Exposure Lamp Power Supply
10 – Cable Guide (P/O PL 13.6 Item 1)
11 – Pad (P/O PL 13.6 Item 1)
12 041K94441 Half Rate Carriage Assembly
13 – No.2 Mirror, No.3 Mirror (P/O PL
13.6 Item 12)
14 – Cord Holder (Not Spared)
15 – Half Rate Carriage (P/O PL 13.6
Item 12)
16 – Pulley (P/O PL 13.6 Item 12)
17 020E37030 Pulley
18 – Cord Guide (P/O PL 13.6 Item 12)
