January 2007
4-198
WorkCentre 7132
REP 22.3.2, REP 22.4.1
Reversion 4.0
Repairs/Adjustments
9. Remove the Sub Paddle Solenoid. (Figure 4)
(1)Remove Screws (2).
(2)Remove the Sub Paddle Solenoid.

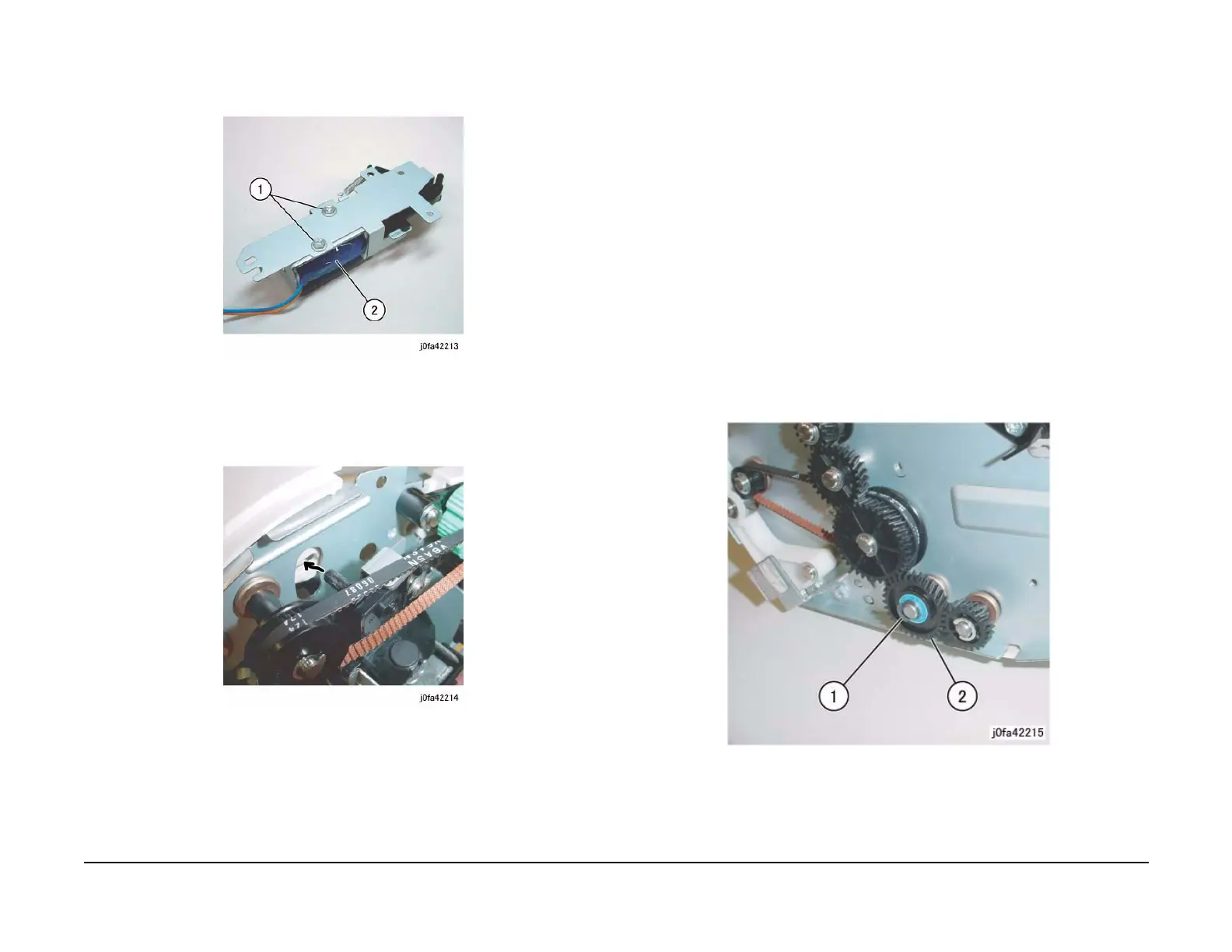

Figure 4 Removing the Sub Paddle Solenoid (j0fa42213)
Replacement
1. Reverse the removal procedure for replacement.
2. Install the Sub Paddle Assembly as shown in the figure. (Figure 5)
Figure 5 Installing the Sub Paddle Assembly (j0fa42214)
REP 22.4.1 Exit Roll Assembly
Parts List on PL 22.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Before turning OFF the power switch, note the following to prevent loss of customer data.
[with the FAX function]
Check that the “Job in Memory” lamp is off. Press the “Job Status” button and check that no job
is in progress.
[with the Printer function]
Check that “Ready to print/send” is displayed on the Control Panel.
1. Remove the A-Finisher from the machine.
2. Remove the Compile Assembly. (REP 22.9.1)
3. Remove the Pinch Roll. (REP 22.5.1)
4. Remove the Gear. (Figure 1)
(1)Remove KL-Clip.
(2)Remove Gear.
Figure 1 Removing the Gear (j0fa42215)
5. Remove the front Bearing. (Figure 2)
(1)Remove E-Clip.
(2)Remove Bearing.
To Next Page
