January 2007
7-128
WorkCentre 7132
Chain 8 Paper Feed and Transportation
Reversion 4.0
Wiring-data

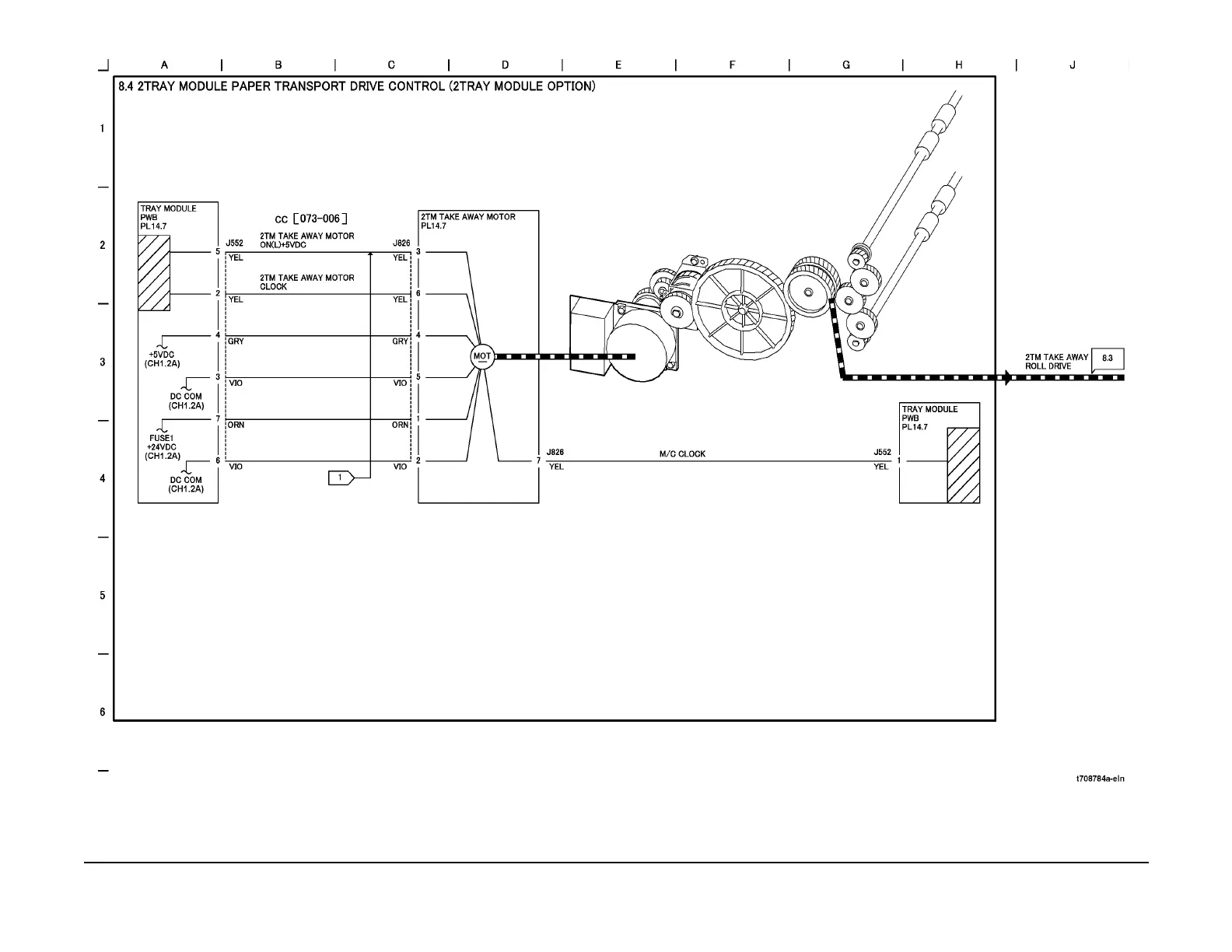

Figure 4 8.4 2TRAY MODULE PAPER TRANSPORT DRIVE CONTROL (2TRAY MODULE OPTION) (t708784a-eln)
