January 2007
4-20
WorkCentre 7132
REP 2.6.2
Reversion 4.0
Repairs/Adjustments
REP 2.6.2 L/H Upper Cover Unit
Parts List on PL 2.7
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Switch off the power and disconnect the connector.
2. Open the L/H Upper Cover.
3. Release the Cover Support while holding the L/H Upper Cover. (Figure 1)
1. Release the Cover Support.

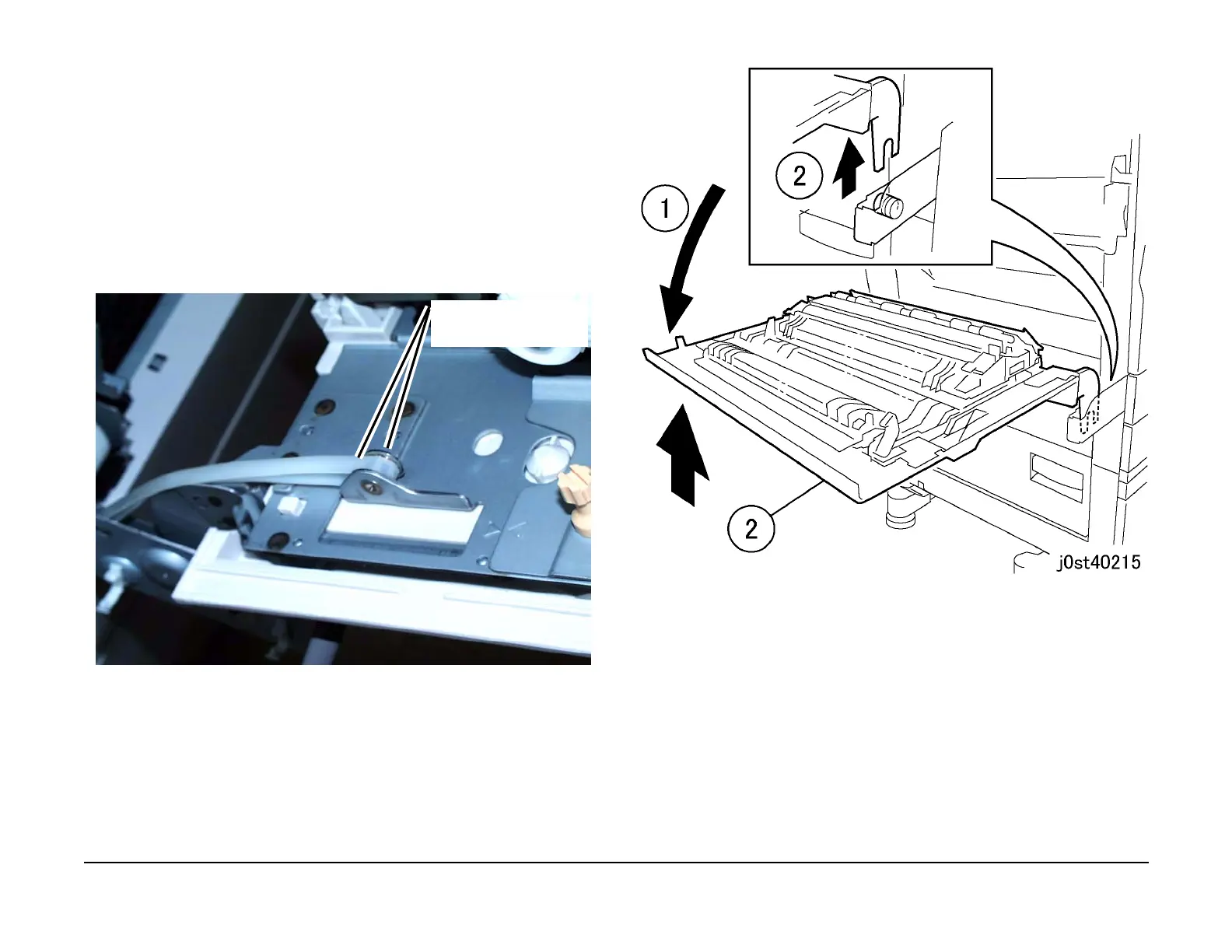

Figure 1 Releasing the Cover Support
4. Remove the L/H Upper Cover Unit. (Figure 2)
NOTE: If Duplex Module is present, disconnect the connector.
1. Open the L/H Upper Cover Unit until it becomes horizontal.
2. Lift up the unit and remove it.
Figure 2 Removing the L/H Upper Cover Unit
Release the Cover Support
from the Upper Cover by
slipping it over the washer
To Next Page
