Xerox WorkCentre 7132

January 2007
5-76
WorkCentre 7132
PL 17.3
Reversion 4.0
Parts-list

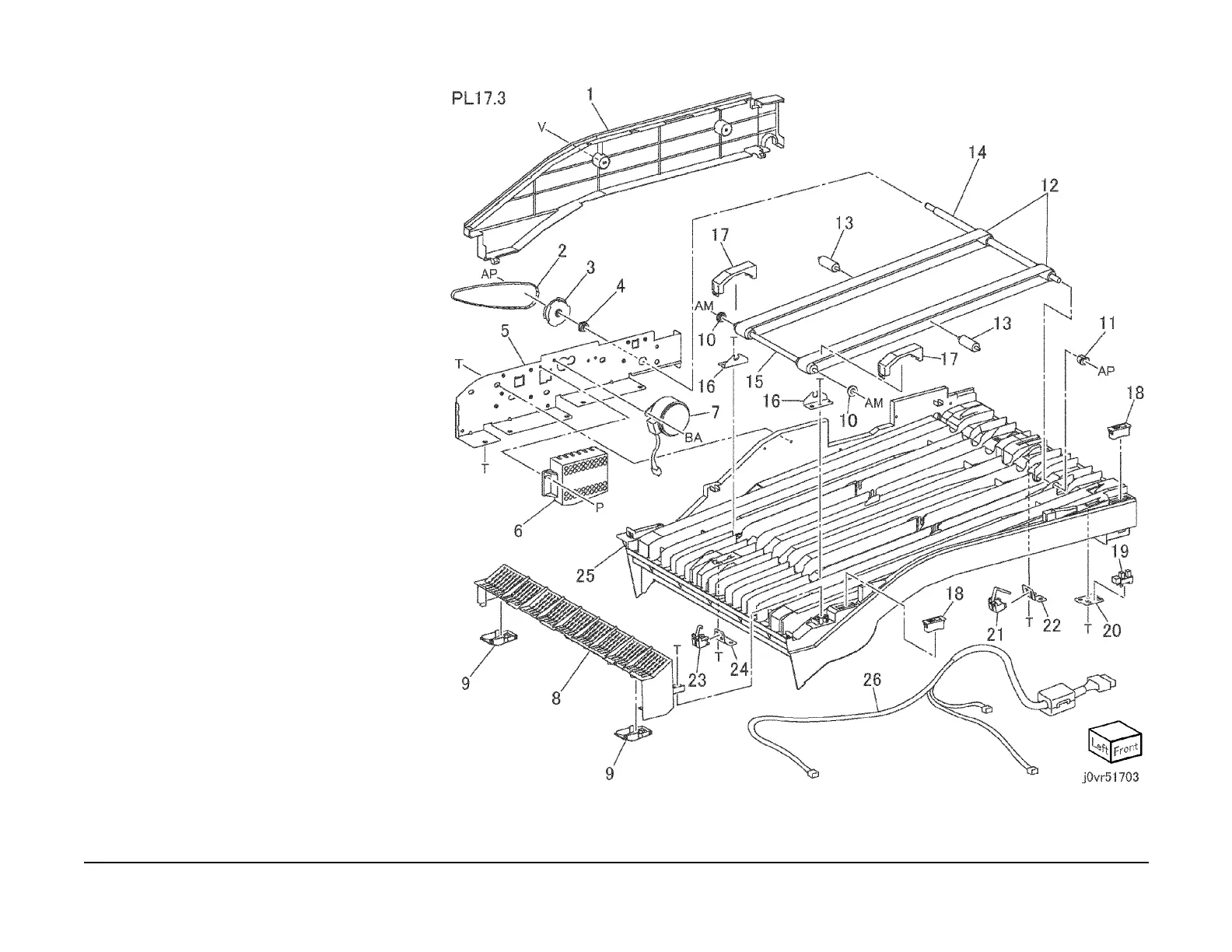

PL 17.3 H-Transport Assembly (2 of 2)
Item Part Description
1 – Rear Cover (P/O PL 17.1 Item 2)
2 – Belt (P/O PL 17.1 Item 2)
3 – Pulley (P/O PL 17.1 Item 2)
4 – Bearing (P/O PL 17.1 Item 2)
5 – Bracket (P/O PL 17.1 Item 2)
6 – Cover (P/O PL 17.1 Item 2)
7 127K39900 H-Transport Motor
8 – Top Cover (P/O PL 17.1 Item 2)
9 – Paper Guide (P/O PL 17.1 Item 2)
10 – Bearing (P/O PL 17.1 Item 2)
11 – Bearing (P/O PL 17.1 Item 2)
12 – Belt (P/O PL 17.1 Item 2) (REP
16.3.1)
13 – Roll (P/O PL 17.1 Item 2)
14 – Shaft Assembly (Right) (P/O PL
17.1 Item 2)
15 – Shaft Assembly (P/O PL 17.1 Item
2)
16 – Bracket (P/O PL 17.1 Item 2)
17 – Cover (P/O PL 17.1 Item 2)
18 – Magnet (P/O PL 17.1 Item 2)
19 130K88780 H-Transport Interlock Sensor
20 – Bracket (P/O PL 17.1 Item 2)
21 130K63280 H-Transport Exit sensor
22 – Bracket (P/O PL 17.1 Item 2)
23 130K88790 H-Transport Entrance Sensor
24 – Bracket (P/O PL 17.1 Item 2)
25 – Lower Chute (P/O PL 17.1 Item 2)
26 962K24360 Wire Harness
