Xerox WorkCentre 7132 Service Documentation

January 2007
5-8
WorkCentre 7132
PL 1.2
Reversion 4.0
Parts-list

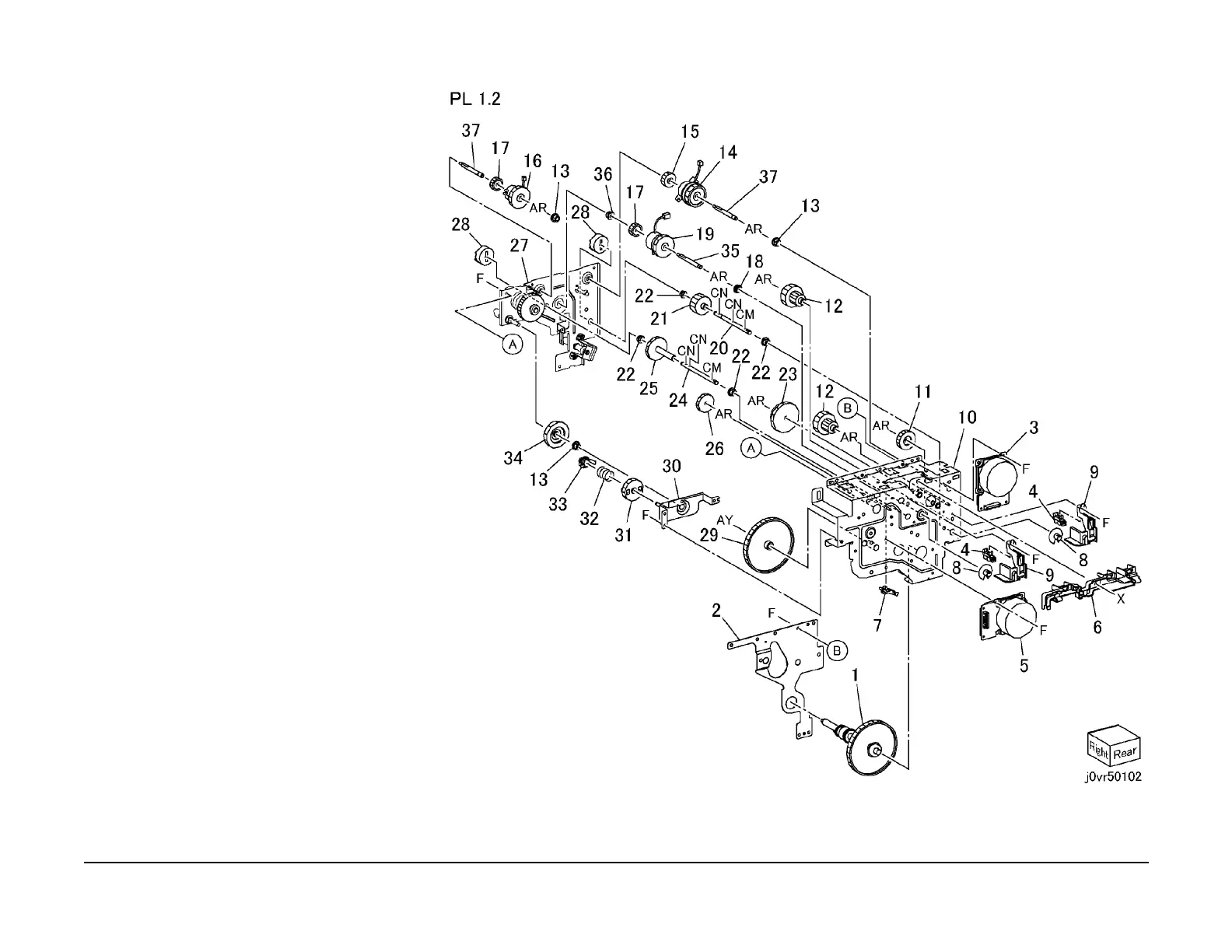

PL 1.2 Drum Drive Assembly
Item Part Description
1 – Drum Shaft (P/O PL 1.1 Item 1)
2 – Gear (144T) (P/O PL 1.1 Item 1)
3 – Bearing (P/O PL 1.1 Item 1)
4 930W00111 Photo INT Sensor
5 127K48680 Drum Motor
6 – Connector Bracket (P/O PL 1.1
Item 1)
7 – Harness Bracket (P/O PL 1.1 Item
1)
8 – Cam Wheel (P/O PL 1.1 Item 1)
9 – Sensor Bracket (P/O PL 1.1 Item 1)
10 – Upper Bracket (P/O PL 1.1 Item 1)
11 – Gear (50T) (P/O PL 1.1 Item 1)
12 – Gear (42/23T) (P/O PL 1.1 Item 1)
13 – Bearing (P/O PL 1.1 Item 1)
14 – Clutch (P/O PL 1.1 Item 1)
15 – Gear (27T) (P/O PL 1.1 Item 1)
16 – Clutch (P/O PL 1.1 Item 1)
17 – Gear (23T) (P/O PL 1.1 Item 1)
18 – Bearing (P/O PL 1.1 Item 1)
19 – Clutch (P/O PL 1.1 Item 1)
20 – Shaft (P/O PL 1.1 Item 1)
21 – Gear (37T) (P/O PL 1.1 Item 1)
22 – Bearing Sleeve (P/O PL 1.1 Item 1)
23 – Gear (80/45T) (P/O PL 1.1 Item 1)
24 – Shaft (P/O PL 1.1 Item 1)
25 – Gear (45T) (P/O PL 1.1 Item 1)
26 – Gear (35T) (P/O PL 1.1 Item 1)
27 – Bearing (P/O PL 1.1 Item 1)
28 – Gear (72T) (P/O PL 1.1 Item 1)
29 – Gear (144T) (P/O PL 1.1 Item 1)
30 – Bracket (P/O PL 1.1 Item 1)
31 – Gear (43T) (P/O PL 1.1 Item 1)
32 – Compression Spring (P/O PL 1.1
Item 1)
33 – IBT Auger Coupling (P/O PL 1.1
Item 1)
34 – Gear (53T) (P/O PL 1.1 Item 1)
35 – Bracket (Not Spared)
36 – Coupling (P/O PL 1.1 Item 1)
37 – Shaft (P/O PL 1.1 Item 1)
