January 2007
4-181
WorkCentre 7132
REP 16.10.2
Repairs/Adjustments
Reversion 4.0
REP 16.10.2 Elevator Belt Assembly
Parts List on PL 17.10
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Remove the Tray Guide. (Perform REP 16.5.2 up to Step 5.)
2. Remove the bracket. (Figure 1)
1. Remove the screw.
2. Loosen the screws (x2).
3. Remove the bracket.

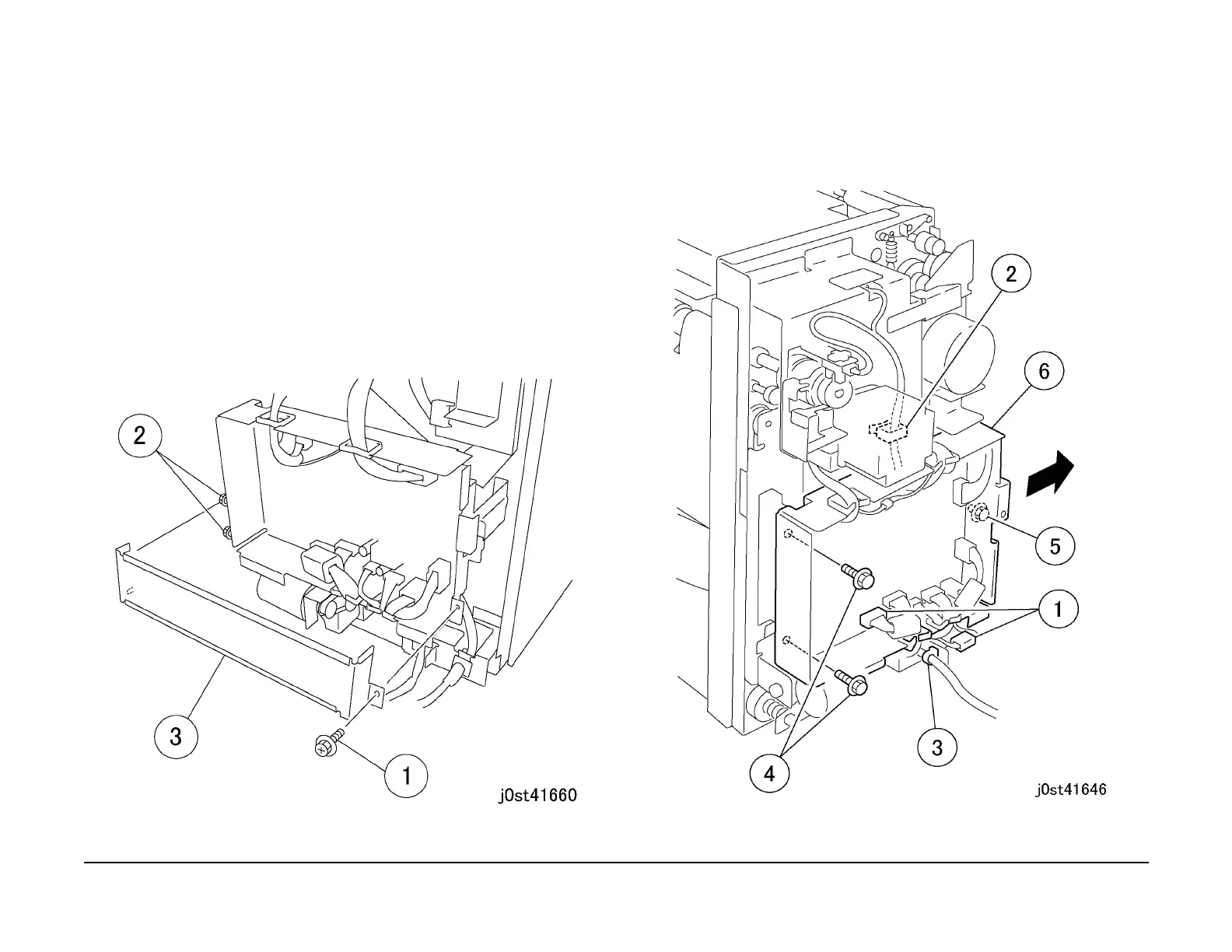

Figure 1 Removing the bracket
3. Slide the PWB Bracket sideways. (Figure 2)
1. Disconnect the connectors (x2).
2. Release the clamps (x2) to remove the wire.
3. Remove the clamp.
4. Remove the screws (x2).
5. Loosen the screw.
6. Slide the PWB Bracket in the direction of the arrow.
Figure 2 Moving the PWB Bracket
To Next Page
