Xerox WorkCentre 7132 Service Documentation

January 2007
4-125
WorkCentre 7132
REP 15.1.2
Repairs/Adjustments
Reversion 4.0
REP 15.1.2 DADF Platen Cushion
Parts List on PL 16.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
NOTE: The DADF Platen Cushion pasted on with Velcro Fastening.
1. Remove the DADF Platen Cushion. (Figure 1)
1. Peel off the DADF Platen Cushion from the Velcro Fastening at 10 locations.

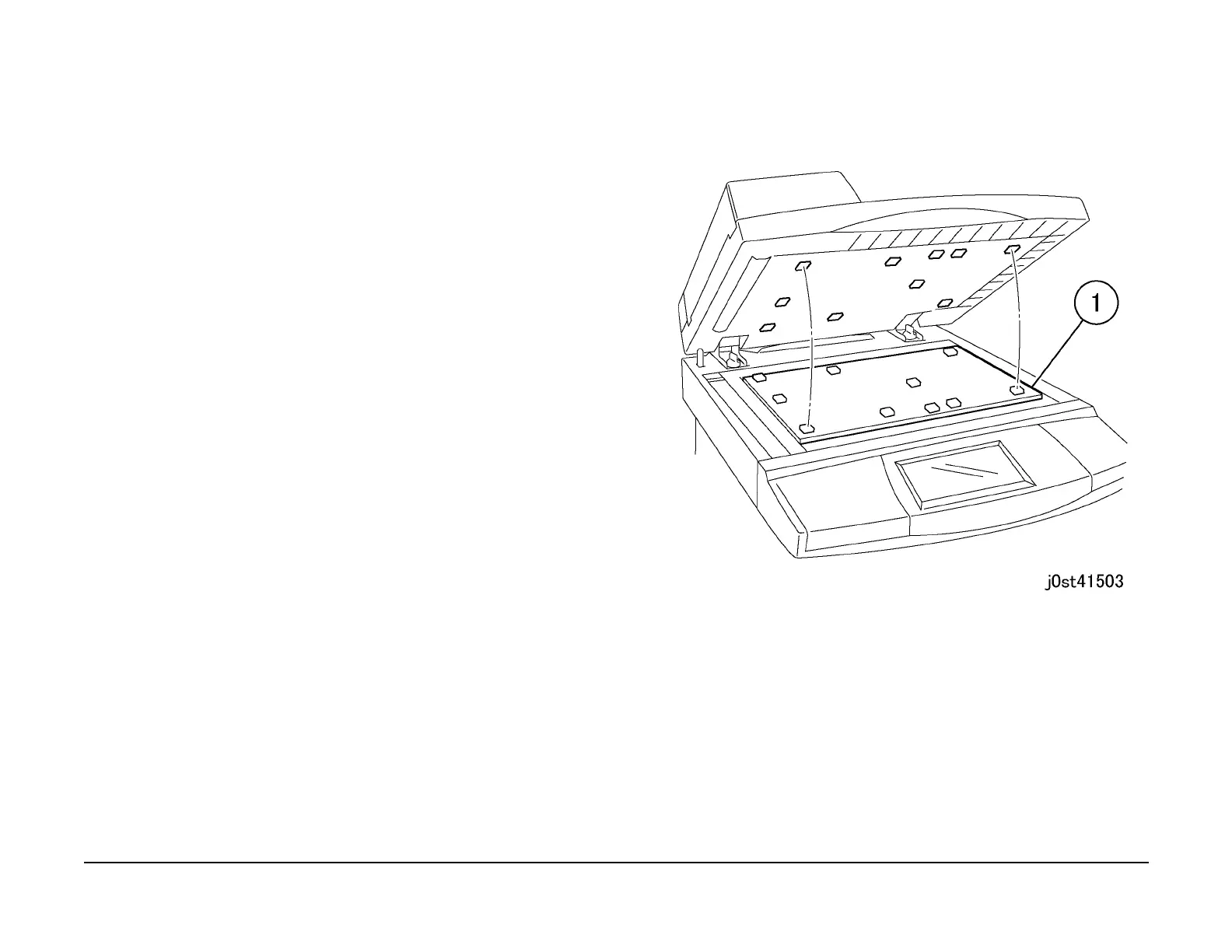

Figure 1 Removing the DADF Platen Cushion
2. Paste the DADF Platen Cushion. (Figure 2)
1. Place the DADF Platen Cushion on the Platen Glass.
2. Set up the gaps from the Registration Guide and Platen Guide.
3. Slowly lower the DADF and press on to the Platen Cushion.
