January 2007
4-124
WorkCentre 7132
REP 15.1.1
Reversion 4.0
Repairs/Adjustments

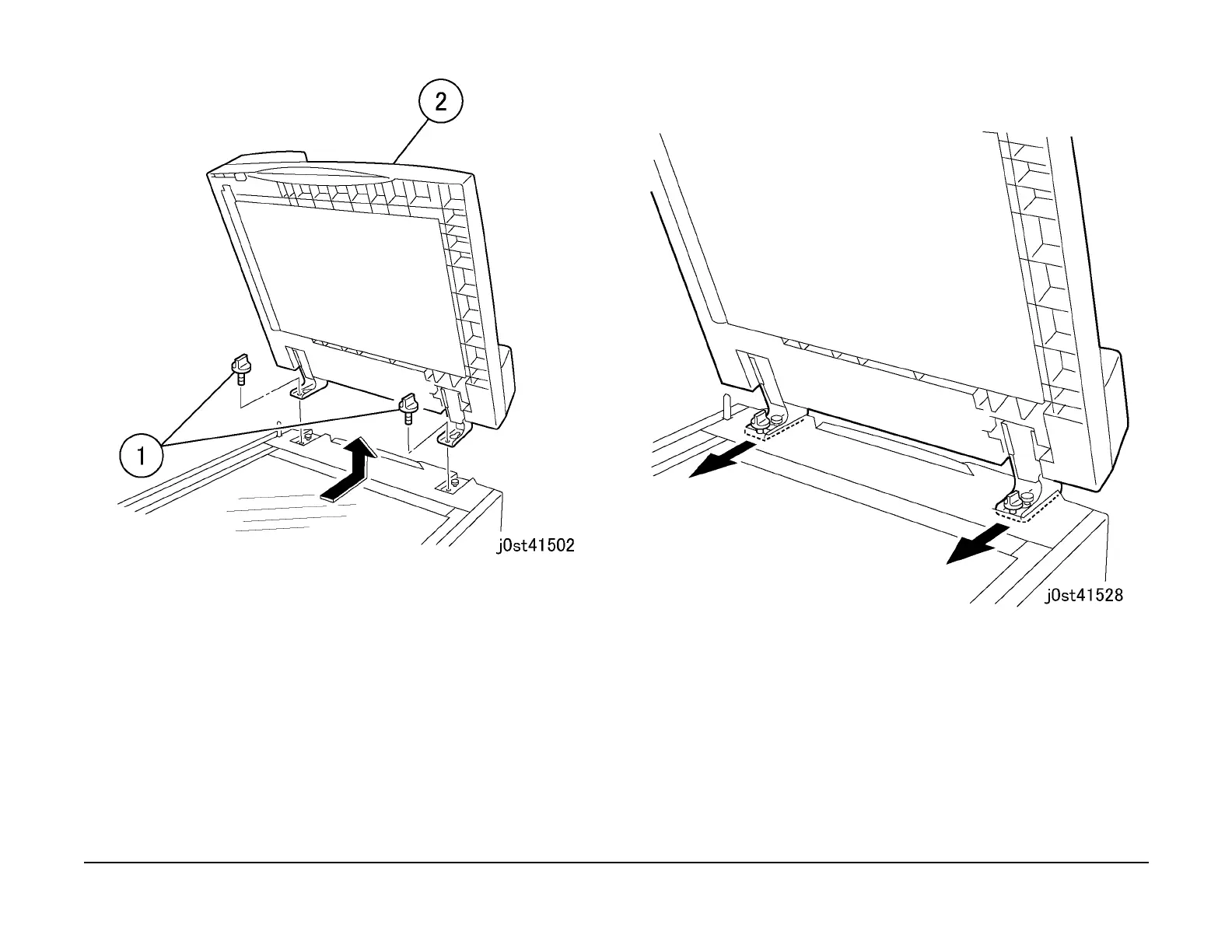

Figure 2 Removing the DADF
Replacement
1. When installing the DADF, push the DADF to the front, then secure. (Figure 3)
Figure 3 Installing the DADF
